CAME BXL04AGS

Page 17 - Manual FA01947-EN - 03/2023 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions
M N24 0
10 11 E
A
1
2
1

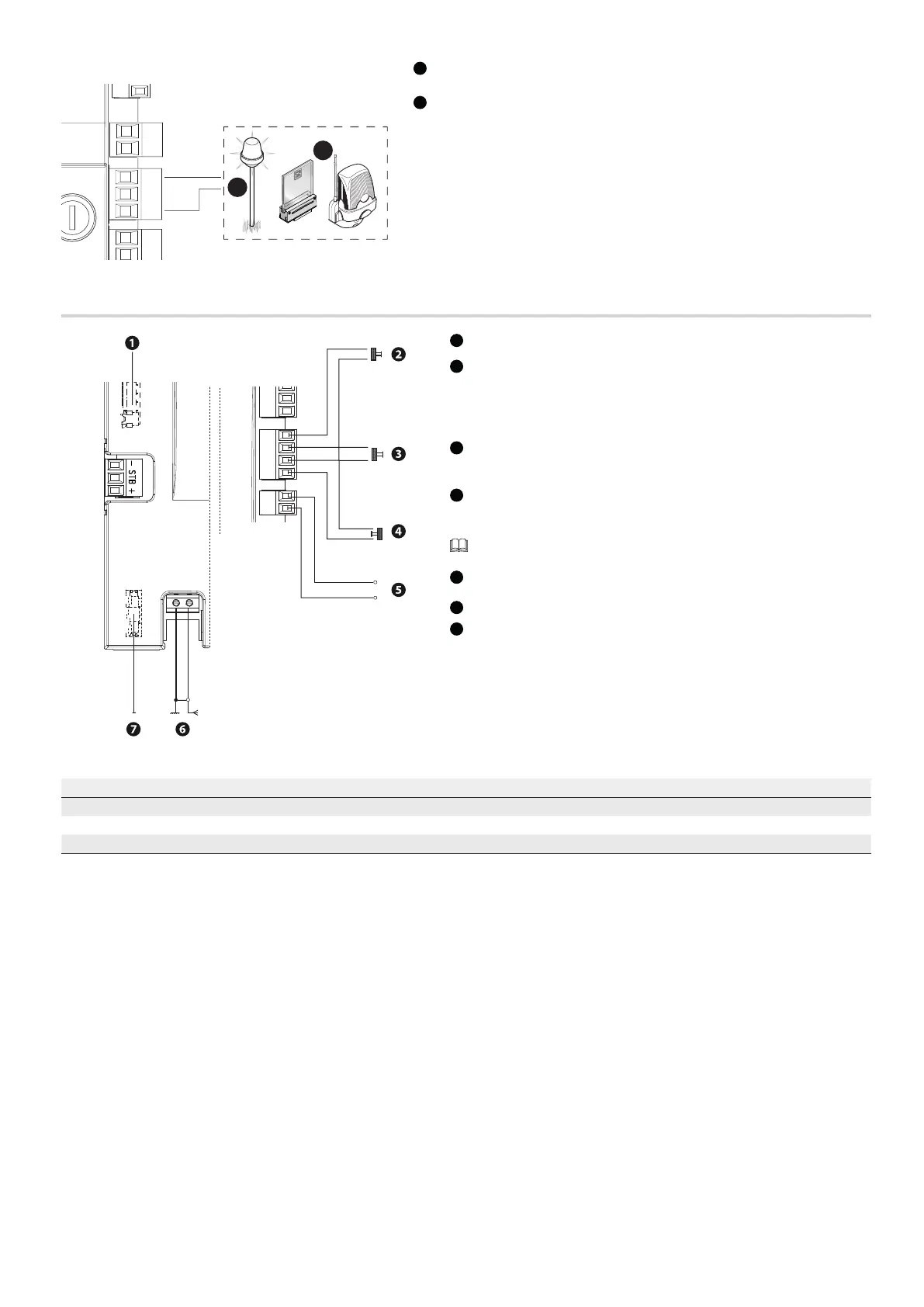

Additional light
It increases the light in the manoeuvring area.
2
Flashing beacon
It flashes when the operator opens and closes.
Command and control devices
A B 1 2 3P 7
10 T
S
2
1
Component for R800 card
2
Control device (NO contact)
OPEN-CLOSE-INVERT function from control device (NO contact).
Alternatively, when programming, you can activate the OPEN-STOP-CLOSE-STOP
function.
3
Control device (NO contact)
PARTIAL OPENING function from command device (NO contact).
4
STOP button (NC contact)
Stop the gate and exclude automatic closing. Use a control device to resume movement.
If the contact is not used, it must be deactivated during programming.
5
Keypad selector
6
Antenna with RG58 cable
7
Connector for plug-in radio frequency card (AF)
Maximum capacity of contacts
Device Output Power supply (V) Power (W)
Accessories 10 - 11 24 20
Additional light 10 - E 24 25
Flashing beacon 10 - E 24 25
