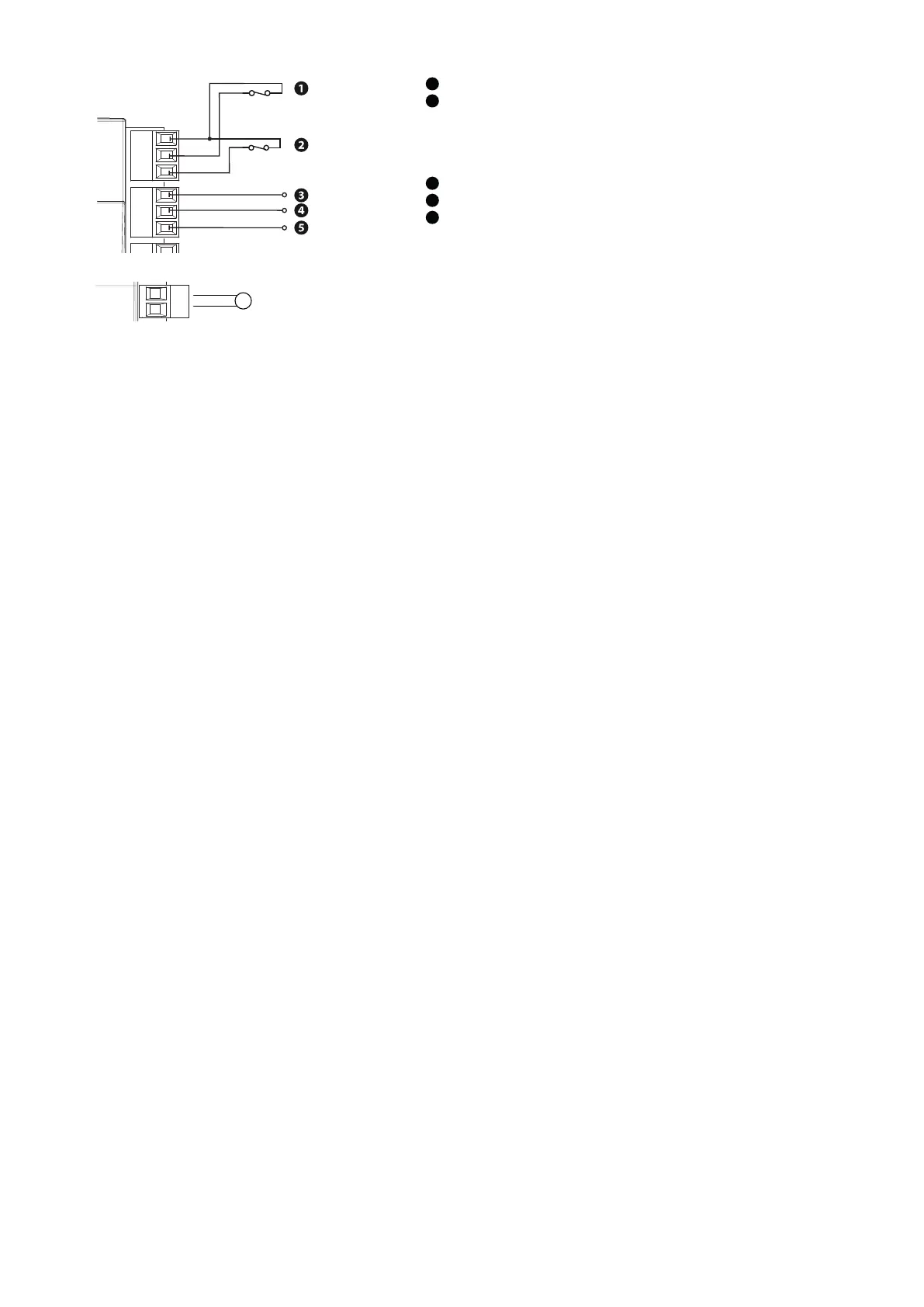

Connecting the gearmotor with encoder and limit switches
C
X
+ E -
FC FA F
1
Opening limit-switch (NC contact)
2
Closing limit-switch (NC contact)
Encoder
3
Green cable
4
Brown cable
5
White cable
M N
M
24 V DC gearmotor
