CAME BXL04AGS

Page 8 - Manual FA01947-EN - 03/2023 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

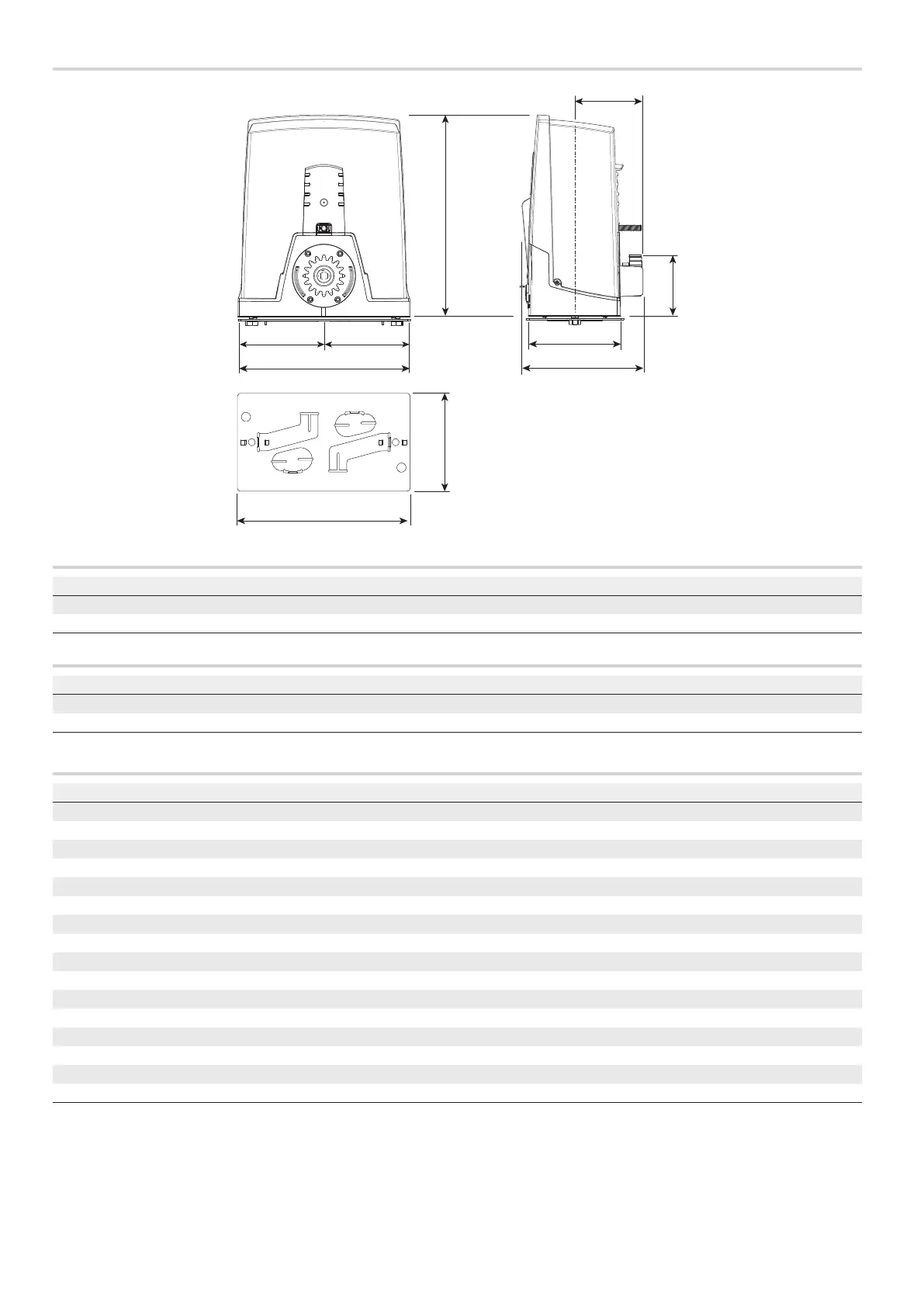

Size
117
211
349
105
160
300
170
298
149 149
Usage limitations
MODELS BXL04AGS BXL04ALS
Maximum gate-leaf length (m) 10 10
Maximum gate-leaf weight (kg) 400 400
Fuse table
MODELS BXL04AGS BXL04ALS
Line fuse 1.6 A-F -
Accessory fuse 2 A-F -
Technical data
MODELS BXL04AGS BXL04ALS
Power supply (V - 50/60 Hz) 230 AC 230 AC
Motor power supply (V) 24 DC 24 DC
Standby consumption (W) 5,5 5,5
Power (W) 170 170
Maximum current draw (A) 7 7
Colour RAL 7024 RAL 7024
Operating temperature (°C) -20 ÷ +55 -20 ÷ +55
Thrust (N) 350 350
Manoeuvring speed (m/min) 12 12
Duty cycle 50 50
Pinion module 44
Protection rating (IP) 44 44
Insulation class I-
Weight (kg) 7,7 -
Storage temperature (°C) * -20 ÷ +70 -
Average life (hours) ** 120000 -
(*) Before installing the product, keep it at room temperature where it has previously been stored or transported at a very high or very low temperature.
(**) The average product life is a purely indicative estimate. It applies to compliant usage, installation and maintenance conditions. It is also influenced by other
factors, such as climatic and environmental conditions.
