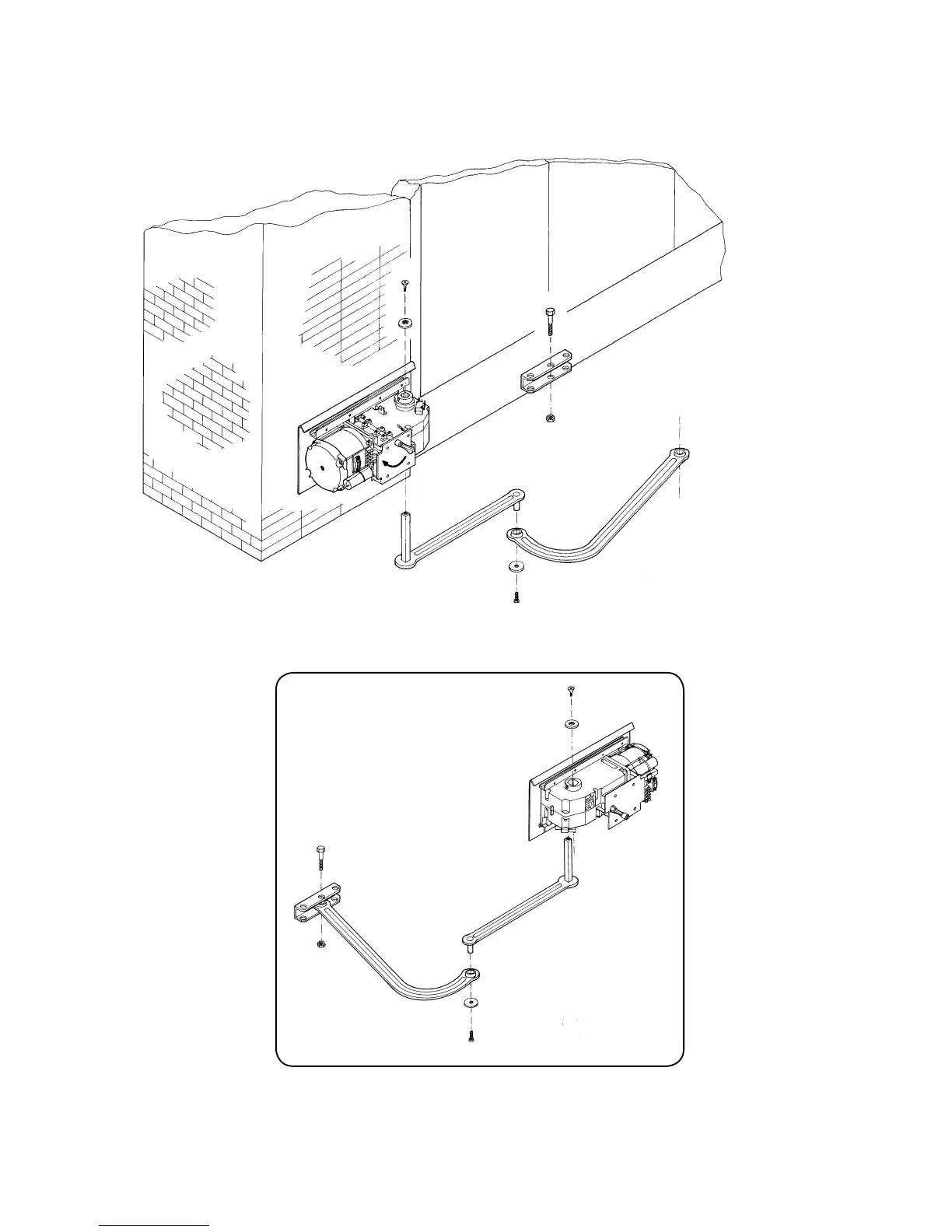

Fig. 2
- Insert the straight semi-arm into the motor shaft. Apply the fl ared washer, the M6x20 screw and lock the semi-arm using the two
grub screws.
Join and secure the two arms using the washer and M8x16 screw. Release the motor (see p. 7) and secure the curved semi-arm to
the “A” bracket using the M12X50 screw and the M12 nut making sure it runs freely. For right-hand application see fi g. 2.
