Secure the stop using the screw (j).

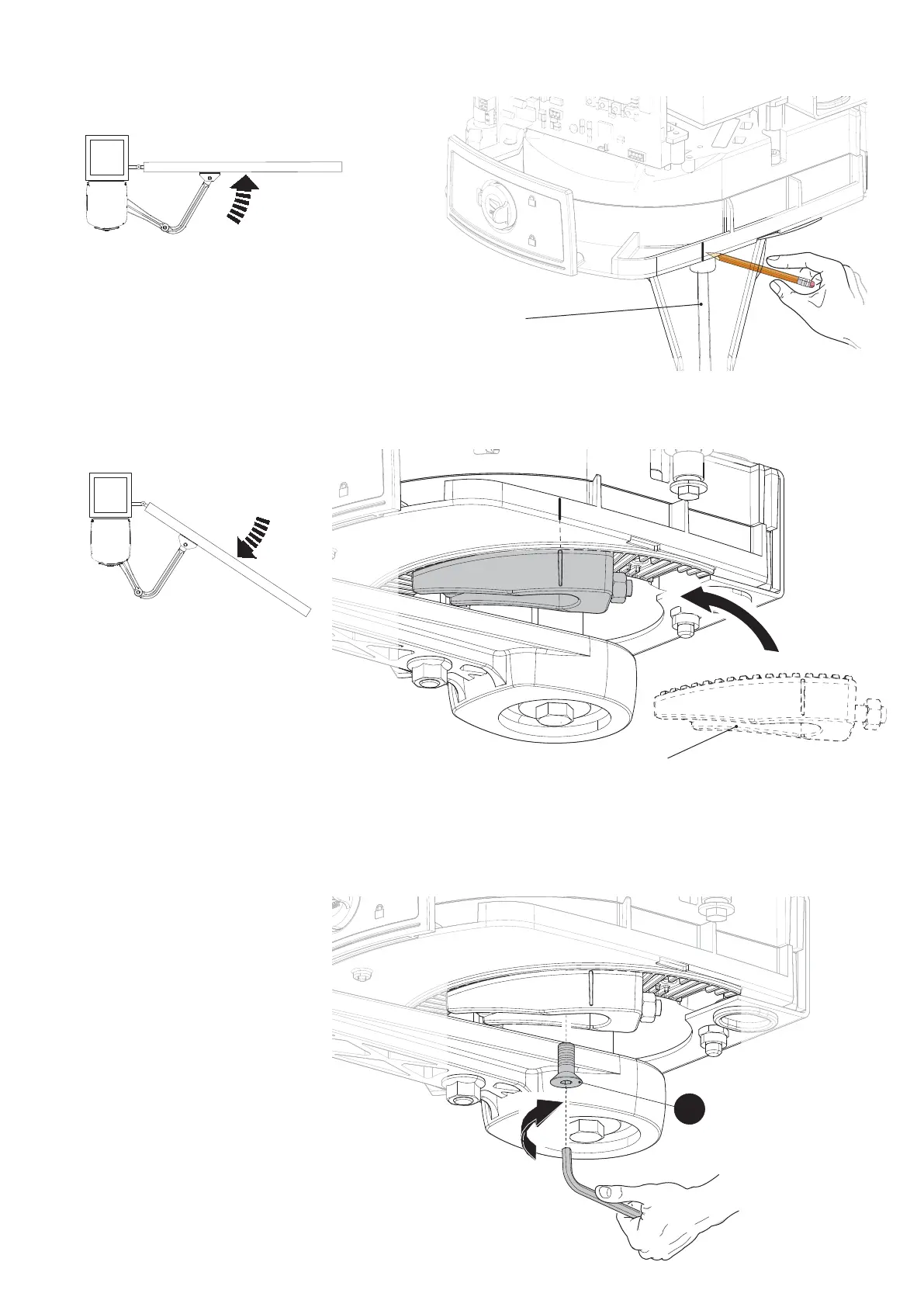

Mechanical end stop
Centre of the arm
Open the leaf manually. Insert the mechanical stop as shown.
During closing.
Mark the casing by the centre of the arm.
