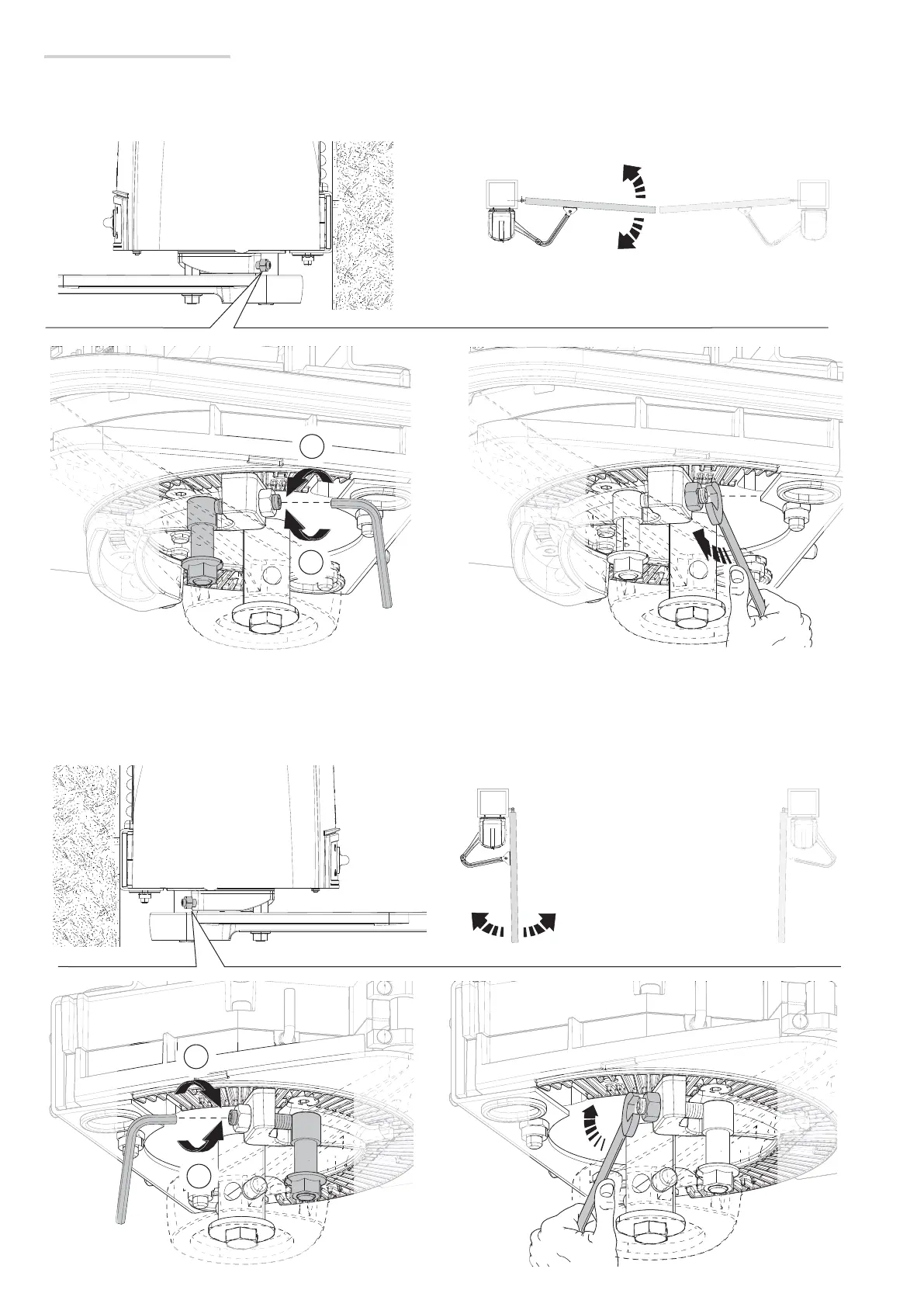

Similarly, adjust the opening end run using the anchor on the other stop (see drawing).
Determining the end run points
For left-hand gearmotor (internal view).
With the gearmotor released and the leaf closed, adjust the closing end run anchor, turning it clockwise and anti-clockwise. Secure the anchor with the nut
(see drawing).
