For right-hand gearmotor (internal view).

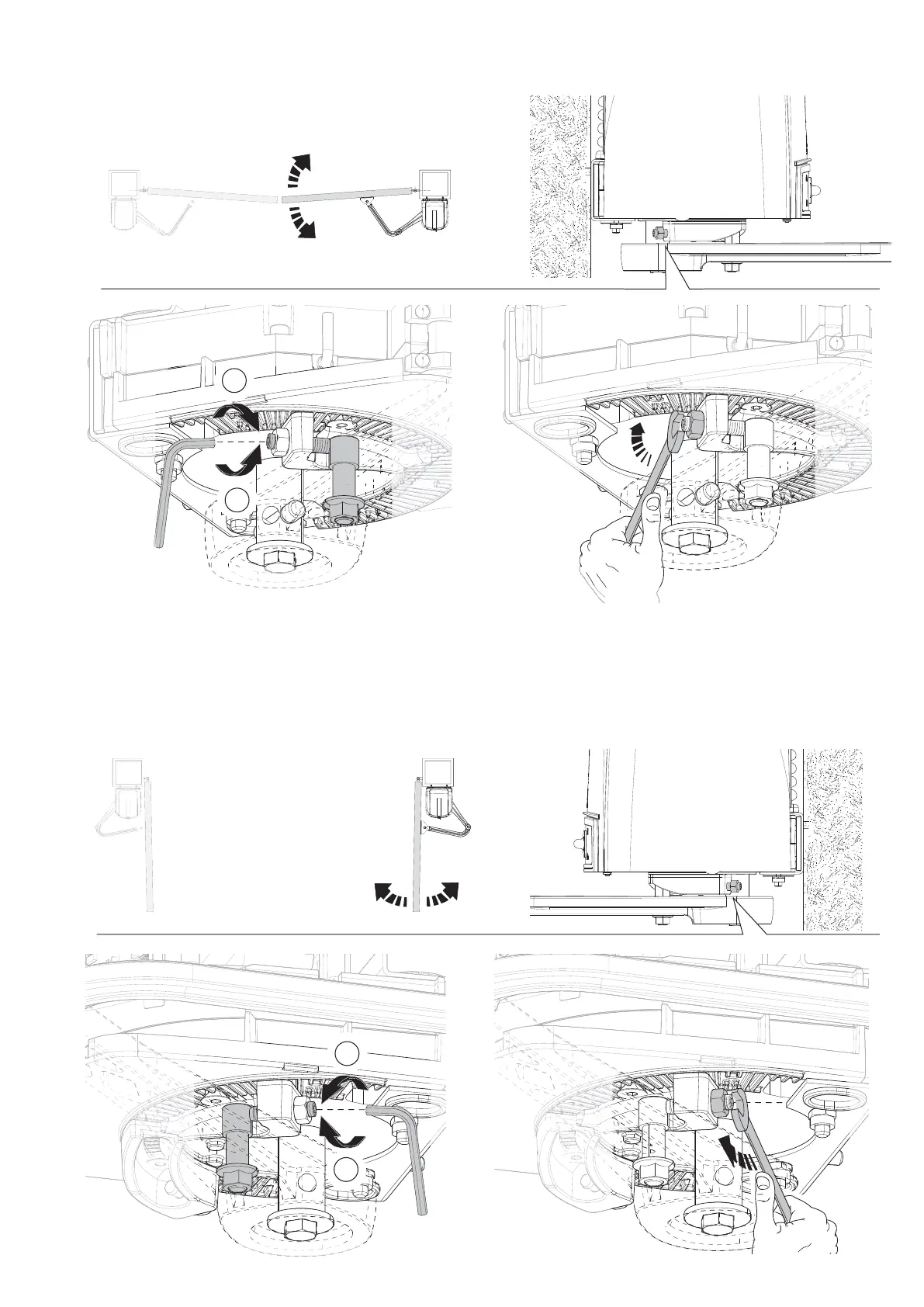

With the gearmotor released and the leaf closed, adjust the closing end run anchor, turning it clockwise and anti-clockwise. Secure the anchor with the nut (see
drawing).
Similarly, adjust the opening end run using the anchor on the other stop (see drawing).
