120 <
47,5
225
B
173
81,5
40
120
100
60
18
Page 28 - Manual code: 119DW01EN vers. 5 01/2017 © CAME S.p.A. - The data and information provided in this manual are subject to change at any time without prior notice by CAME S.p.A.
INSTALLING AND CONNECTIONS FOR OUTER OPENING
Following, are the only things that change compared to a standard installation:

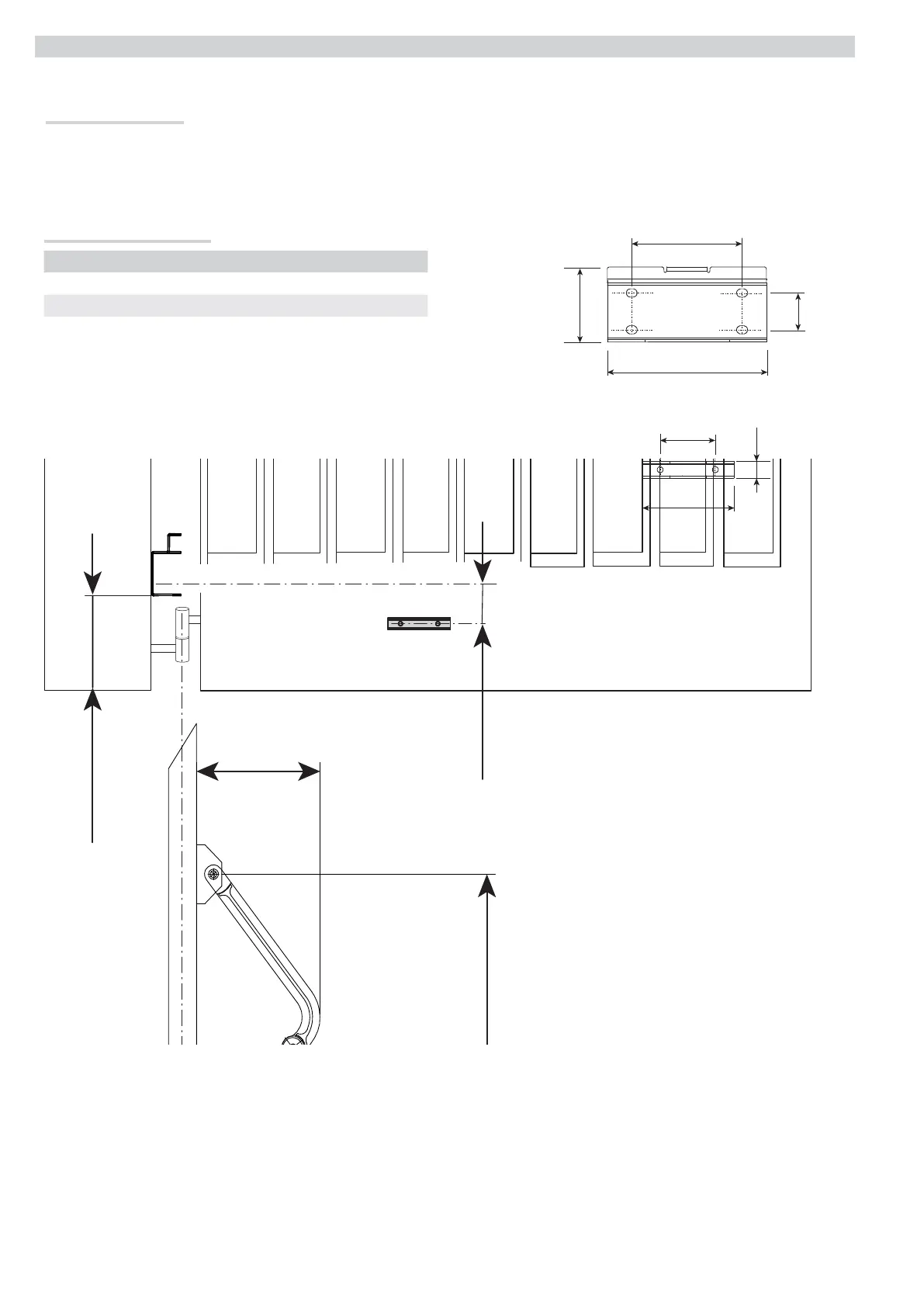

Fastening the brackets
Establish where you will fit the gate brace and measure where the gate-post brace will fit. Make sure to respect the quotas shown in the drawing and
table.
Application dimension (mm)
Leaf opening arc (°) A C MAX B
90° 150 60 420
110° 150 60 380
