Page 29 - Manual code: 119DW01EN vers. 5 2016/05 © CAME S.p.A. - The data and information provided in this manual are subject to change at any time without prior notice by CAME S.p.A.
Secure the stop using the screw .
Mechanical end stop
Centre of the arm

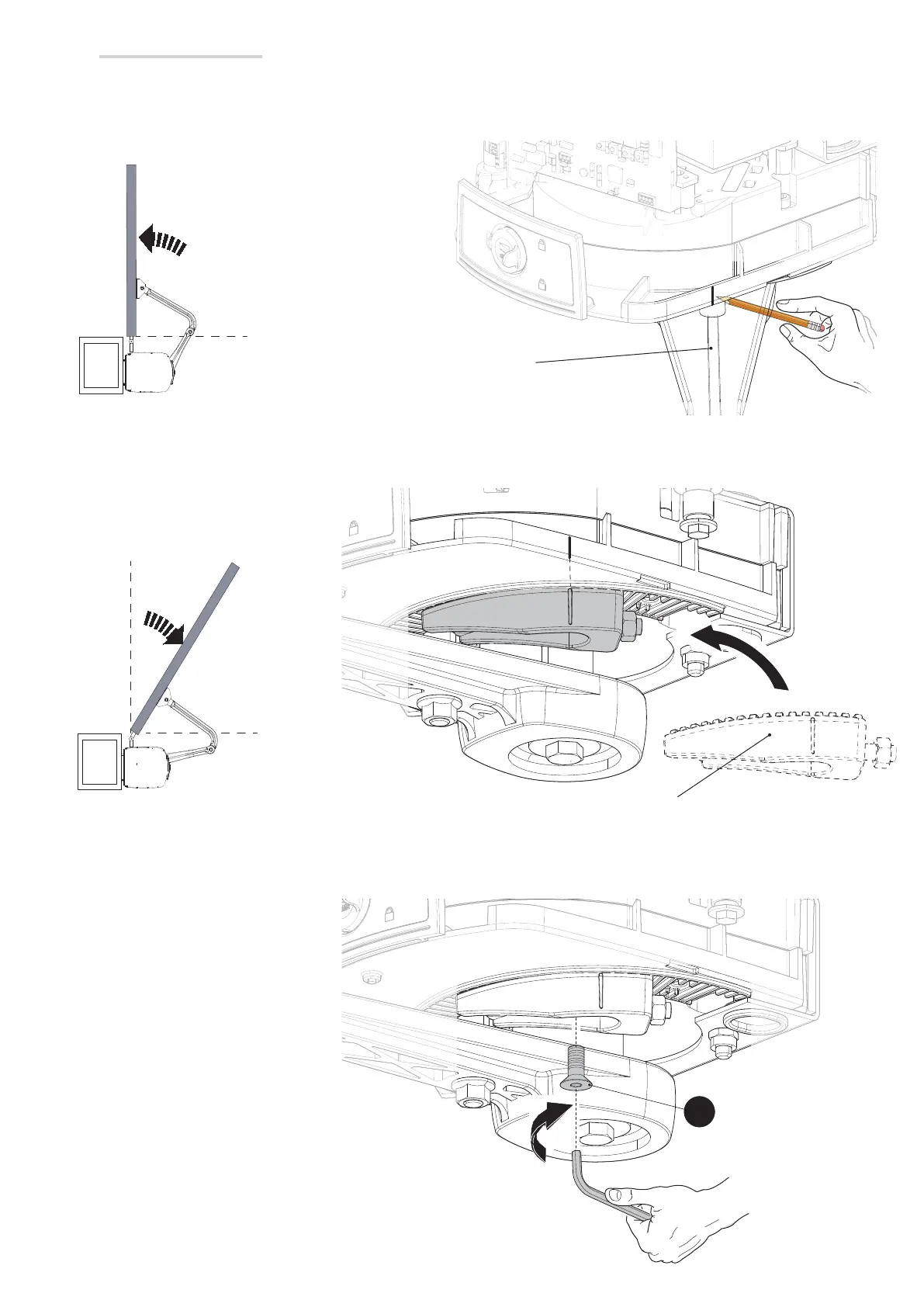

Securing mechanical stops
⚠
Fit end runs if there are no end stops.
Unlock the gearmotor.
When opening: open the leaf completely. Mark the casing by the centre of the arm.
Close the leaf manually Insert the mechanical stop as shown. The mark on the casing must match the groove on the end run.
