Page 30 - Manual code: 119DW01EN vers. 5 01/2017 © CAME S.p.A. - The data and information provided in this manual are subject to change at any time without prior notice by CAME S.p.A.

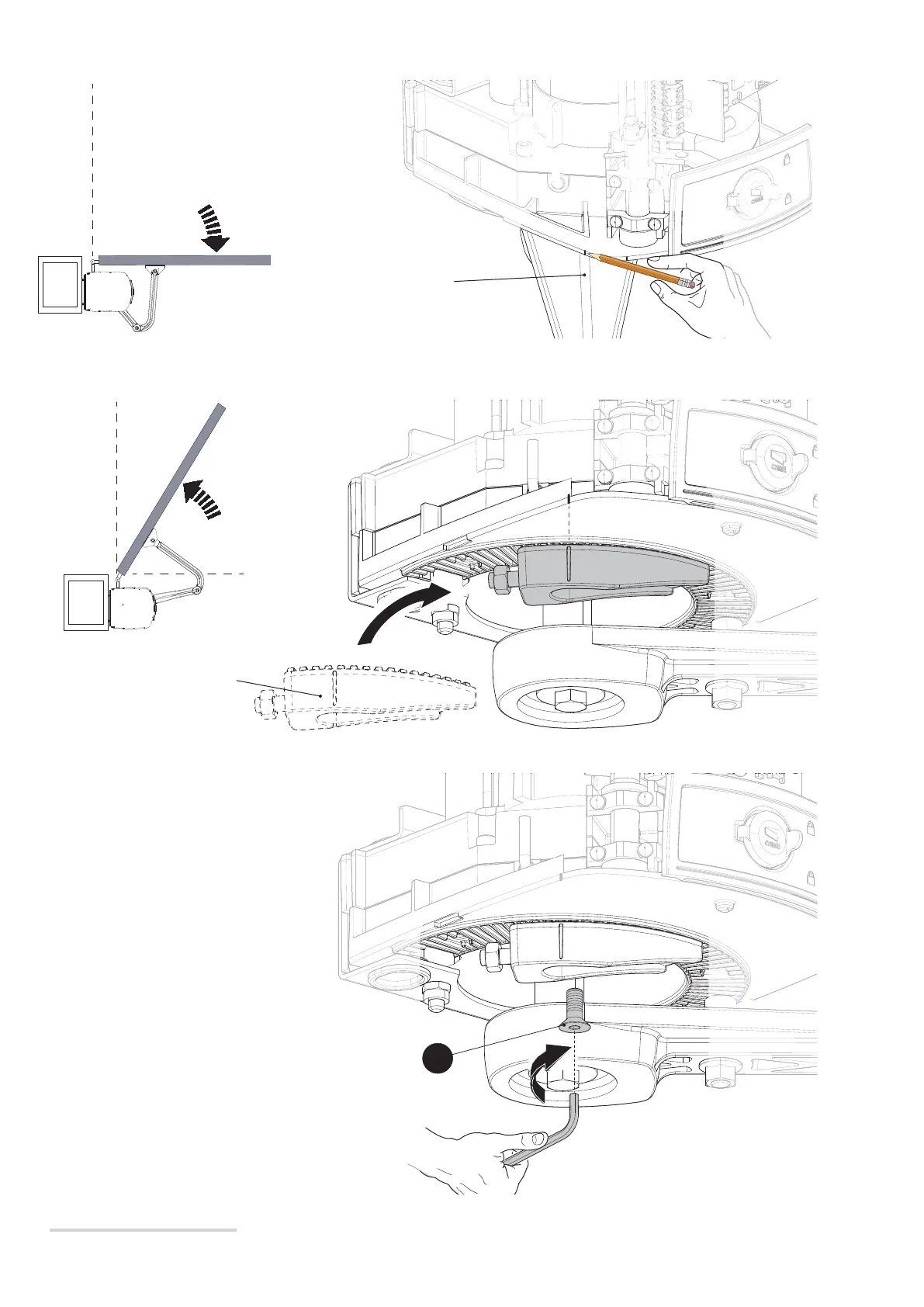

Open the leaf manually. Insert the mechanical stop as shown.

When closing: mark the casing by the centre of the arm.

Mechanical end stop

Centre of the arm

Secure the stop using the screw

󱤗.

Determining the end run points

Please refer to the chapter on opening inwards.
