Page 8 - Manual code: 119DW01EN vers. 5 01/2017 © CAME S.p.A. - The data and information provided in this manual are subject to change at any time without prior notice by CAME S.p.A.

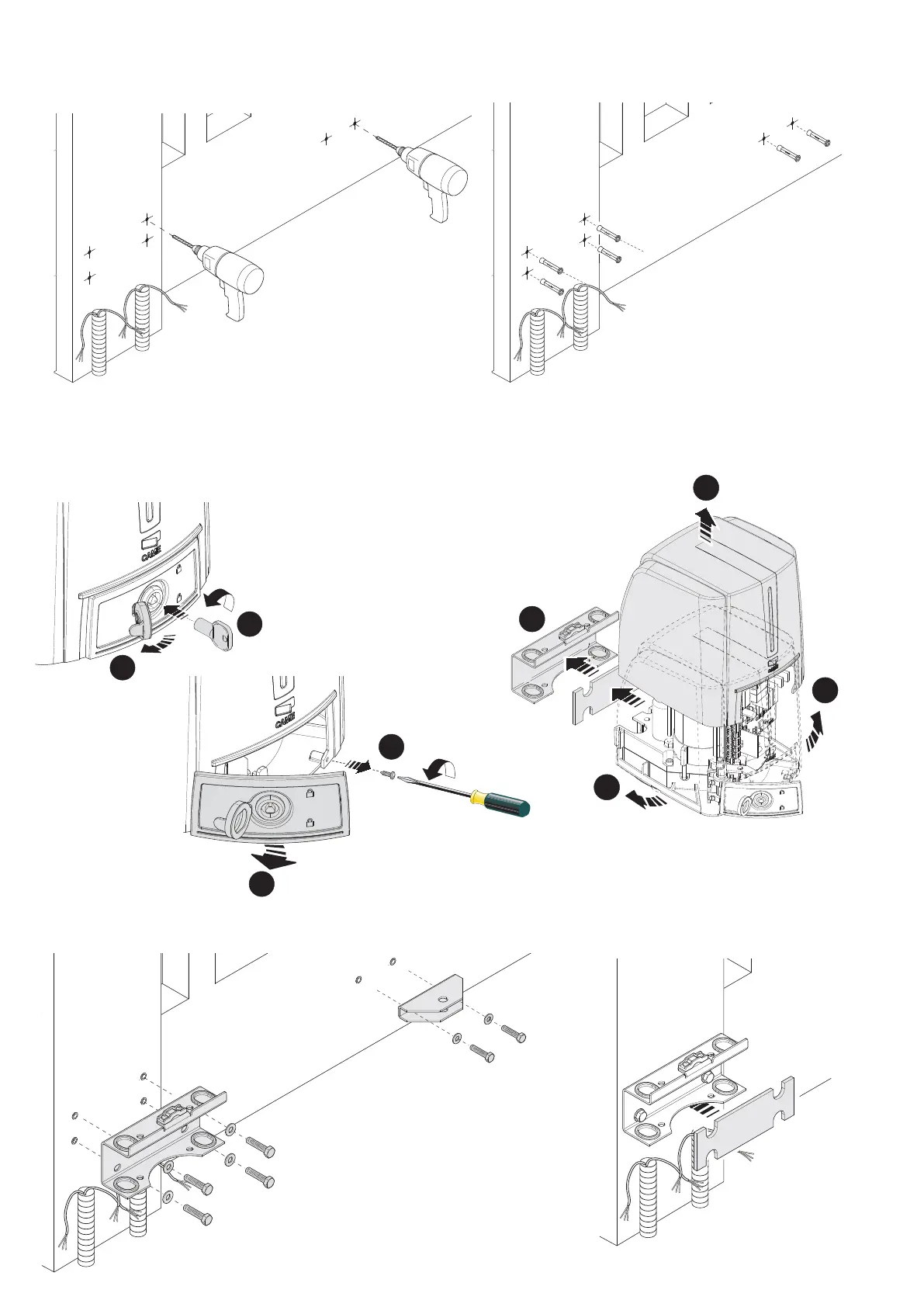

Mark the fixing points on the pillar bracket and gate bracket. The measurements of the distance between the holes in the brackets are indicated in the dimensions
paragraph.
Drill the fixing points, insert the anchors or use suitable inserts to secure the brackets.
N.B. the drawings are mere examples. It is up to the installer to choose the most suitable solution depending on leaf type and thickness.
Before installing the operator, remove the cover from the gearmotor. Remove the protective lock cap from the release hatch, insert the key in the lock and turn it
().
Open the hatch and unscrew the screw securing the cover to the gearmotor (
).
Lift the cover by pulling gently on the side (
).
Remove the pillar bracket from the gearmotor (
).
Secure the brackets with suitable screws. Insert the rubber shim into the pillar bracket.
