a
b
d
e
f
g
h
f
g
i
h
c
Page 9 - Manual code: 119DW01EN vers. 5 2016/05 © CAME S.p.A. - The data and information provided in this manual are subject to change at any time without prior notice by CAME S.p.A.

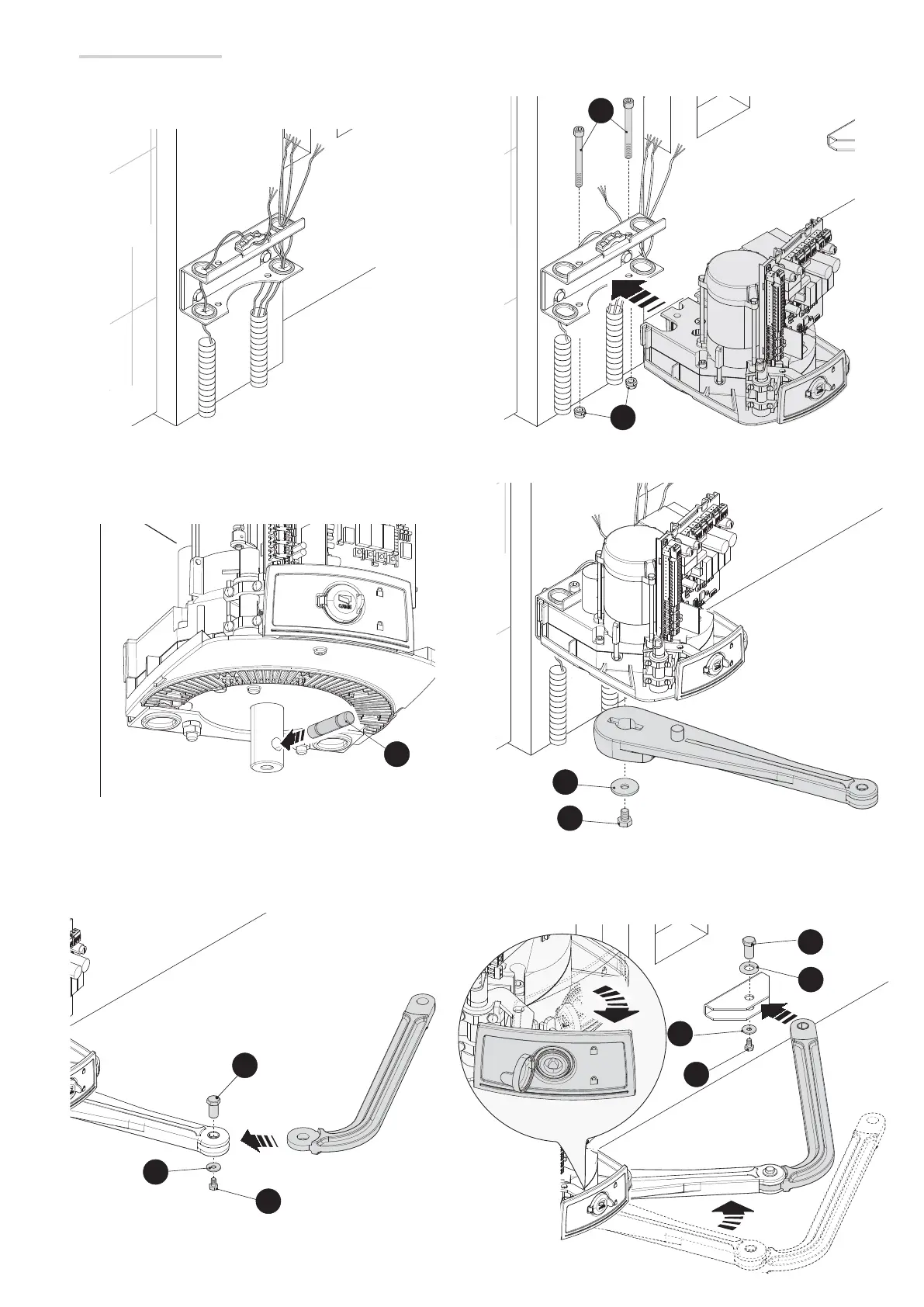

Securing the gearmotor
Prepare the electrical cables needed for the connections, passing them through the cable glands and securing them to the U-bolt on the pillar mounting
bracket. Insert the gearmotor into the pillar bracket and secure it with screws and nuts (a b).
Insert the plug (c) into the hole in the gearmotor shaft. Secure the transmission arm to the shaft with the slow shaft washer (d) and the screw (e).
Secure the drive arm to the transmission arm using the pin, the screw and the washer ().
Release the gearmotor, secure the drive arm to the gate bracket as shown in the drawing ().
