N.B.: If the cable length differs from that specified in the table, then you must determine the proper cable diameter in the basis
of the actual power draw by the connected devices and depending on the standards specified in CEI EN 60204-1.
For connections that require several, sequential loads, the sizes given on the table must be re-evaluated based on actual power
draw and distances. When connecting products that are not described in this manual, please refer to the instructions that come
with said products.
5.3 Cable list and minimum thickness
Connections Type of cable Length of cable 1 < 10 m Leng. cable 10 < 20 m Leng. cable 20 < 30 m
Control panel power supply 230V
FROR CEI
20-22
CEI EN
50267-2-1
3G 1,5 mm
2
3G 2,5 mm
2
3G 4 mm
2
Motor power supply 24V 2 x 1 mm
2
2 x 1,5 mm
2
2 x 2,5 mm
2
Flashing light 2 x 0,5 mm
2
2 x 1 mm
2
2 x 1,5 mm
2
Photocell transmitters 2 x 0,5 mm
2
2 x 0.5 mm
2
2 x 0,5 mm
2
Photocell receivers 4 x 0,5 mm
2
4 x 0,5 mm
2
4 x 0,5 mm
2
Accessories power supply 2 x 0,5 mm
2
2 x 0,5 mm
2
2 x 1 mm
2
Control and safety devices 2 x 0,5 mm
2
2 x 0,5 mm
2
2 x 0,5 mm
2
Antenna connection RG58 max. 10 m

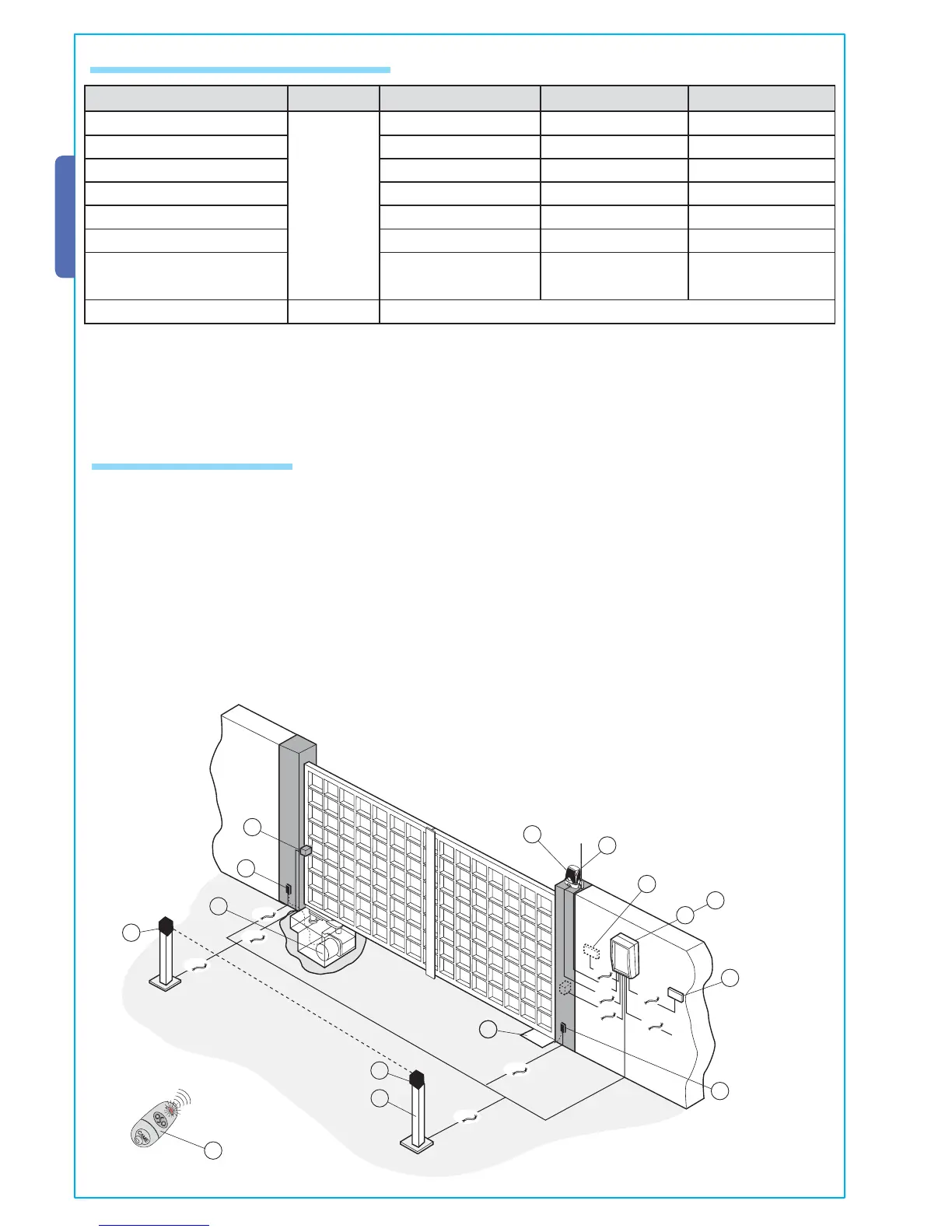

1) FROG unit
2) Control panel
3) Safety photocells
4) Radio receiver
5) Key-switch selector
6) Antenna
7) Command push-buthon panel
8) Flashing light
9) Photocell column
10) Shunt box
11) Transmitter
5.4 Standard installation
