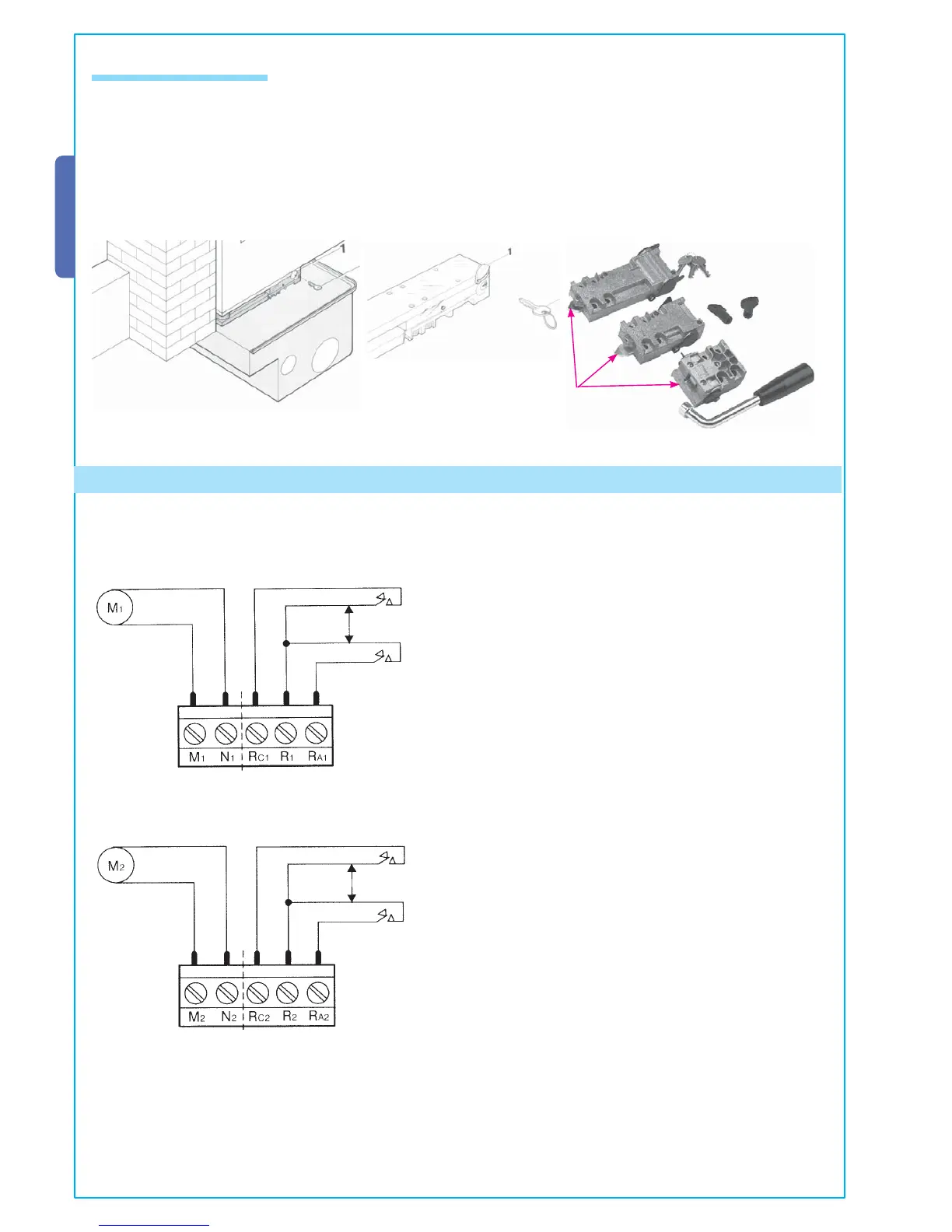

5.7 Manual release
- In emergencies (i.e. power outages) the release mechanisms allow the gate to hook back up when closing.
- You may choose among three different release models: model A4366 with customised key (Fig. 5-A), model A4365 with tri-lobed
key and model A4364 with lever key (Fig. 5-B). We suggest greasing the release’s hook-up key (Fig. 5-B – part. 3); Consult the
documentation pertinent to the relative items for the release procedure.
N. B.: release operations are to be carried out during emergency procedures and with the power disconnected.
3
Fig. 5
Fig. 5-A
Fig. 5-B
A4366
A4364
A4365
R1-Ra1
Motor 1 opening brake microswitch.
R1-Rc1
Motor 1 closing brake microswitch.
R2-Ra2
Motor 2 opening brake microswitch.
R2-Rc2
Motor 2 closing brake microswitch.
- We suggest making the gearmotor cable connections in shunt boxes;
For further information concerning the functions, see the technical documentation for the ZL19 N – ZL 170 N control panels.
6 Connecting to the control panel
Control panel terminals
brown
brown
blue
Motor 1
Motor 2
Control panel terminals
brown
brown
blue
