0.2 03/2010
© CAME cancelli automatici s.p.a. -
The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

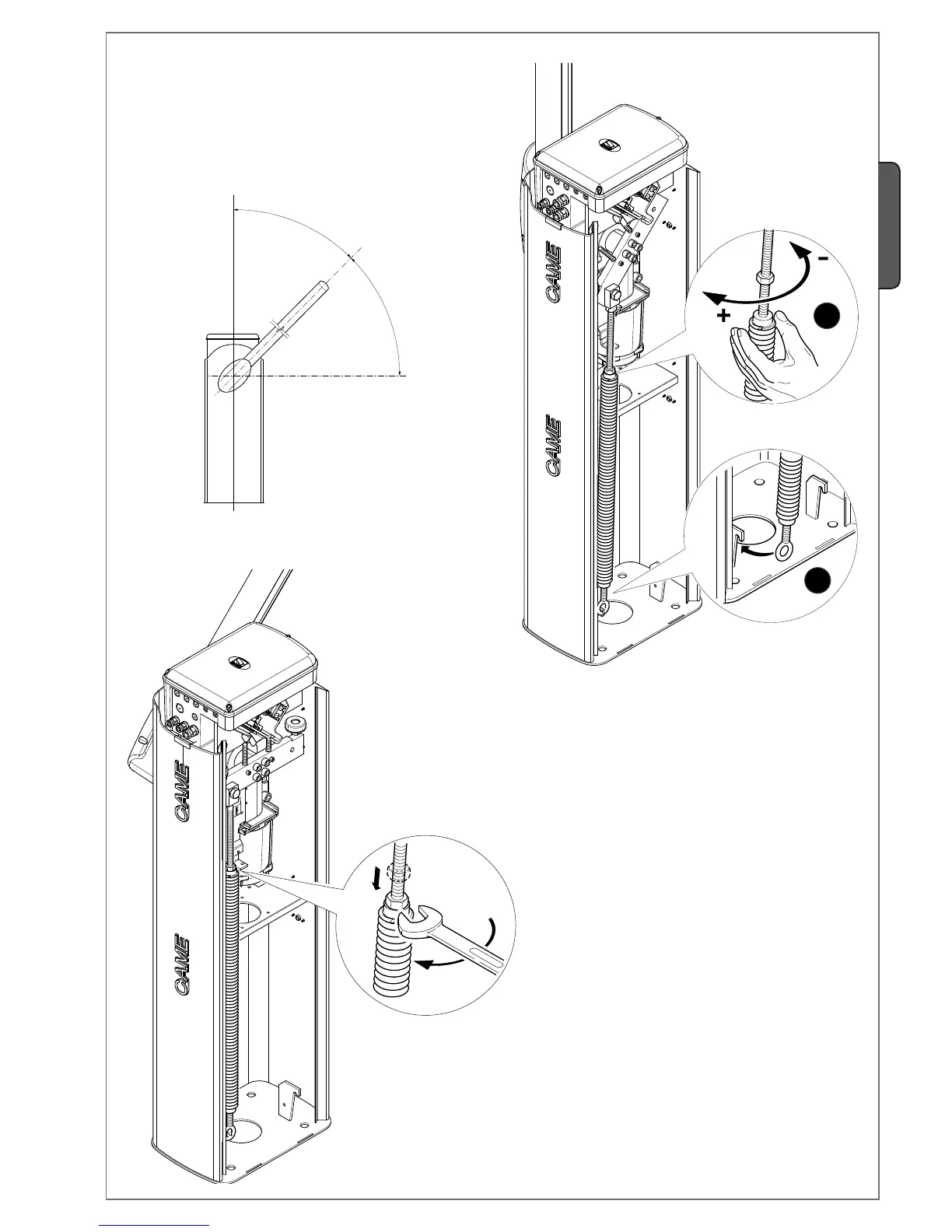

- Hook the tie rod to the anchoring bracket, release the gearmotor and manually
turn the spring to increase or decrease traction until the bar rests at 45°.
- Tighten the blocking nut and refasten the gearmotor.
Note: make sure the spring functions properly:
- the spring is loose when the bar is in the vertical position (at rest);
- the spring is tight when the bar is in the horizontal position (tense).
- Perform any electrical connections to the control panel (see electrical
connections paragraph).
