CAME GARD series User Manual

- pag. - pag.
- pag. - pag.
- pag.
1010
1010
10
- english - - english -
- english - - english -
- english -

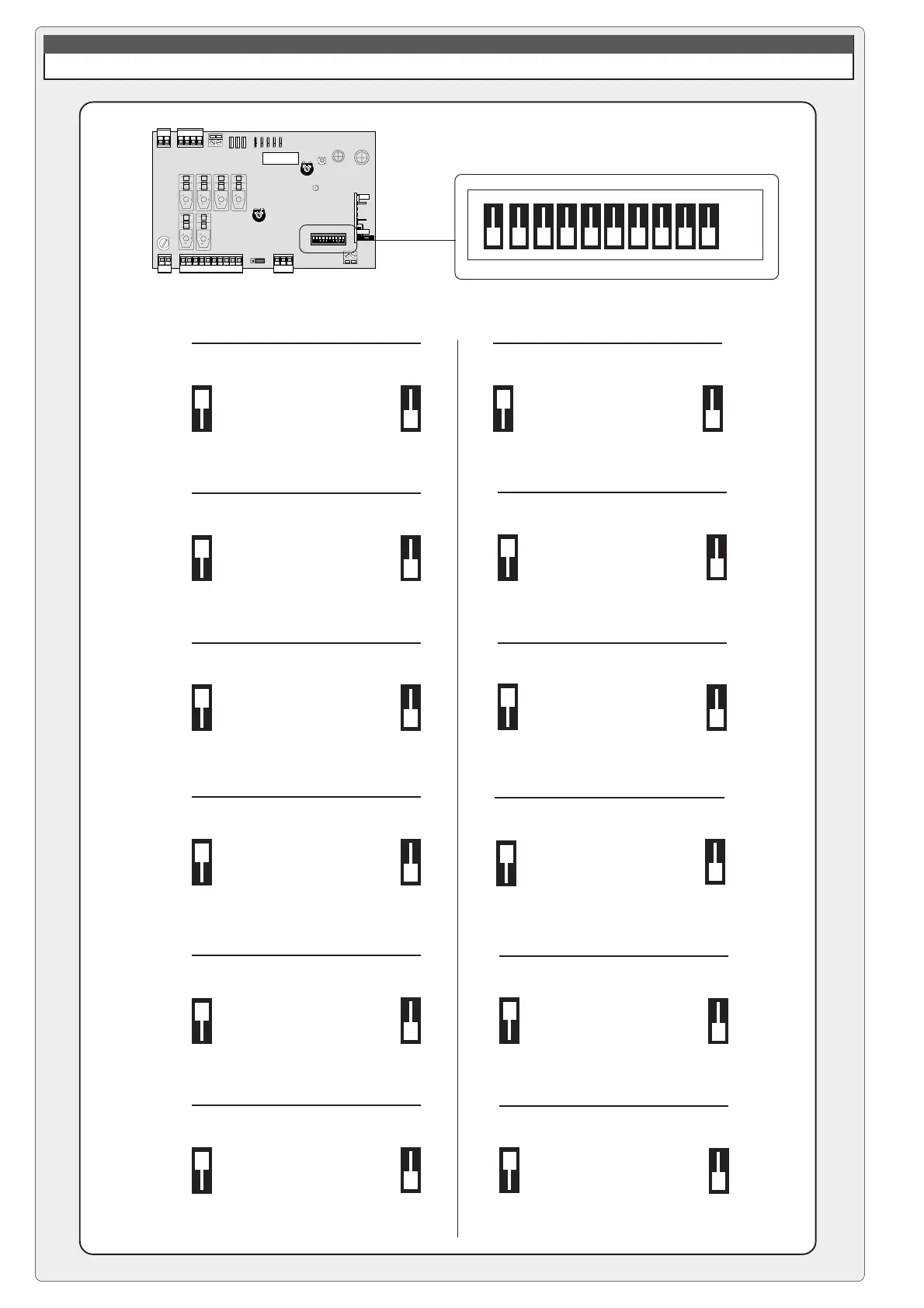

SELECTION FUNCTION
ZL37B CONTROL PANEL
1 2 3 4 5 6 7 8 9 10
ON
OFF
5 = funcion
flashing light en opening
and closing
ON OFF
activated deactivated
5
5
6 = function
obstacle detection
(with motor at end of
travel)
ON OFF
activated deactivated
6
6
2 = funcion
"open-close-inversion"
by radio remote control
(when receiver is installed)
ON OFF
deactivated activated
2
2
2 = function
"open only"
by radio remote control
(when receiver is installed)
ON OFF
activated deactivated
2
2
3 = funcion
24V output during
movement and in the closed
position
ON OFF
activated deactivated
3
3
3 = function
24V output during
movement
ON OFF
deactivated activated
3
3
9
9 = function
total stop
ON OFF
deactivated activated
9
- connect safety device
across 1-2
8
8 = function
immediate closure
8
- connect safety device
across 2-C5;
- deactivate automatic
closure (1 OFF)
7
7 = function
slave
ON OFF
activated deactivated
7
10
10 = function
increase braking action on
barrier bar
ON OFF
activated deactivated
10
4 = funcion
"human presence"
ON OFF
activated deactivated
4
4
1 = function
automatic closure
ON OFF
activated deactivated
1
1
- deactivated immedia-
te closure (8 ON)
2
1 345678910
0
Rall.
Vel.
74
ON OFF
deactivated activated

CAME GARD series Specifications

General

Protection Rating	IP54
Input Voltage	230 V AC
Power Supply	230V AC
Motor Power	300W
Output Voltage	24V DC
Maximum Current	5A
Operating Temperature	-20°C to +55°C
