CAME OPS series User Manual

1
2
1
2

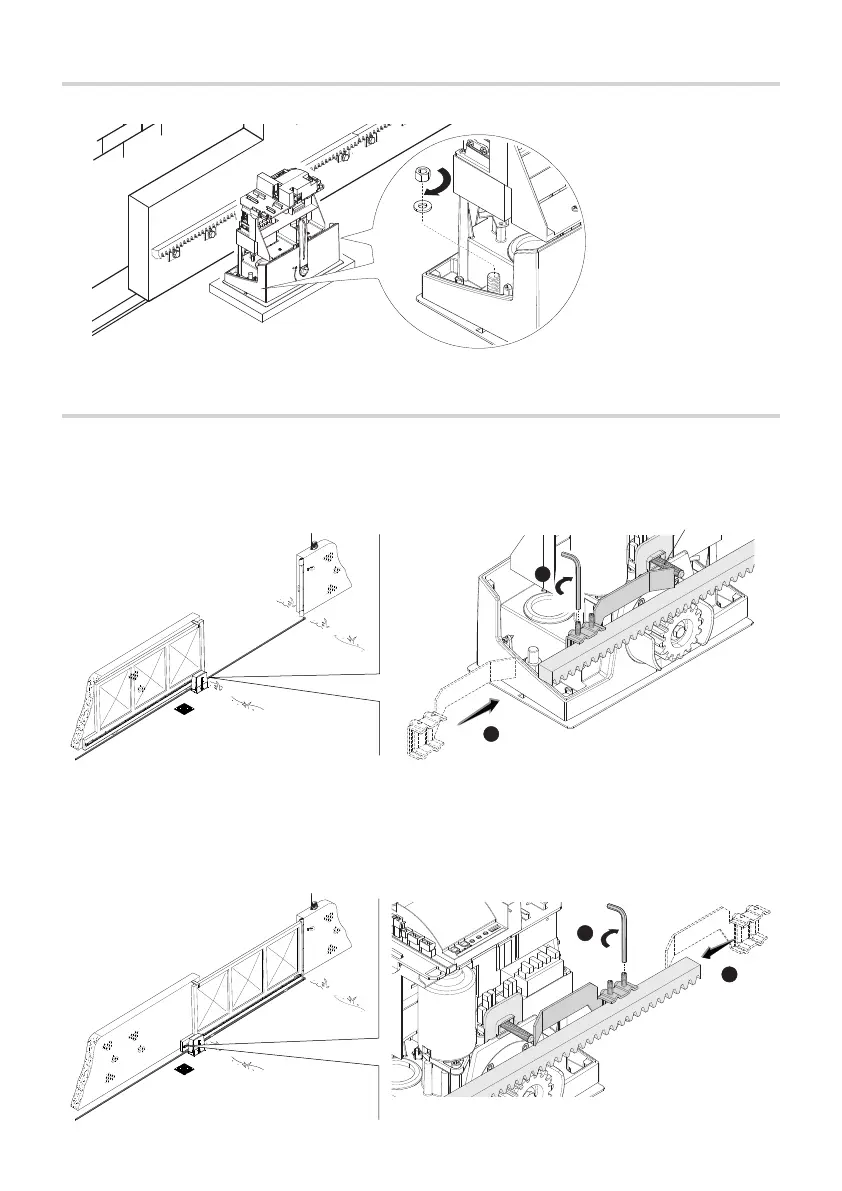

p. 13 - Manual FA01084-EN - 02/2018 - © CAME S.p.A. - "Translated original instructions"
Spring
For closing:
- completely close the gate;
- fit the closing endstop fin onto the rack until the micro-switch activates (spring);
- fasten it using the allen screws
⚠
Don't let the gate get to the mechanical stop, whether it is the opening or closing one.
ESTABLISHING THE LIMIT-SWITCH POINTS
For opening:
- completely open the gate;
- fit the opening endstop fin onto the rack until the micro switch activates (spring);
- fasten it using the allen screws
FASTENING THE GEARMOTOR
Complete the adjusting, fasten the gearmotor to the plate using the washers and nuts.

CAME OPS series Specifications

General

Brand	CAME
Model	OPS series
Category	Gate Opener
Language	English
