CAME OPS series User Manual

300
450
400
50
2
UNI 5734
Ø 12
UNI 5588 M12
p. 9 - Manual FA01084-EN - 02/2018 - © CAME S.p.A. - "Translated original instructions"

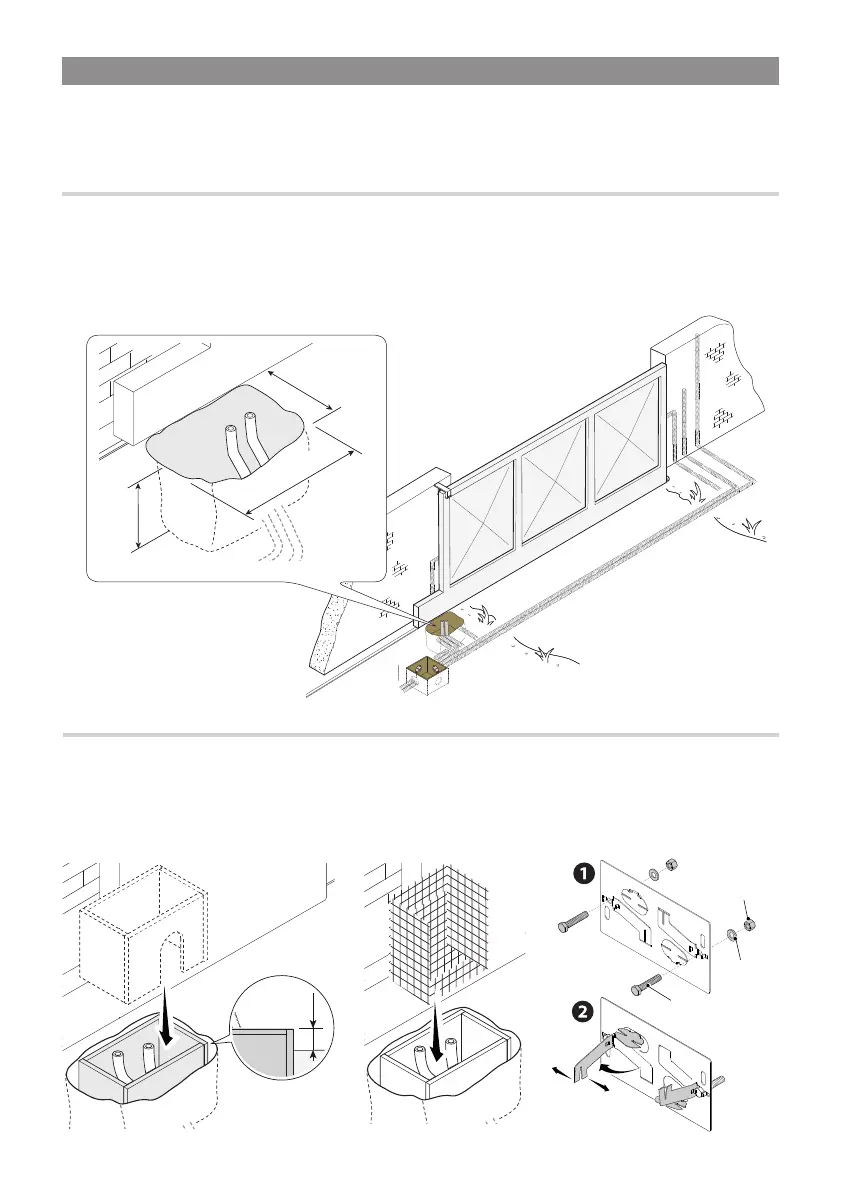

INSTALLATION
⚠
The following illustrations are mere examples. Consider that the space available where to fit the barrier and
accessories will vary depending on the area where it is installed. It is up to the installer to find the most suitable
solution.
CORRUGATED TUBE LAYING
Dig a hole for the foundation frame.
Set up the corrugated tubes needed for the wiring coming out of the junction pit.
For connecting the gearmotor we suggest using a Ø 40 mm corrugated tube, whereas for the accessories we
suggest Ø 25 mm tubes.
 The number of tubes depends on the type of system and the accessories you are going to fit.
LAYING THE ANCHORING PLATE
Set up a foundation frame that is larger than the anchoring plate and sink it into the dug hole. The foundation frame
must jut out by 50 mm above ground level.
Fit an iron cage into the foundation frame to reinforce the concrete.
Fit the bolts into the anchoring plate and lock them using the washers and nuts. Remove the pre-shaped clamps
using a screw driver or pliers.
