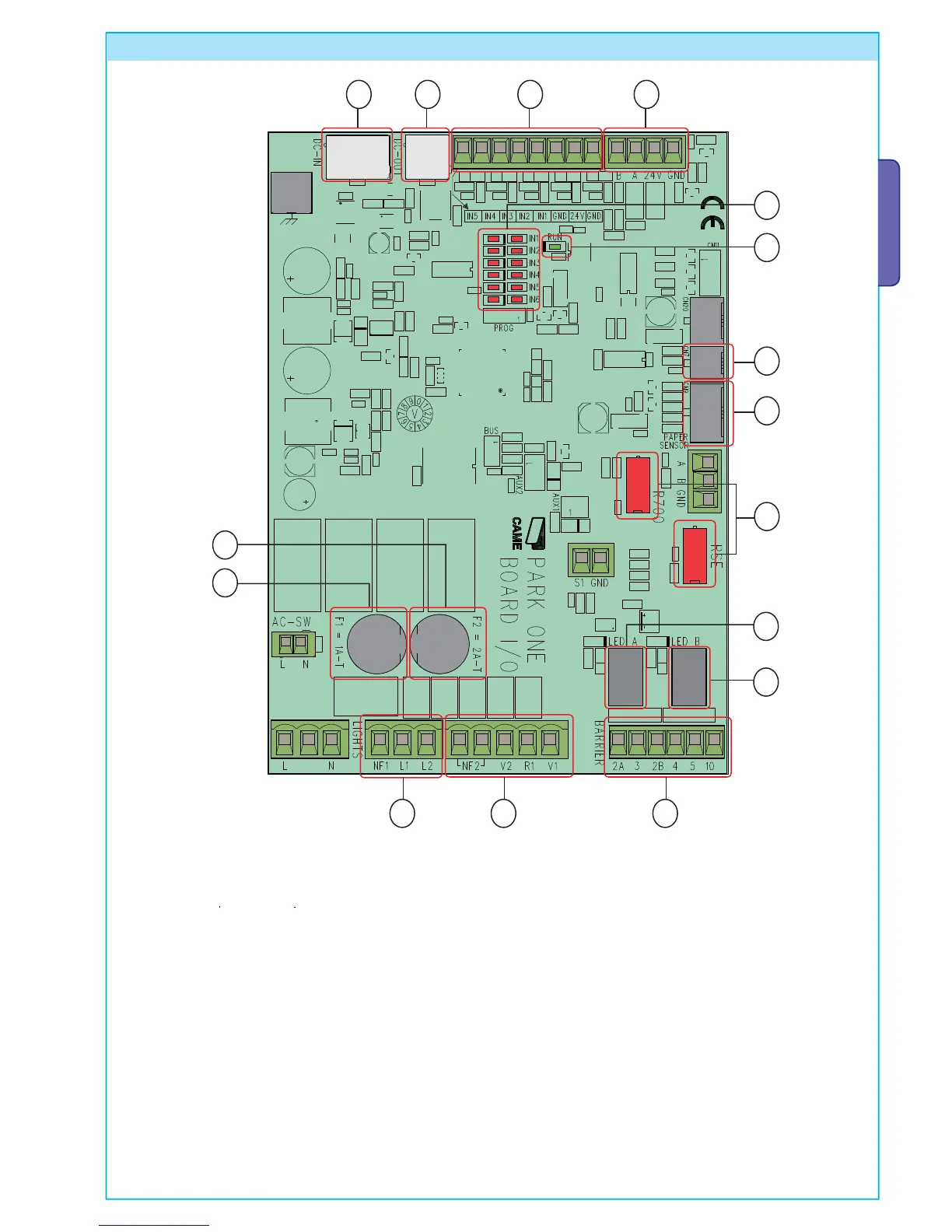

7 Entry unit / exit unit board - description
1. Traffic light fuse
2. Traffic light connection terminal
3. Fans and heater connection terminals
4. Barrier connection terminals
5. Barrier opening command relay switch
6. Barrier closing command relay switch
7. Optional cards connection terminal
8. Paper sensor connection terminal
9. Door switch connection terminal
10. CPU power supply terminal
11. Operating LED light
12. LED signal lights
13. Input terminal
14. Printer power supply terminal
15. Vcc power supply input
16. Fans and heater fuse
