The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
10
ENGLISH

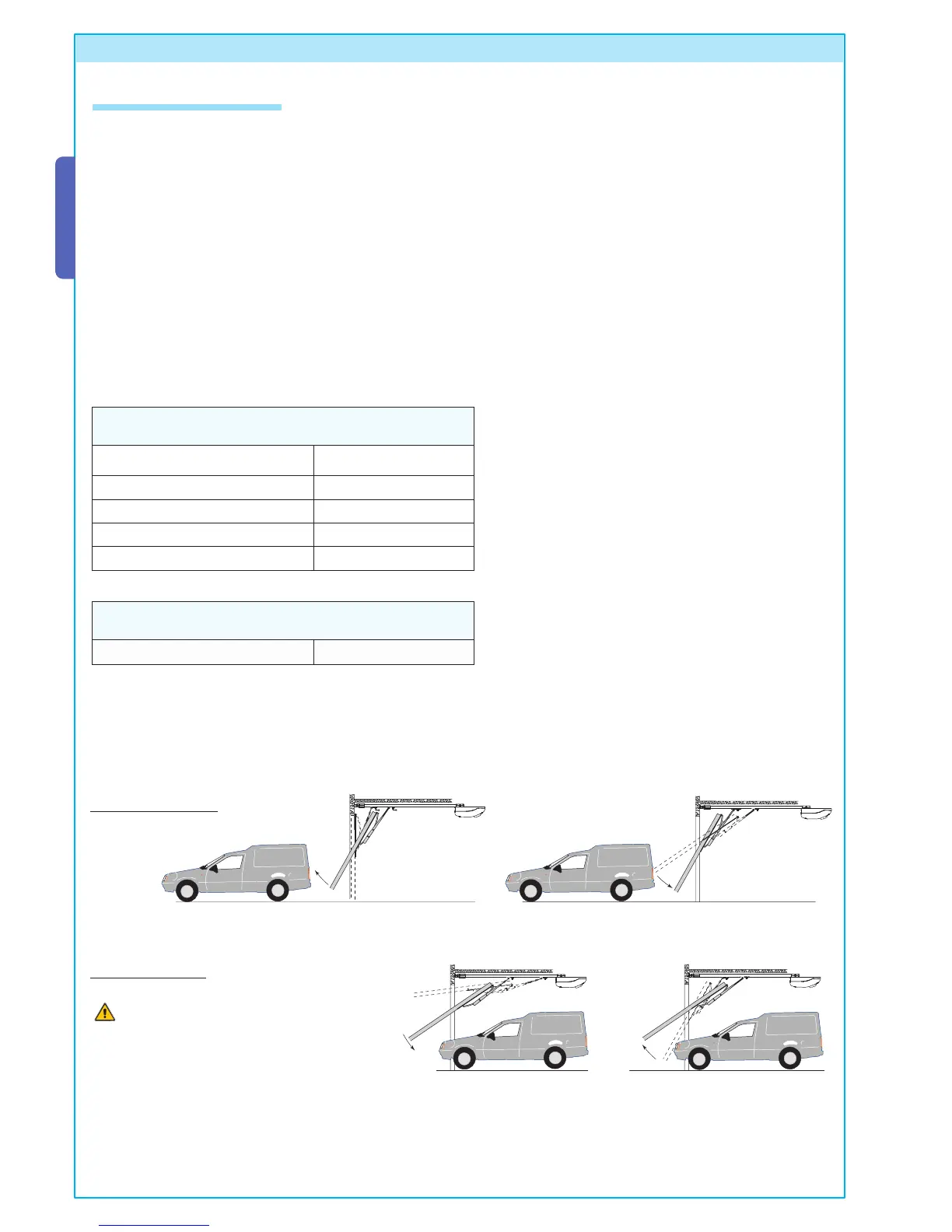

6.1 General description
6 Electronic control panel
The control panel is powered by 230V on the L-N terminals, with a 50/60 Hz frequency.
The command devices and accessories run on 24V. Moreover, the total accessories cannot run on more than 40W.
The panel controls a service light to light up the service area; at each opening it lights up for 2 minutes and 30 seconds.
The V0670 card may be connected to operate the automation kit with emergency batteries (see the technical documentation
attached).
The card automatically controls the following functions:
1) amperometric detection of obstructions during opening, closing and during slow down phases (with adjustable sensitivity);
2) automatic closing (adjustable);
3) working cycle (80”);
4) open-stop-close-stop command
5) reopening dueing the closing phase of the photocells.
in the closing phase: invert the direction of movement
until completely opened;
Warning! After three, consecutive inverted
cycles, the door will stay open excluding automatic
closing function: to close the door, use the remote
control or a command button.
in the opening phase: invert the direction
of movement until completely closed;
FUSES
Protection Fuse type
Motor 7,5A
Circuit board (line) 1,6A
Accessories 3,15A
Command devices (control unit) 315mA
LIGHTS
Service E17 24V 25W
Detail of the amperometric detection of obstructions:
