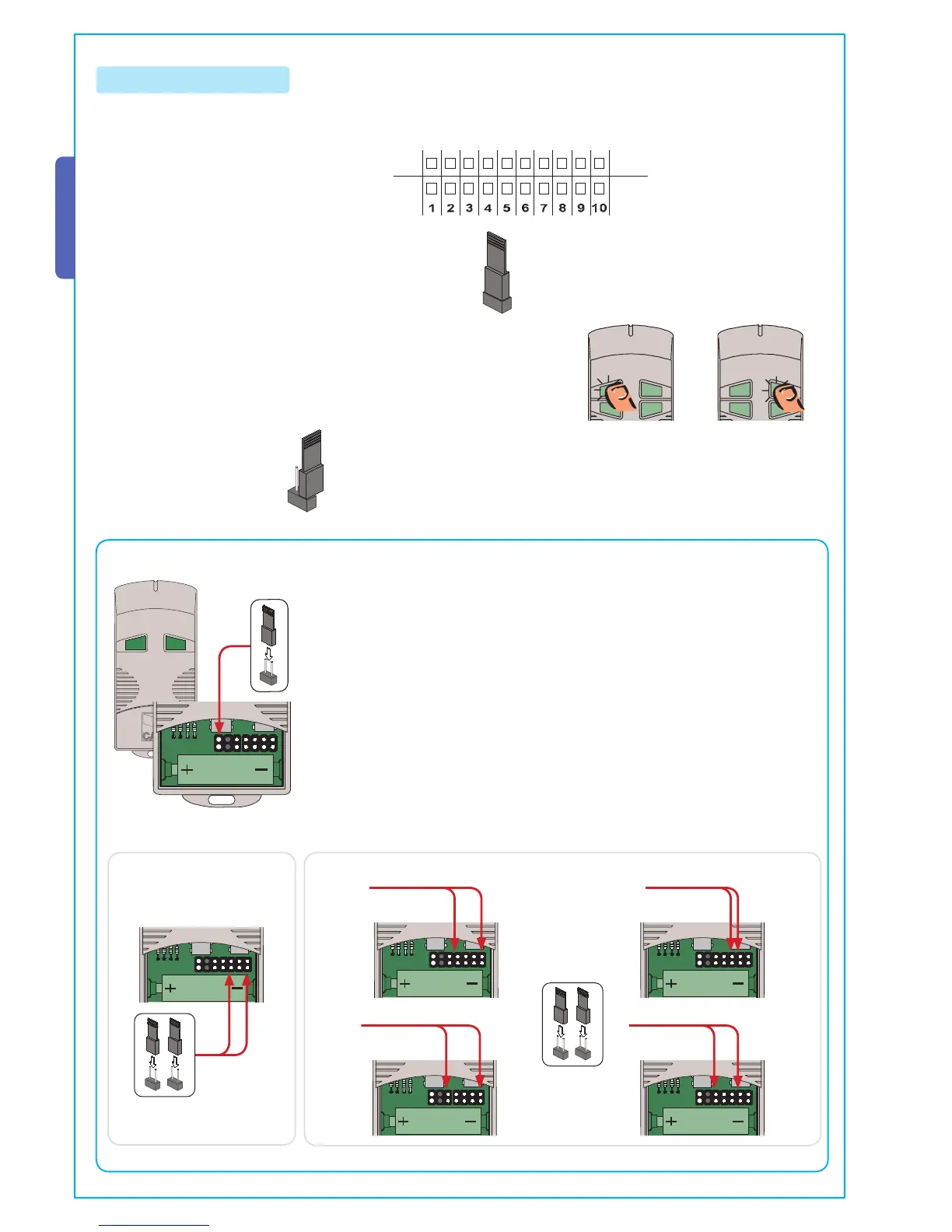

Common coding operations for transmitters:
1 note down the selected code (for future need)
2 insert the J coding jumper to activate the procedure
3 memorise the code, pressing P1 and/or P2 in the above sequence.
At the end, a double sound will confirm the memorisation.
4 remove the J jumper
QUARZ TOP SERIES
/.
/&&
0
0
0 0
The fi rst coding must be made leaving the C jumpers in the position shown in fi g
A. For any other coding operations on other channels position the C jumpers as
shown in fi g. B.
TOP
T262M - T302M
FIG.A
FIG.B
P1 = CH1
P2 = CH2
P1 = CH1 - P2 = CH3 P1 = CH3 - P2 = CH2
P1 = CH1 - P2 = CH4 P1 = CH3 - P2 = CH4
