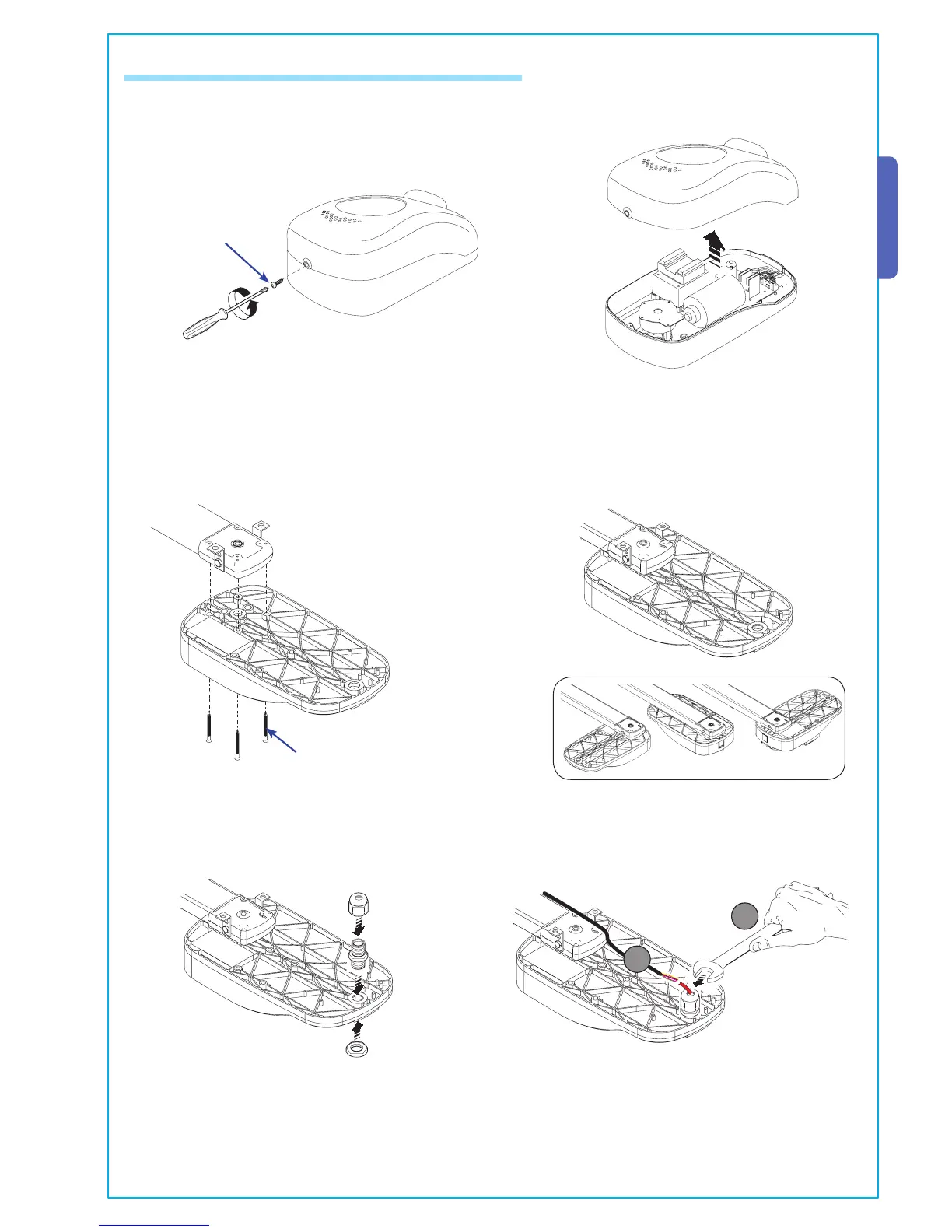

5.8 Fastening the gearmotor to the transmission guide
1) Remove the cover of the motor unit.
2) Fasten the motor unit to guide’s support racket using the three screws supplied with the kit.
N.B.: if needed, the unit may be fasten in the other three perpendicular positions, as per the drawings.
UNI 6954 ø 3.9 x 13
UNI 6955 ø 6.3 x 45
3) Affi x the cable gland in the hole used to convey the electrical cables.
