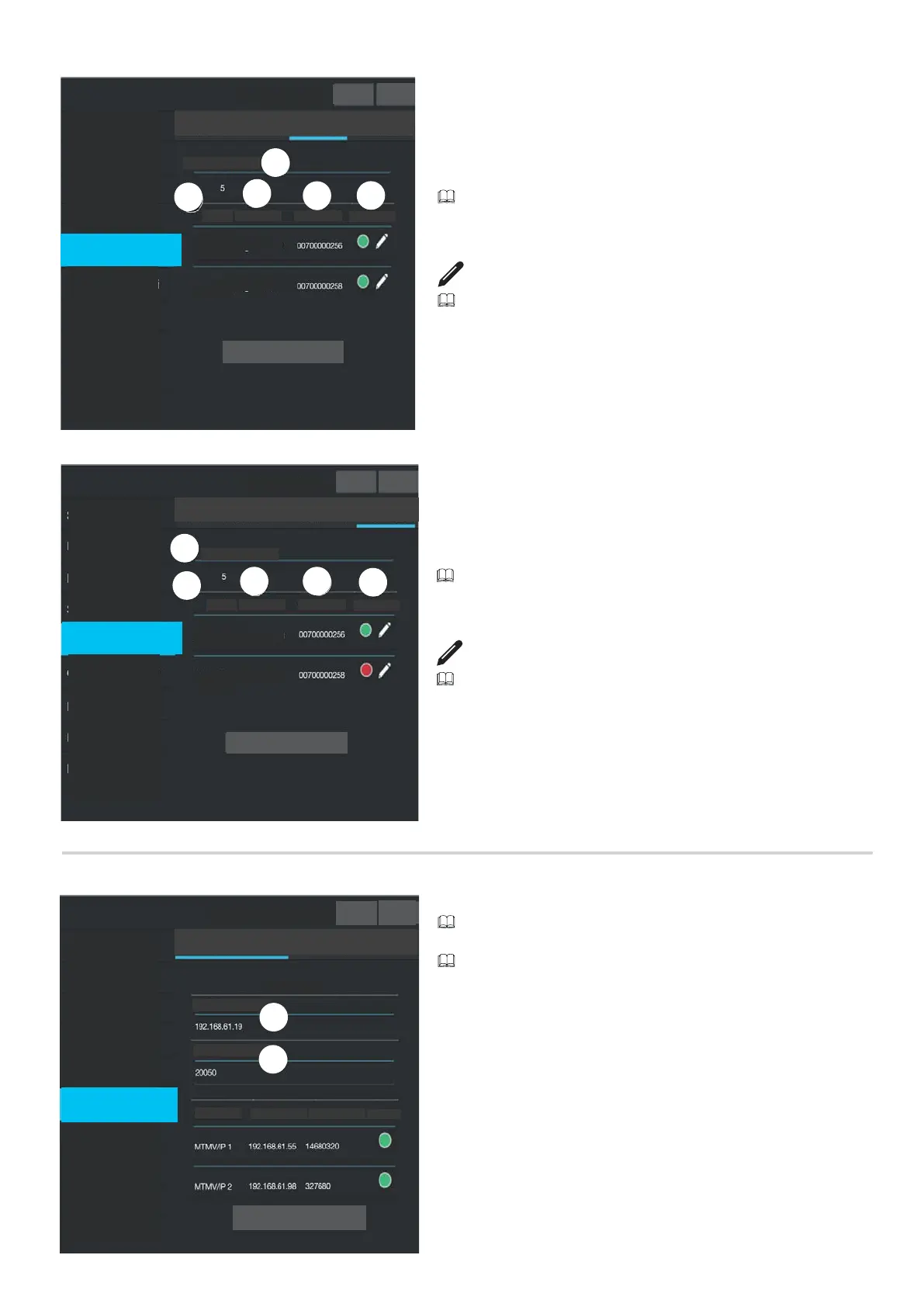

e8941d2a-5550-4801-9ef5-3cadb21a174fMOBILE APP 9b424af7-e528-4dbf-8968-113493daa2e9(MASTER device only)
List of Mobile APP devices, which require a licence and use the MASTER XVP entry panel
as the MASTER IP server as the registration server.
❼ Number of licences still available.
❽ Unit to which the mobile device belongs.
❾ Description of the device as configured by PCS/XIP.
❿ SIP username assigned in the app.
The SIP password and username must be configured in the app so that it is
registered on the XVP entry panel.
⓫
d09e0537-3e7f-4277-a94c-b6775f081e0eGreen icon dcd01994-03ae-44a3-a3c8-a61712eec80dThe account is enabled for registration on the XVP entry panel.
146c8ba1-d8e8-4097-a1e9-f72a3c733f36Red icon c63f9709-38c1-4ef3-a082-09d0e725ca54The account is not enabled for registration.
Press to enable or disable the account and to change the password.
Each enabled account requires an app licence, which is subtracted from the total
number of available licences.
962169f0-799b-40ad-8e3a-f260cecabf07GENERIC SIP 9b424af7-e528-4dbf-8968-113493daa2e9(MASTER device only)
List of generic SIP devices that use the MASTER XVP entry panel as the registration
server.
⓬ Number of licences still available.
⓭ Unit to which the generic SIP device belongs.
⓮ Description of the device as configured by PCS/XIP.
⓯ SIP username assigned to device by PCS/XIP.
The SIP username and password must be configured on the SIP device so that it
is registered on the XVP entry panel.
⓰
d09e0537-3e7f-4277-a94c-b6775f081e0eGreen icon dcd01994-03ae-44a3-a3c8-a61712eec80dThe account is enabled for registration on the XVP entry panel.
146c8ba1-d8e8-4097-a1e9-f72a3c733f36Red icon c63f9709-38c1-4ef3-a082-09d0e725ca54The account is not enabled for registration.
Press to enable or disable the account and to change the password.
Each enabled account requires a GST licence, which is subtracted from the total
number of available licences.
Setting access controls
MASTER/SLAVE
❶ MASTER device address.
For the MASTER entry panel, it is the address of the device itself.
❷ MASTER device port (default 20050).
For MASTER XVP entry panels only, there is a list of SLAVE devices.
d09e0537-3e7f-4277-a94c-b6775f081e0eGreen icon 2e06c68f-53db-46a7-9f2d-c68bd681e4a5The SLAVE device is connected to the MASTER device.
146c8ba1-d8e8-4097-a1e9-f72a3c733f36Red icon 42e90da7-018c-4d74-91f4-ee9c0c93f9fdThe SLAVE device is not connected to the MASTER device.
