Page 2 - Manual FA 0148 2- EN - 10/2020 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
General precautions for installers
Read the instructions carefully before staring installation and performing any procedures as explained by the manufacturer. • Installation, programming, commissioning
and maintenance must only be carried out by qualified, expert staff and in full compliance with the applicable law. • Before carrying out any cleaning or maintenance,
or replacing any parts, disconnect the device from the power supply. • Only use this product for its intended purpose. Any other use is hazardous. • The manufacturer
cannot be held liable for any damage caused by improper, unreasonable or erroneous use. • This product complies with current applicable reference standards.
General precautions for controlling the device remotely
Some features of the system may be managed from a smartphone/tablet using the corresponding apps. • For the system to be remotely controlled, the device must
be connected to a network with internet access. • For this type of system to operate properly, the connection bandwidth must be sufficiently high.
Remotely controlling the device via the app means consuming your smartphone/tablet/home network’s data traffic. The cost of this consumption is borne
by the user.
Dismantling and disposal
Dispose of the packaging and the device responsibly at the end of its life cycle, in compliance with the laws in force in the country where the product is used. The
recyclable components are marked with a symbol and the material ID marker.
THE DATA AND INFORMATION IN THIS MANUAL MAY BE CHANGED AT ANY TIME AND WITHOUT NOTICE.
THE MEASUREMENTS, UNLESS OTHERWISE STATED, ARE IN MILLIMETRES.
DESCRIPTION
XVP S: Wall-mounted video-entry panel with touch screen for IP360 system.
XVP F: Recessed video-entry panel with touch screen for IP360 system.

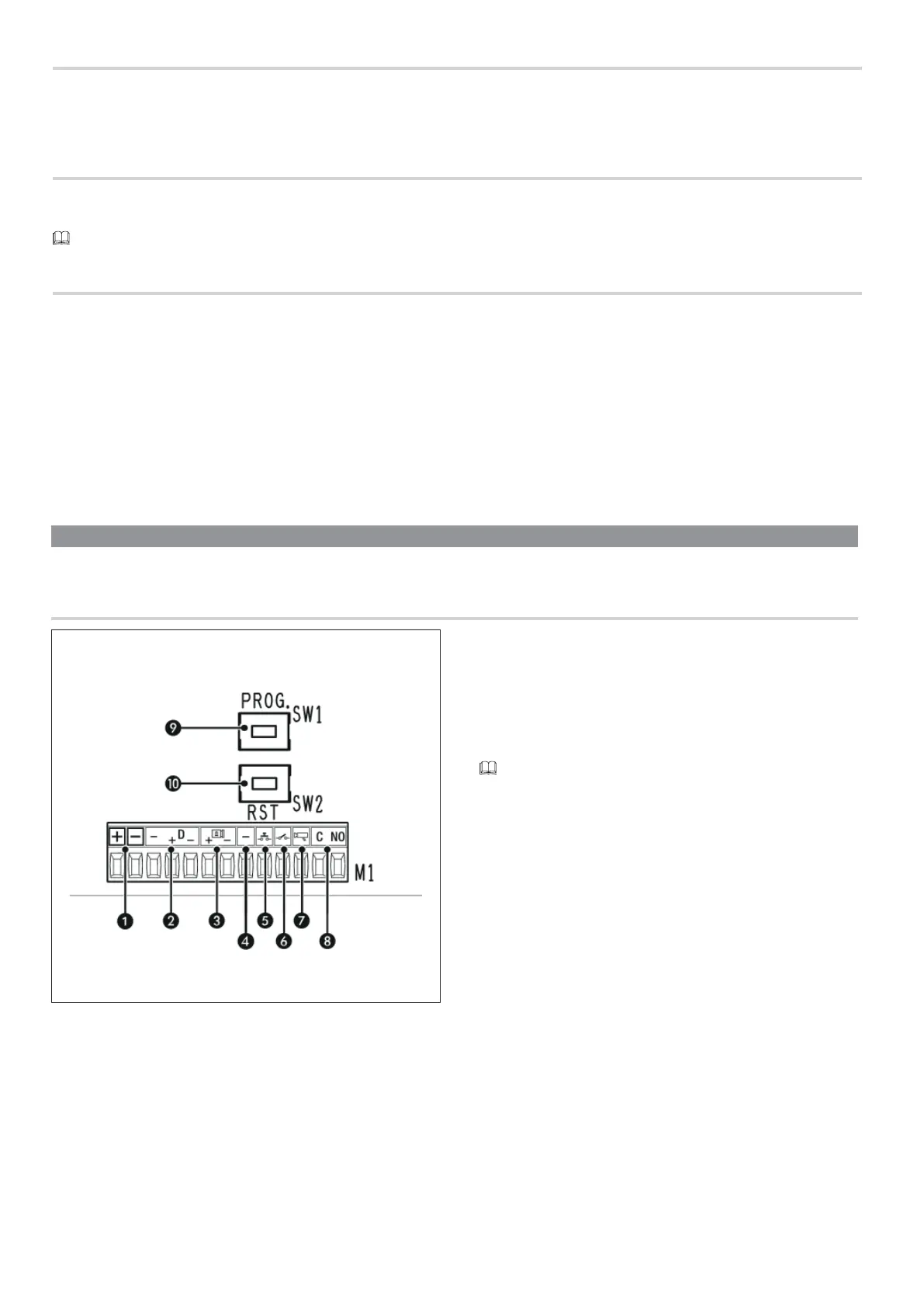

Function of terminals
❶Local power supply input 12-24 V DC
❷CAN BUS data line
❸Solenoid lock 12 V - 1 A max
❹Earth
❺Door release button (NO) *
❻Door open contact input (NC) *
❼Entry panel enabling output
b58a6da3-9e64-4239-af03-ad0b1d90f155Active to earth *
❽Auxiliary contact max. 1 A 30 V (AUX 2)
*
The contact can be programmed to perform different functions: if
pressed and held for a few seconds, the Settings section is activated on the
display.
❾Programming button.
❿ RESET button
dd691fd2-0866-4c3c-8a6a-18381e81c7dfPress and hold to restart the device. b910b6e2-99f5-449e-aeb7-1309839a0303This operation DOES NOT
delete any programming
