ENGINEERED & PROCESS VALVES
10
01/2011 / IOM-TK-TMBV-01
Installation, Operation and Maintenance Manual
NAMEPLATE INFORMATION
TK can provide either a non-monogram or monogram API-6D, API-6A, and/or a CE tag. All tags are
securely placed onto the valve and will have the information below stamped in each section.
Caution:
Name plates should never be painted or removed.

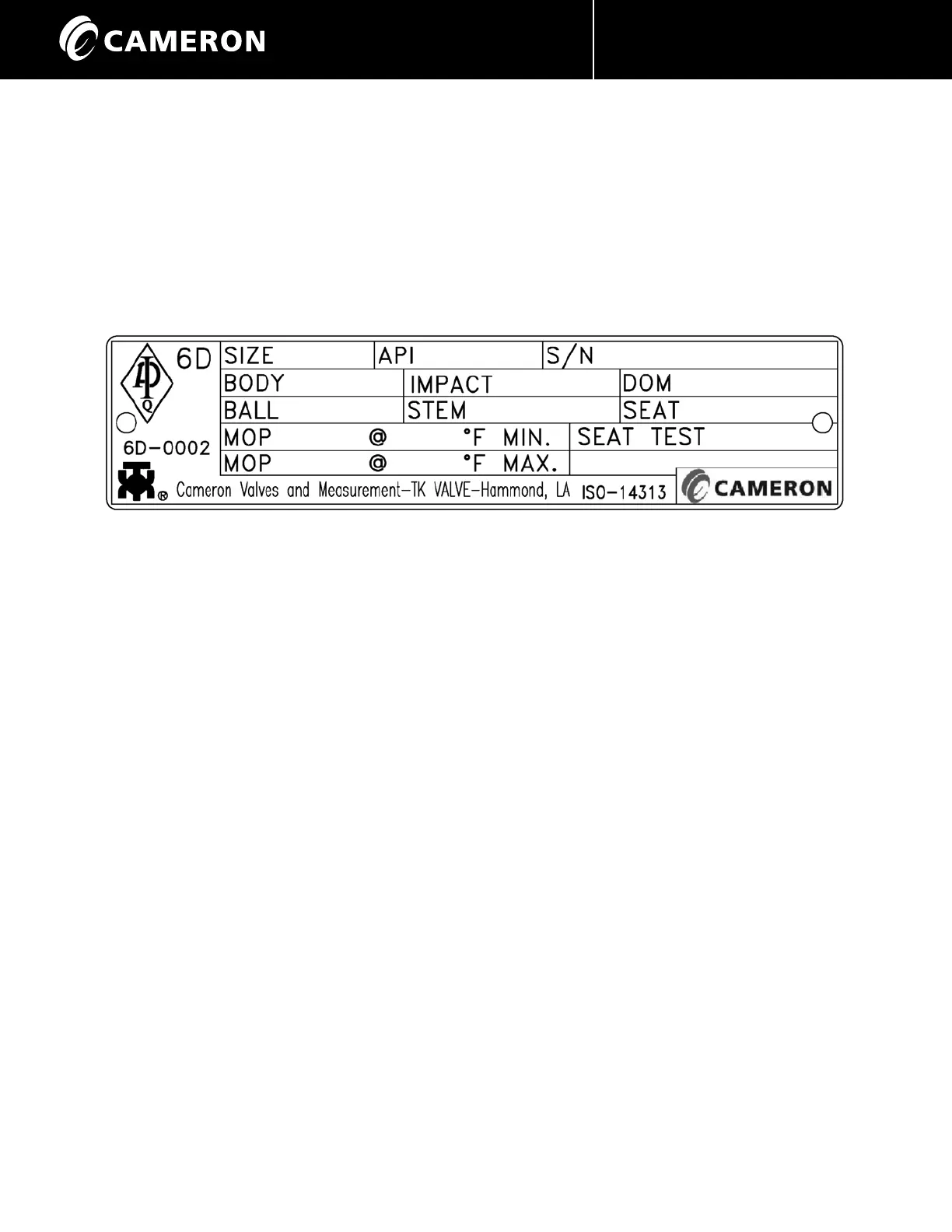

Figure 4 -TK
API-6D Nameplate
Item Description Stamp Description
1. Size: Full port valves will be stamped as “flange end x flange end”
• Ex: 12” x 12”
Reduced port valves will be stamped as “flange end x ball bore x flange
end”
• Ex: 12” x 10” x 12”
2. API API 6D or API 6A
3. S/N Valve’s unique serial number.
4. Body Body material.
5. Impact Impact requirements.
6. DOM Date of manufacture.
7. Ball Ball material.
8. Stem Stem material.
9. Seat Seat insert material for soft seats or TCC for metal seats.
10. MOP Minimum Operation Pressure at Temperature.
11. Seat Test Seat test pressure.
12. MOP Maximum Operation Pressure at Temperature.
