Section 01 TECHNICAL MANUAL
Subsection 01 (DYNAMIC POWER STEERING (DPS))

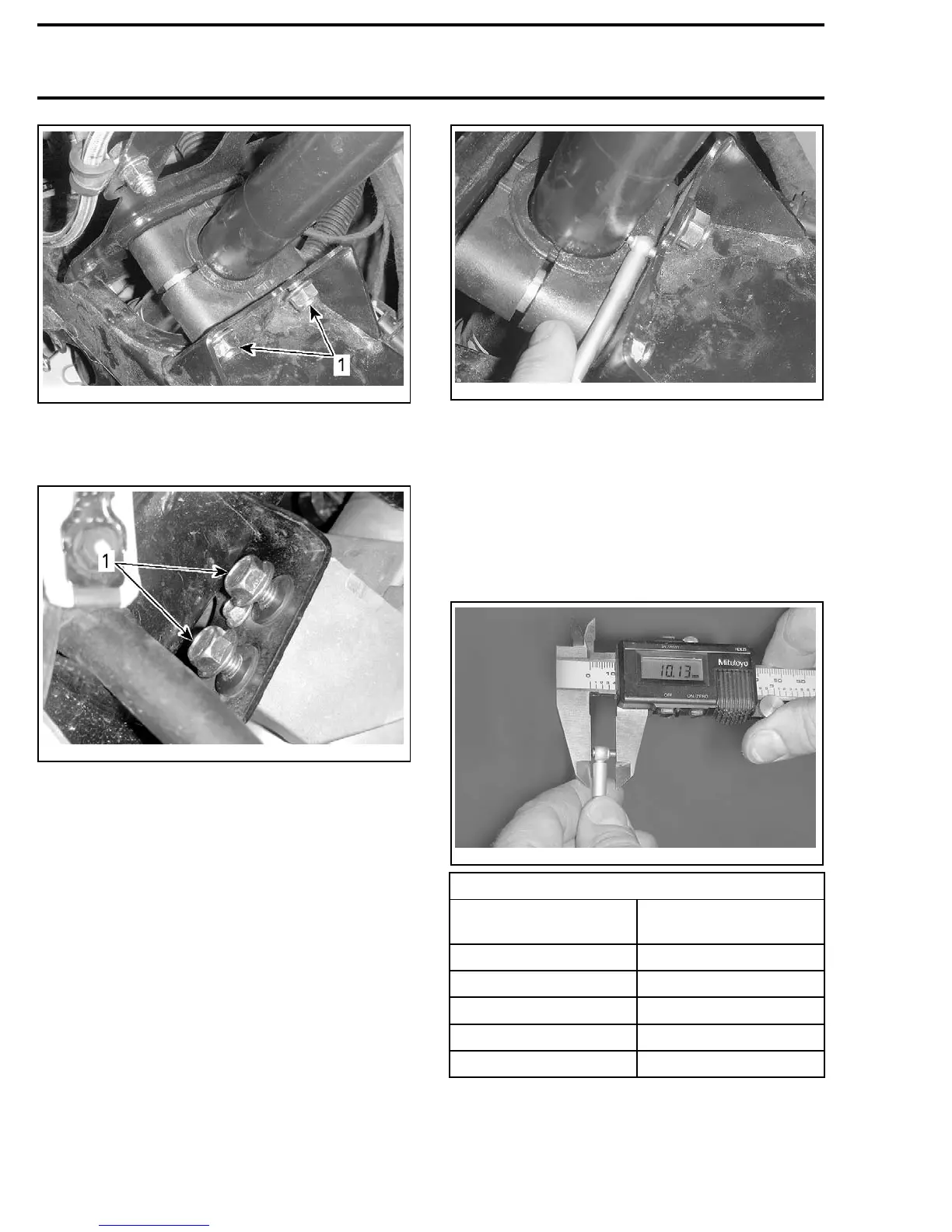

vmr2010-003-035_a
1. These nuts installed hand tight at this time
11. Torque DPS unit mounting screws to
24.5 N•m (18 lbf•ft).
vmr2010-003-028_b
TYPICAL - RH SIDE ILLUSTRATED
1. Torque DPS mounting screws (x4)
12. Using an 8 mm (5/16 ft) telescoping gauge as
foundinthe
SNAP-ON
®
TELESCOPING GAUGE
SET (P/N LST 52616)
, measure the distance be-
tween the steering column shaft and the face
of the column frame support. Measurement
is taken above rear half bushing.
vmr2010-003-036
STEERING COLUMN SHIM MEASUREMENT
NOTE: Ensure the forward end of the tool is in the
center of the steering column, and the rearward
end does not protrude through the notch in the
support.
13. Measure the telescoping gauge using a
Vernier caliper (or a micrometer) and com-
pare the measured distance to the following
table to establish the required shim thickness
vmr2010-003-037
STEERING COLUMN SHIM REQUIREMENT
MEASURED DISTANCE
TOTAL SHIM
THICKNESS REQUIRED
8.63 mm (.34 in) None
9.63 mm (.379 in) 1 mm (.039 in)
10.65 mm (.419 in) 2 mm (.079 in)
11.66 mm (.459 in) 3 mm (.118 in)
12.65 mm (.498 in) 4 mm (.157 in)
NOTE: Shimscomein1mm(.039in)and2mm
(.079in) thicknesses. Total shim thickness must
not exceed 4 mm (.157 in).
20 vmr2010-003
