Can-Am 2010 DPS User Manual

Section 01 TECHNICAL MANUAL
Subsection 02 (AIR CONTROLLED SUSPENSION (ACS))
2. Select Activation page.
3. Select ACS folder.
4. Press Compressor button to proceed.

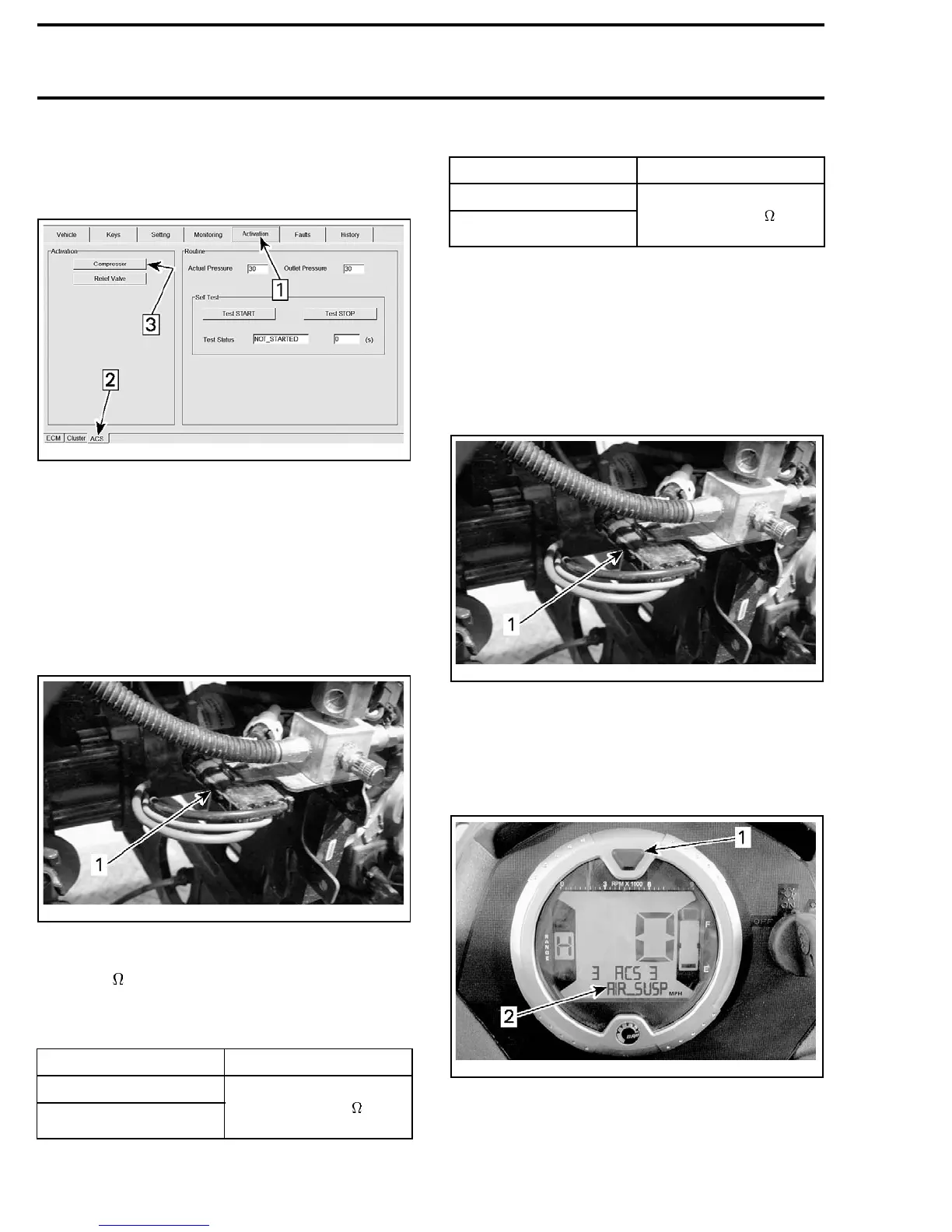

vmr2010-004-201_c
Step 1: Activation page
Step 2: ACS folder
Step 3: Compressor operation test button
5. Verify if compressor works properly.
ACS Compressor Power Wire
Continuity Test (from Relay)
1. Remove relay, refer to FUSE AND RELAY at the
beginning of this section.
2. Disconnect compressor connector.
vmr2010-004-103_a
1. Compressor connector
3. Set the FLUKE 115 MULTIMETER (P/N 529 035
868)
to .
4. Measure resistance as per the following t
able.
Outlander 500 LTD
TEST PROBES RESISTANCE
Compressor pin C (BE/VI)
Fuse box pin 6C (BE/VI)
Closeto0
Outlander 800R LTD
TEST PROBES RESISTANCE
Compressor pin C (BE/VI)
Fuse box pin 11A (BE/VI)
Close to 0
ACS Compressor Input Voltage Test
1. Release air pressure, refer to RELEASING AIR
PRESSURE IN SYSTEM FOR SERVICING
in this
subsection.
2. Set the
FLUKE 115 MULTIMETER (P/N 529 035
868)
to Vdc.
3. Disconnect compressor connector.
vmr2010-004-103_a
1. Compressor connector
4. Place ignition switch to ON position.
5. Probe compressor connector.
6. Press selector button several times until
AIR_SUSP is displayed.
vmo2010-004-005_a
1. Selector button
2. AIR_SUSP displayed
7. Set suspension mode to ACS 2 using the ACS
button.
38 vmr2010-004
