Section01 TECHNICAL MANUAL
Subsection 02 (AIR CONTROLLED SUSPENSION (ACS))

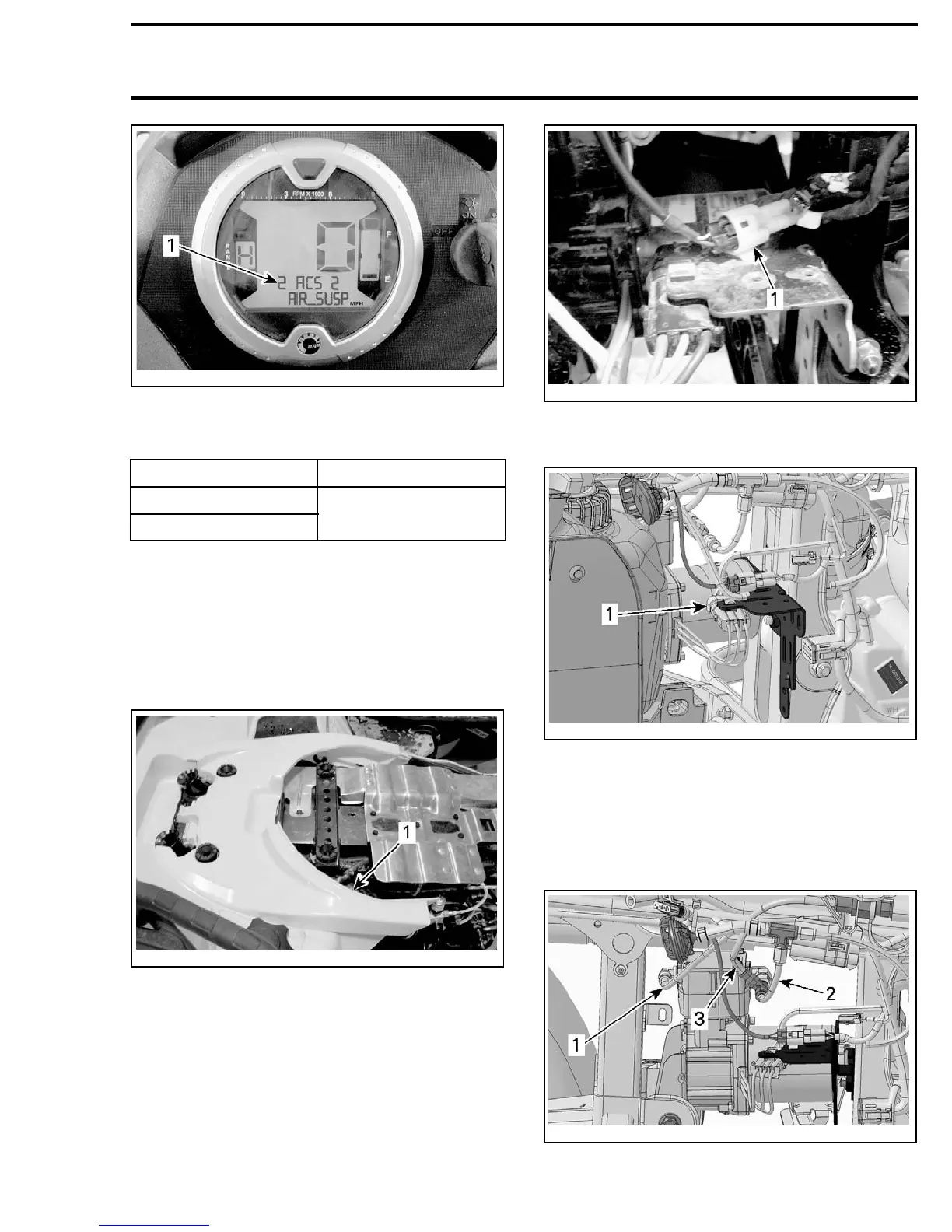

vmr2010-004-101_a
1. Actual setting (pressure transducer reading)
8. Measure voltage between compressor connec-
tor terminals as per the following table.
TEST PROBES VOLTAGE
Pin C (BE/VI)
Pin A (BK)
Battery voltage
(± 12 Vdc)
ACS Compressor Removal
1. Release air pressure, refer to
RELEASING AIR
PRESSURE IN SYSTEM FOR SERVICING
in this
subsection.
2. Remove LH side panel.
3. Remove storage tray.
vmr2010-004-013_a
1. Storage tray
4. Remove solenoid valve. Refer to
ACS SOLE-
NOID VALVE REMOVAL
.
5. Remove manifold. Refer to
ACS MANIFOLD
REMOVAL
.
6. Remove module. Refer to
ACSMODULERE-
MOVAL
.
7. Remove connect
or of auxiliary line pressure
transducer f
rom support.
vmr2010-004-014_a
1. Connector of auxiliary line pressure transducer
8. Disconnect compressor connector.
vmr2010-004-015_a
1. Compressor connector
9. Disconnect the following hoses from compres-
sor air fittings.
– Compressor air inlet hose
– Compressor air outlet hose
– Auxiliary line hose.
vmr2010-004-016_a
1. Compressor
air inlet hose
2. Compressor air outlet hose
3. Auxiliary line hose
vmr2010-004 39
