Section 01 TECHNICAL MANUAL
Subsection 02 (AIR CONTROLLED SUSPENSION (ACS))
10. To disconnect hoses, proceed as follows:
10.1 Push fitting ring toward manifold.
10.2 Hold ring in place.
10.3 Pull air hose.

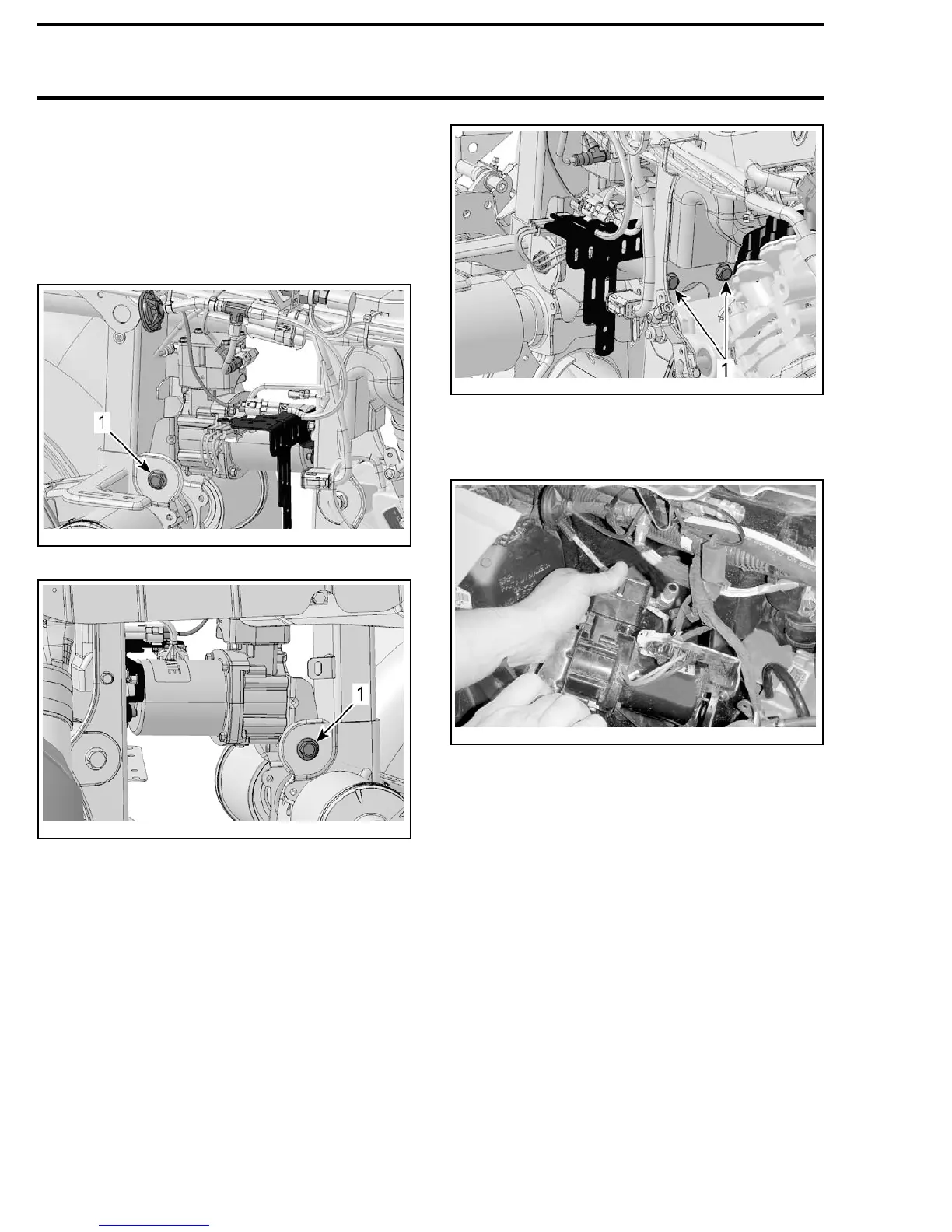

11. Remove compressor side retaining bolts and
nuts.
vmr2010-004-017_a
1. RH side retaining bolt
vmr2010-004-018_a
1. LH side retaining bolt
12. Remove compressor front retaining screws.
vmr2010-004-019_a
1. Front retaining screws
13. Remove compressor from vehicle by pulling it
upwards.
vmr2010-004-020
14. Detach compressor connector from front sup-
port.
15. Remove mounting nuts from compressor
front support.
16. Remove front support from compressor.
40 vmr2010-004
