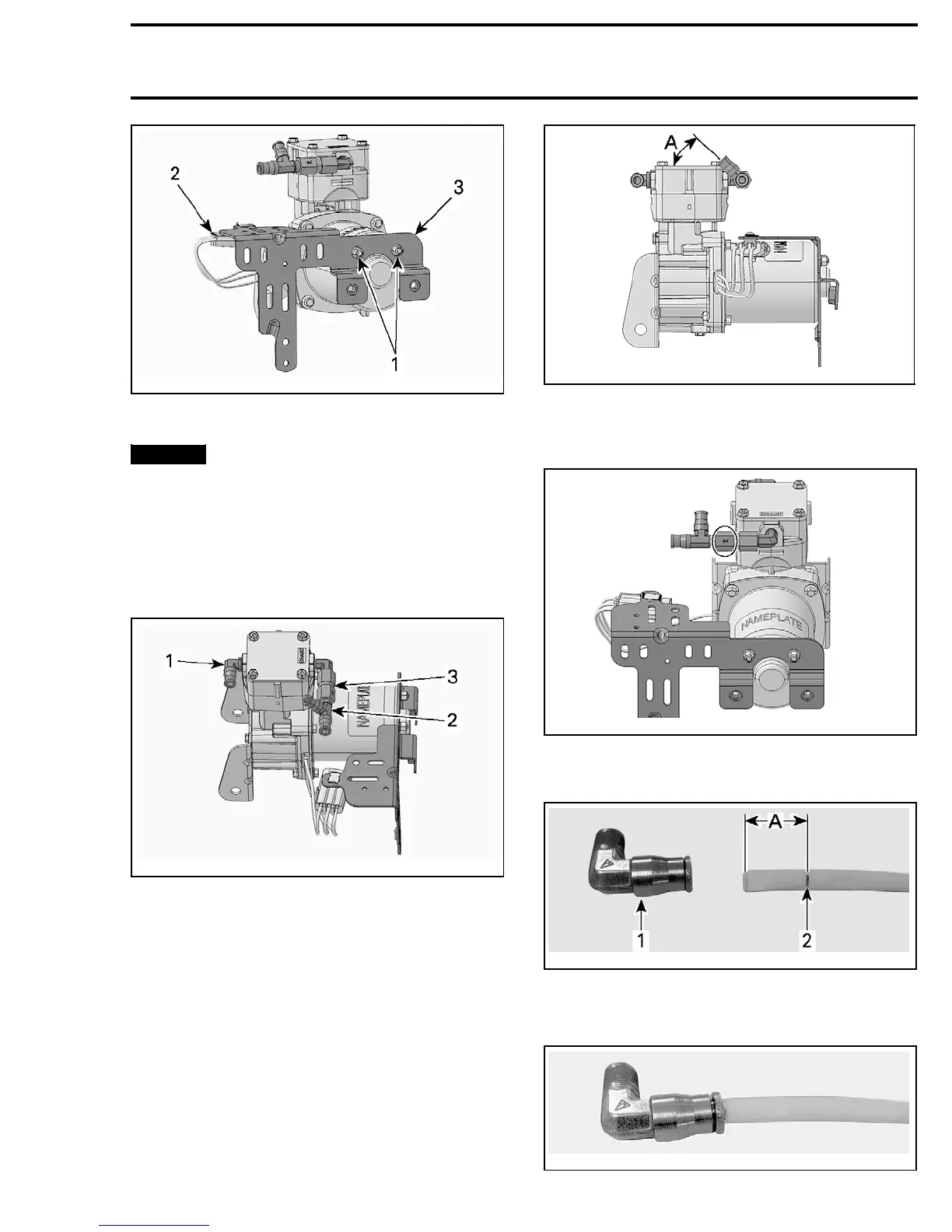

1. Front support mounting nuts
2. Compressor connector
3. Front support
NOTICE
Do not remove rear support from
compressor.
17. Remove the following fittings from compres-
sor.
– Compressor air inlet fitting
– Compressor T-fitting
– Compressor check valve.
vmr2010-004-023_a
1. Compressor air inlet fitting
2. Compressor T-fitting
3. Compressor check valve
ACS Compressor Installation
The installation procedure is the reverse of re-
moval procedure, however pay attention to the
following.
If fitting or valve is the one previously removed
(old one), apply
LOCTITE 592 (PIPE SEALANT)
(P/N 293 800 018)
on all male threads.
If fitting or valve is a new one, do not apply
sealant, it should be already applied on male
threads.
Install T-fitting with an angle of 45° as shown on
following illustration.
vmr2010-004-025_a
A. 45°
Ensure that check valve is installed with arrows
pointing toward T-fitting.
vmr2010-004-024_a
Ensure that air hoses are properly inserted into fit-
tings, refer to the following illustrations.
vmo2010-011-102_a
PUSH HOSE UNTIL THE MARK IS COMPLETELY INSERTED
1. Fitting
2. Mark
A. Must be inserted into fitting
vmo2010-011-103
HOSE PROPERLY INSERTED INTO FITTING
vmr2010-004 41
