Section01 TECHNICAL MANUAL
Subsection 02 (AIR CONTROLLED SUSPENSION (ACS))

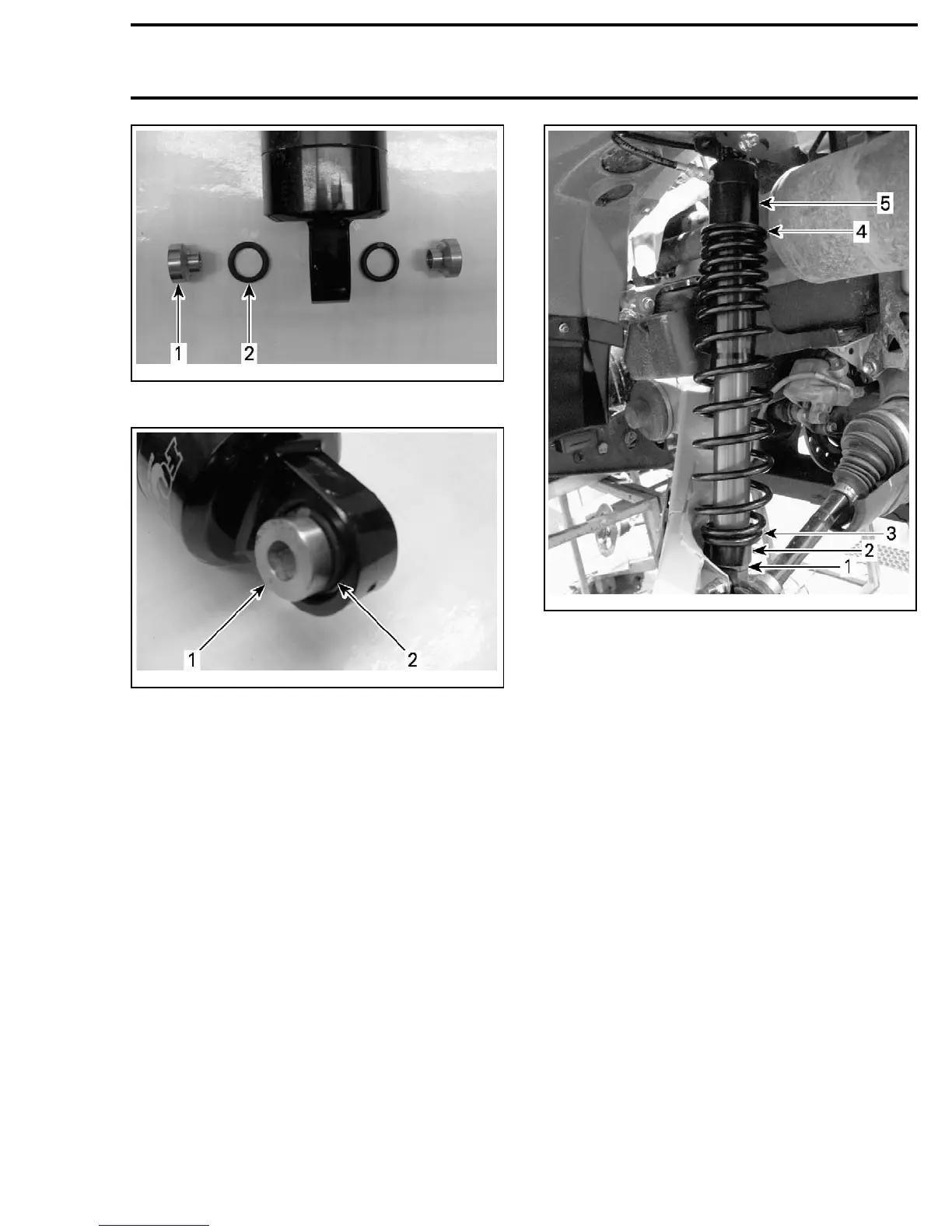

vmr2010-004-701_a
1. Sleeve
2. O-ring
vmr2010-004-702_a
1. Sleeve
2. O-ring
vmr2010-004-703_a
TYPICAL
1. Circlip
2. Small sleeve
3. Lower cap
4. Upper cap
5. Large sleeve
Install shock absorber cap opening at 180° from
spring stopper opening.
Torque upper and lower shock absorber bolts to
53 N•m (39 lbf•ft).
If the same shock absorber is reused, apply
LOC-
TITE 592 (PIPE SEALANT) (P/N 293 800 018)
on air
hose sleeve male threads.
While holding shock fitting with a wrench, tighten
air hose fitting to 19N•m (168 lbf•in).
vmr2010-004 47
