Section 01 TECHNICAL MANUAL
Subsection 02 (AIR CONTROLLED SUSPENSION (ACS))
vmr2010-004-027_a

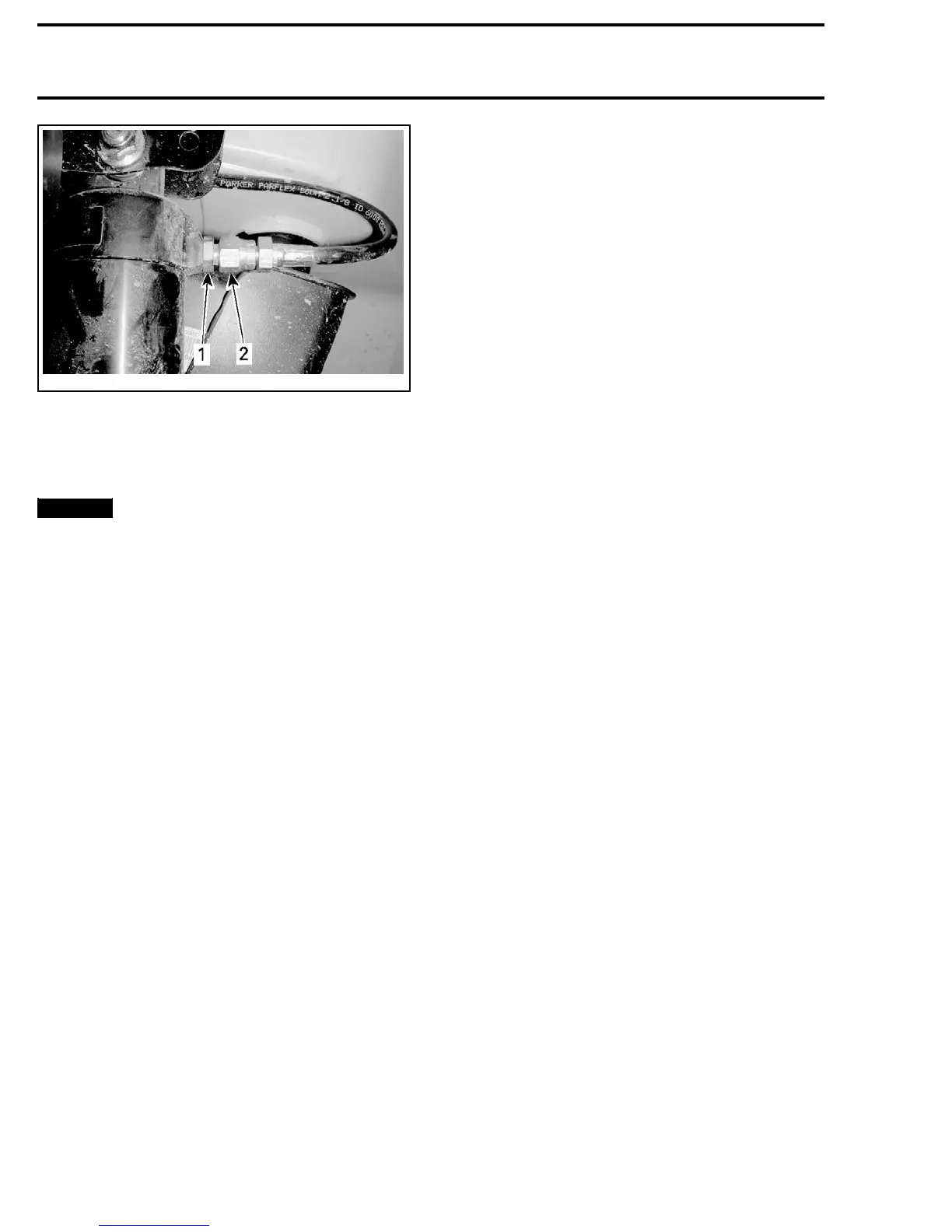

1. Shock absorber fitting
2. Air hose fitting
Ensure that there is no air leaks from shock ab-
sorber fitting and air hose. Refer to
ACS SYSTEM
LEAK TEST (WITH B.U.D.S.)
.
NOTICE
Never screw shock absorber air
hose by using the air hose fitting only. To
avoid damaging the shock fitting threads, in-
stall a wrench on the shock fitting to hold it in
place while screwing the air hose fitting.
48 vmr2010-004
