4. Three units of alpha measurement are available:
0.000 cpm (counts per minute).
0.000 uCi/m x m (micro-Curie per square meter).
0.000 DPM/cm x cm (disintegrations per minute
per 100 square centimeter*)
(*100 square centimeters implied, but not shown)
Press INC (ā) to sequentially select from available alpha displays. Refer to the
Alpha probe's functional flow diagram for available modes.
Note: Pressing and releasing the SET button will zero the displayed rate and
empty the digital count rate filter.
5. Press and release AUDIO to activate the sounder as desired.
6. Turn off ADM300, replace protective cover, and disconnect probe.

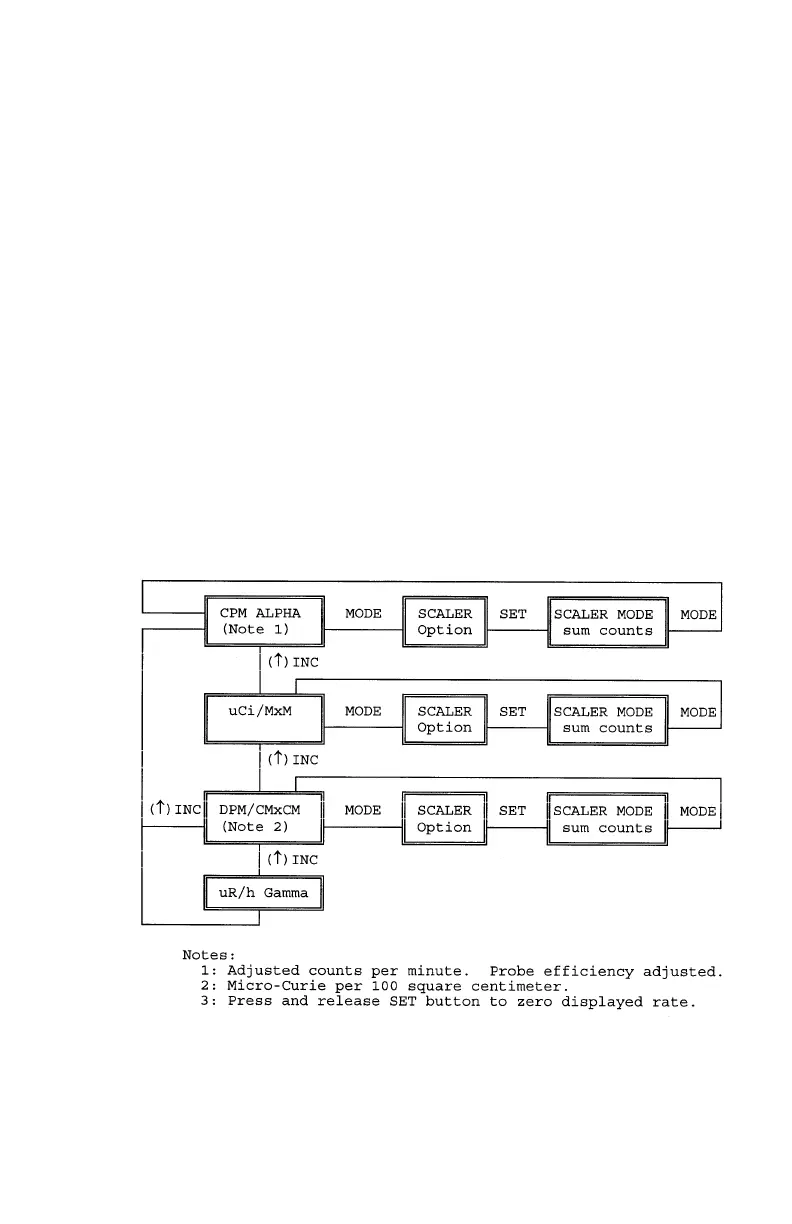

AP100A Alpha Probe Displayed Function Flow Diagram
29
