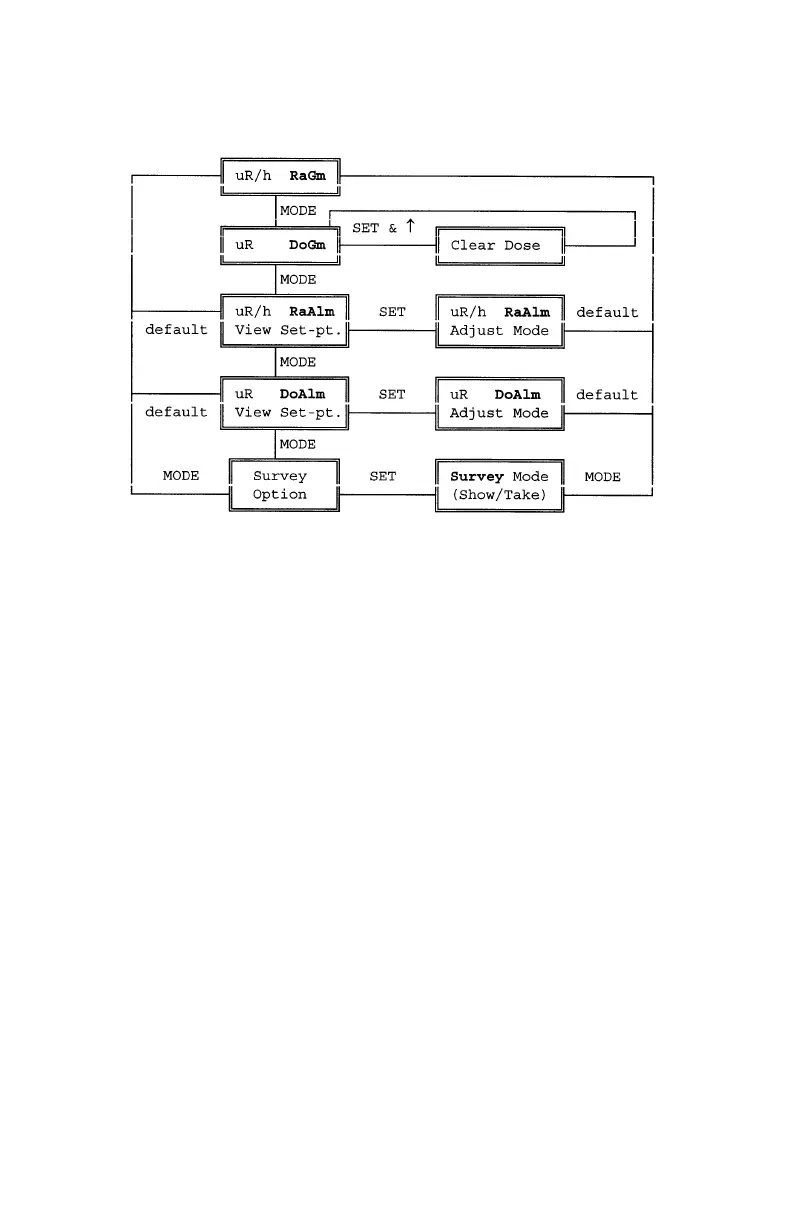

BGP100 Gamma probe displayed function flow diagram
2.2.5.4 X-RAY PROBE, XP100
1. With the survey meter turned OFF, connect the probe cable to the 7-pin
connector on the probe and the other end of the cable to the ADM300 7-pin
connector.
2. Turn the survey meter power ON. The unit displays "Please Wait", "X-RAY
probe", then units of measurement.
Note: If the unit does not indicate probe is attached, refer to Chapter 3, Operator
Maintenance, for trouble shooting procedures.
Refer to the X-ray probe's functional flow diagram for available modes.
3. To monitor X-ray radiation, point the probe window toward the suspected
source.
4. Press and release AUDIO to activate the sounder as required or desired.
5. Turn off ADM300 and disconnect probe.
