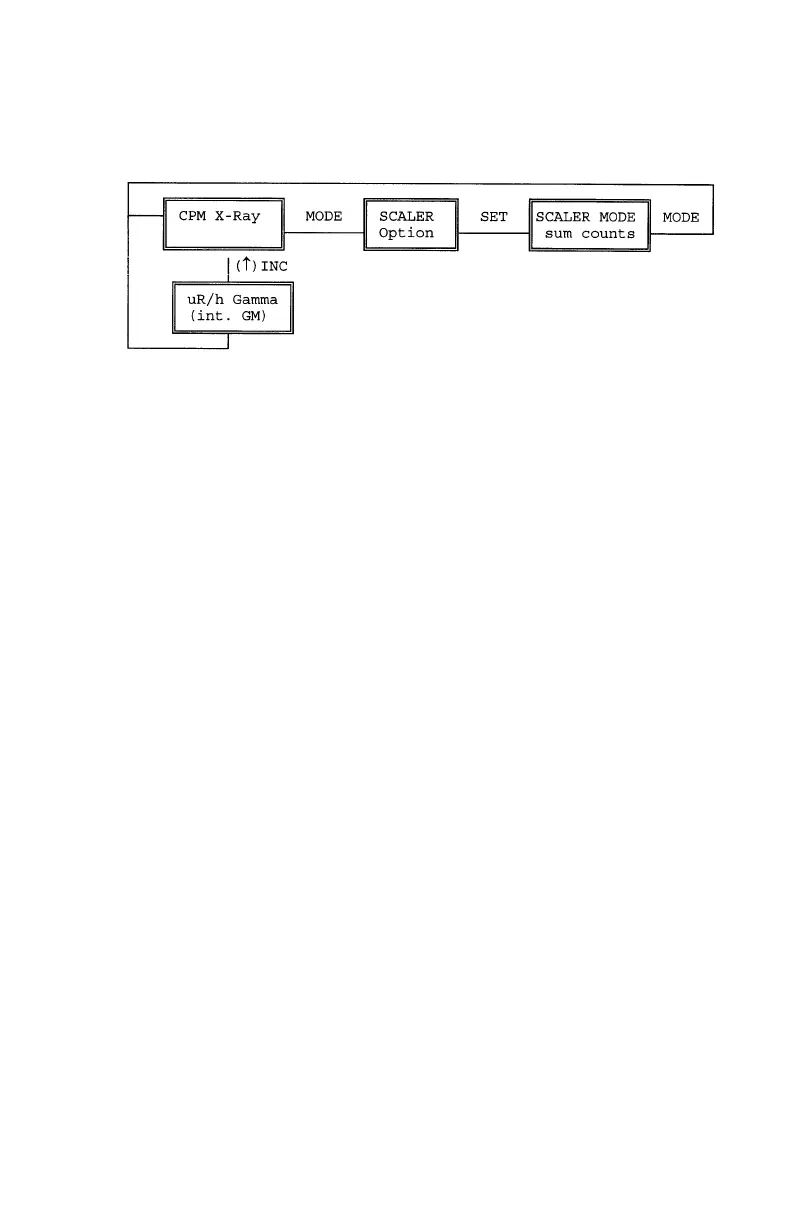

XP100 X-Ray Probe Displayed Function Flow Diagram
2.2.2.5 NEUTRON PROBE, NP100
1. With the survey meter turned OFF, connect the probe cable to the 7-pin
connector on the probe and the other end of the cable to the ADM300 7-pin
connector.
2. Turn the survey meter power ON. The unit displays "Please Wait", "Neutron
Probe", then display units of measurement.
Note: If the unit does not indicate probe is attached, refer to Chapter 3, Operator
Maintenance, for trouble shooting procedures.
The unit begins to measure Neutron radiation.
Refer to the Neutron probe's functional flow diagram for available modes.
3. Press and release AUDIO to activate the sounder as desired.
Note: The ADM300 internal low range GM tube is still active with the Neutron
probe. Press and release the INC (ā) button to toggle between neutron displays
and gamma displays. See flow diagram below.
4. Turn off ADM300 and disconnect probe.
33
To Next Page
