Chapter 3 Controls and Connectors
18 Lynx DSA User's Manual - 9240227J
Rear Panel Connectors
The Rear Panel connectors are summarized here. For each connector's technical data,
refer to the Specifications Appendix on page 131.

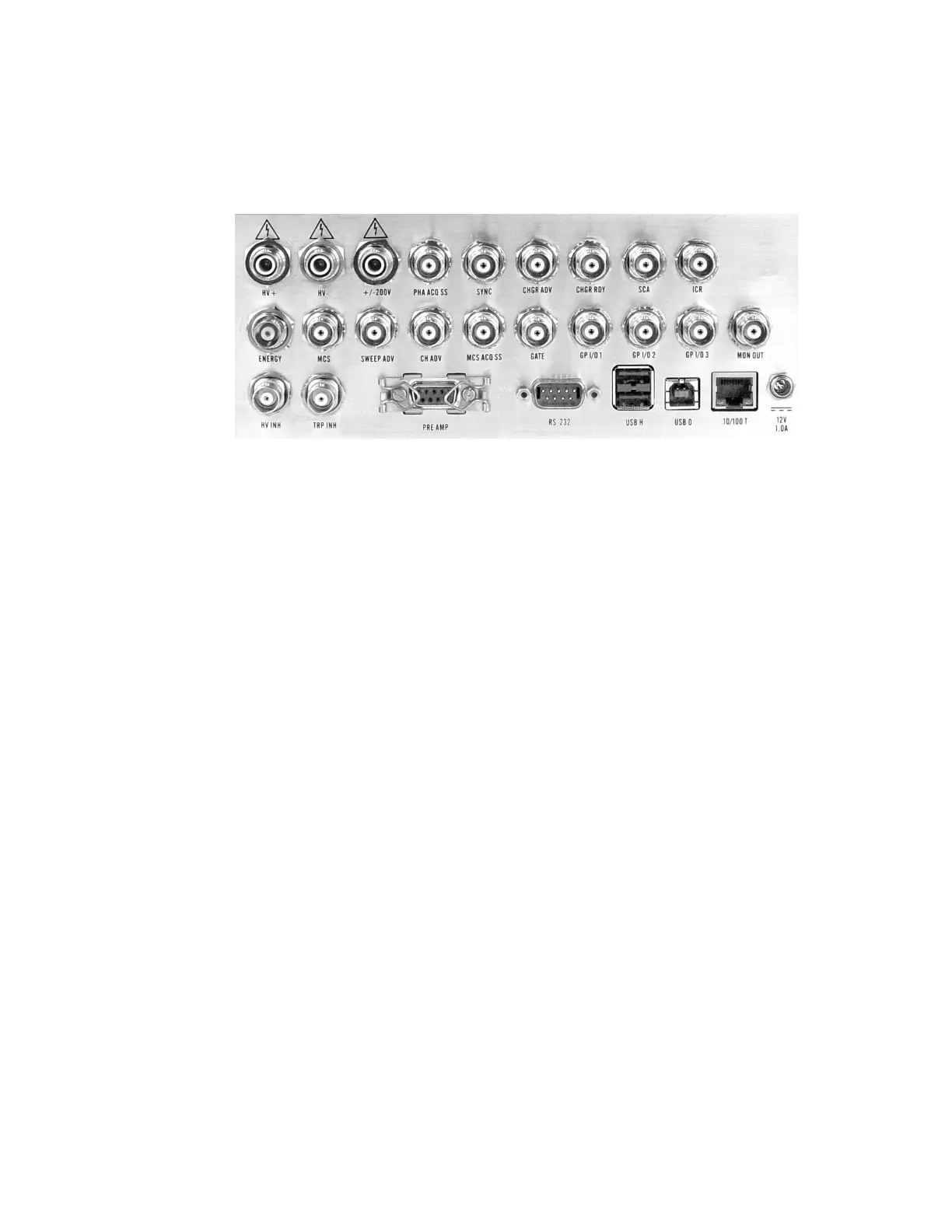

Figure 6: Rear Panel Connectors
Inputs
CHGR RDY
Accepts Sample Changer Ready signals; polarity is software selectable.
GATE – for Coincidence /Anti-coincidence
Coincidence / Anticoincidence signal input; polarity is software selectable.
ENERGY
Accepts energy signals from a detector / preamplifier; polarity is software selectable.
HV INH
High Voltage Inhibit signal input. Accepts the preamplifier's Inhibit signal to shut
down the HVPS if the detector is above its safe operating temperature; the polarity of
this input is software-selectable.
MCS
Accepts MCS input signals.
MCS ACQ SS
Accepts external signals to start/stop data acquisition if using MCS mode; two
software selectable modes (one for Start, Stop, or Start & Stop modes; the other for
Suspend & Resume mode).
MCS CH ADV
MCS Channel Advance accepts external MCS channel advance signals.
