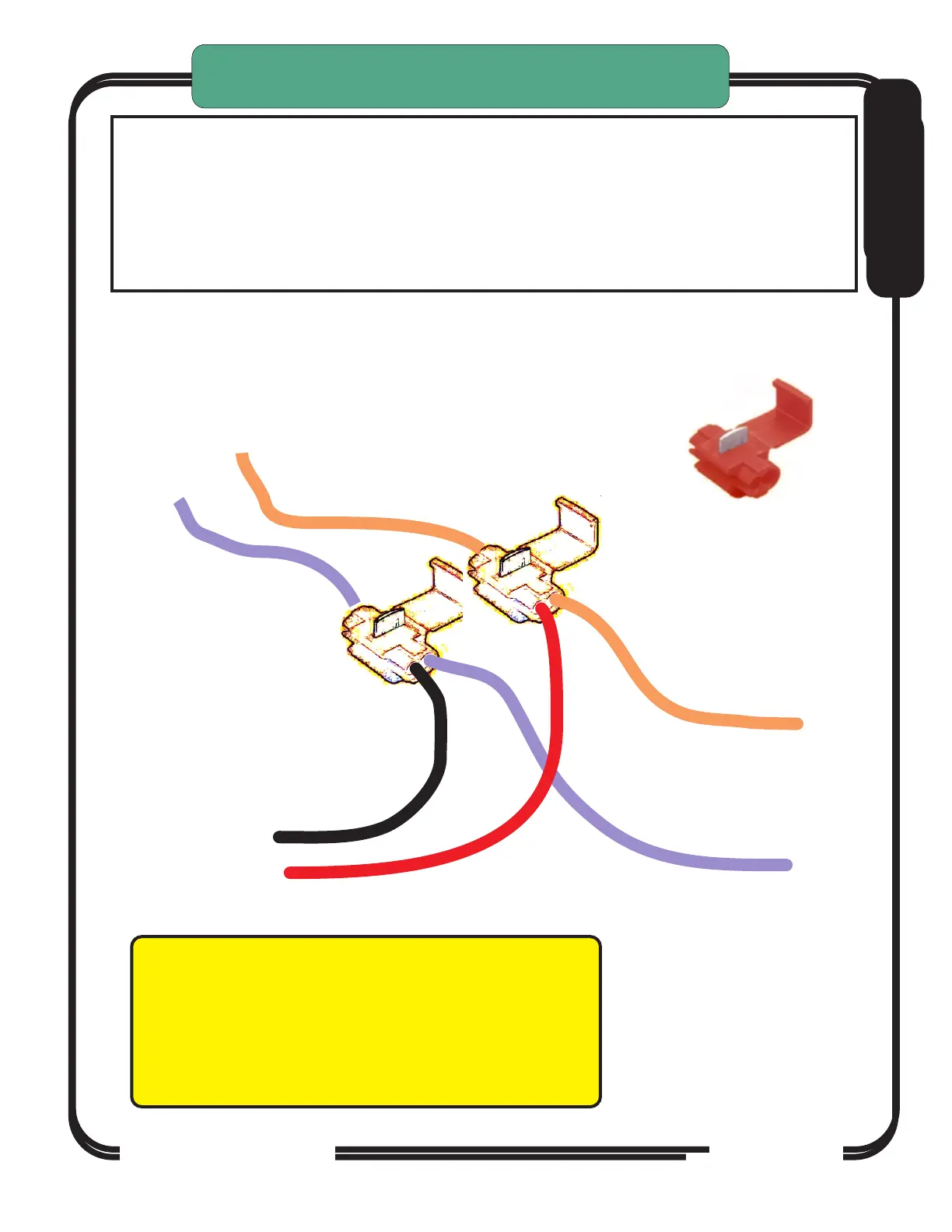

Use ScotchLoc IDC Splices (RED) to tie Torch Switch output on THC Sensor
(J10) Screw Terminals. Locate Orange and Violet wires at J10 in the
PowerMAX box and tap each wire as shown. To test short two screw
terminals on J10 THC Sensor and torch should fire (Plasma Unit on)
IMPORTANT: When making any connection inside
the Plasma Unit, disconnect the unit from the AC
Line (unplug it). Do not open the case with power
on the AC line. THERE ARE DANGEROUS
VOLTAGES present in the unit anytime it is connected
to an AC source EVEN IF IT IS TURNED OFF.
Connect to Screw
terminals J10 1 & 2 on
the THC Sensor Card
FROM HAND TORCH CABLE
CONNECTING HAND TORCH TO THC SENSOR CARD
CandCNC
NOTE : Some models of plasma cutters that have a CNC connector (CPC
connector) have a safety lockout to prevent firing the hand torch remotely. The
listed connection will fire the torch the same as pulling the trigger. Both the
trigger and the software can fire the torch. There may be a way to bypass the
lock-out and use the CPC connector to fire the torch. Contact us via e-mail for
other possible solutions on plasma cutters that have a CPC connector.
Wire colors will vary
by brand
E
USING THE RAV-01 TO FIRE THE TORCH
(for plasam units with no external connector
to fire the torch or with a hand torch)
