CandCNC
Page 22
WHT
RED
YEL
BLK
J19 Located inside Cabinet on PC Board
To TORCH -
(ELECTRODE WIRES)
DANGER
HIGH VOLTAGE
WHEN TORCH
is ON
START SIGNAL
ARC XFR
J15
J16
Use 18 or 20ga insulated hookup wire
insulation rating to 400V minimum.
TIP VOLTS CONNECTION
J15 and J16 are Slide-on connectors located on the PCB
+
-
Connect to THC SENSOR PWM VIA
CAB-31 Cable
internal
connections
1
1
PART # CCAB-31
To PWM Module
This is for units with a hand torch that do not have the rear CPC connector
Stereo cable to PWM module
RAV-02
HYPERTHERM 1000/1250/1650

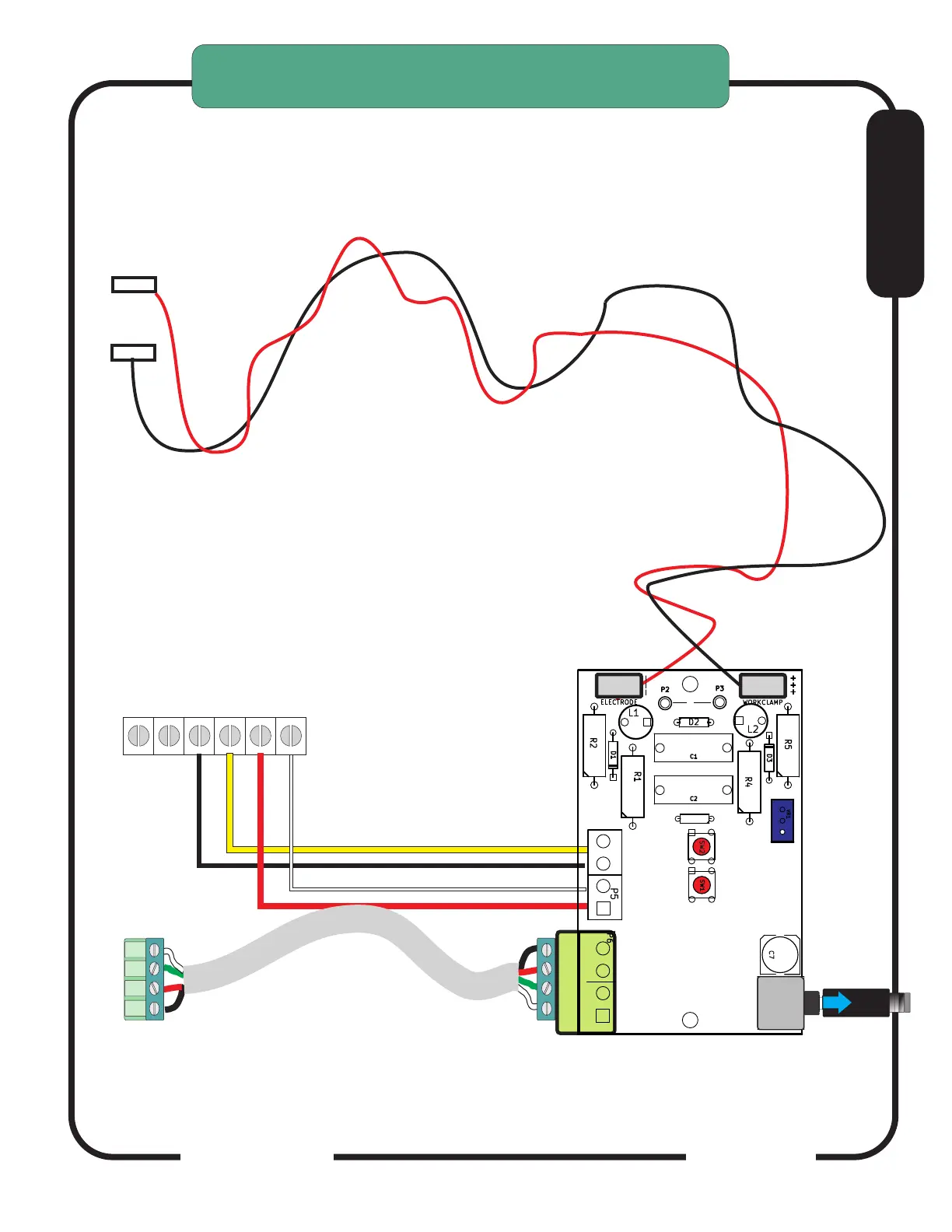

Connecting THC SENSOR PWM CARD
Page: 75
Arc OK
Arc OK
Torch
Fire
Torch
Fire
Arc OK
Test
Torch Fire
Test
To PWM
RAV-02 Version
(THC SENSOR Rev17)
MO
V
R3
Volts Cal
DIVIDED
VOLTS OUT
Apprx 7:1
F
To Next Page
