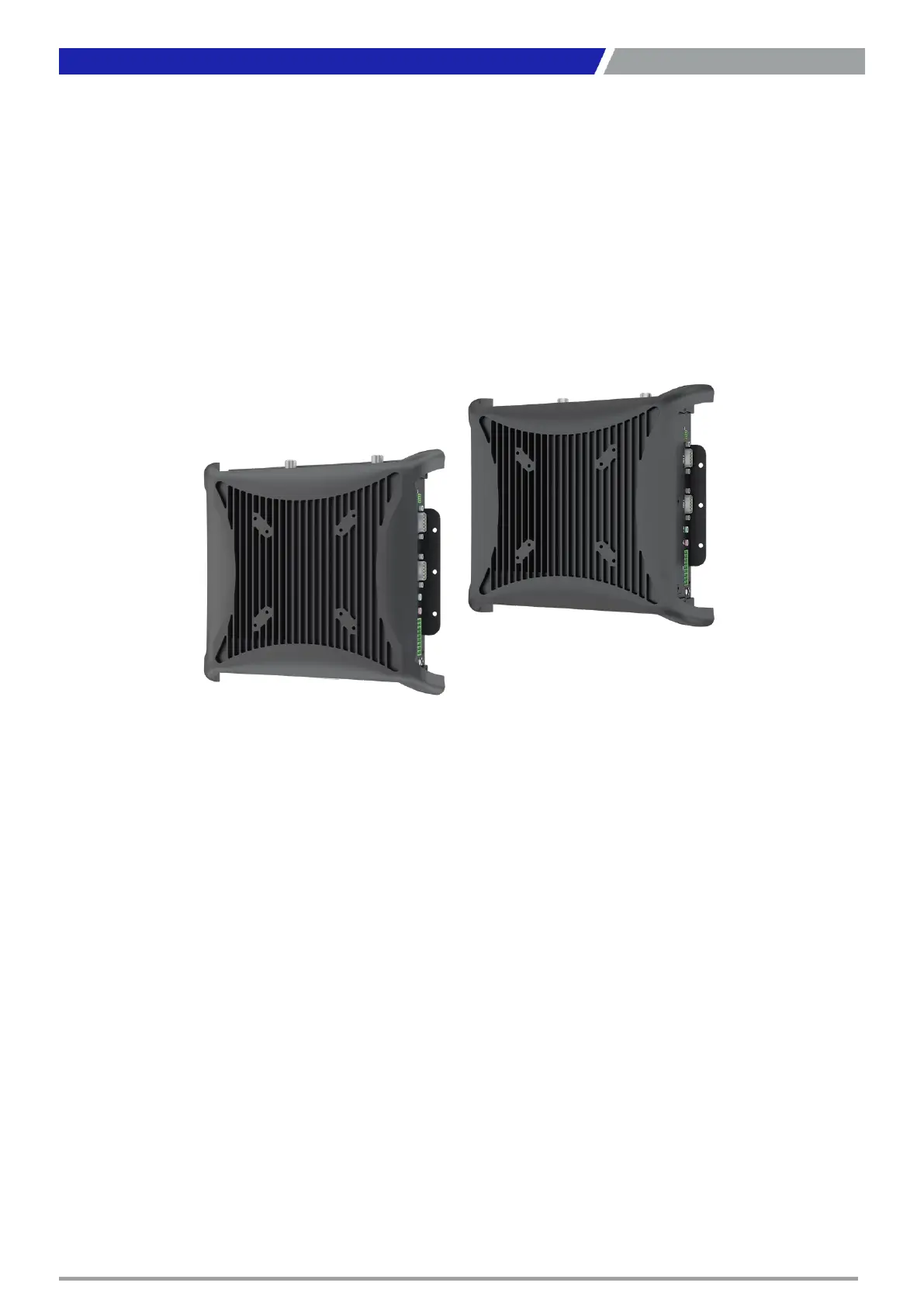

1.1 Overview
The PC400 series PC module is based on 7
th
Gen. Intel® Core™ i5-7300U (up to 3.5GHz) / i3-7100U
(2.4GHz) Dual Core processor. It supports Multi-Mode Display Module (MDM) technology which makes
it more flexible in system maintaining and upgrading. It also offers modularize expansion I/O, rich
connectivity interfaces, wide range (9~50VDC) DC power input, and high reliability even operating in
temperature extremes (-40~+70 ° C).
Featuring with completely cable-less designed and high functional, PC400 series are ruggedized display
systems that can operate in harsh environments and easy to install and maintain. A build in over
voltage protection (OVP), over current protection (OCP), reserve voltage protection, and wide range DC
power input makes PC400 series are safety system for all industrial applications.
Chapter 1: Product Introductions
1.1.1 Key Features
 Intel® 7
th
Gen (Kaby Lake-U) Processor Core™ i5-7300U up to 3.5GHz / Core™ i3-7100U, 2.4 GHz
 1x 260-pin DDR4 SODIMM. max up to 16GB
 1x 2.5” SATA HDD bay support RAID 0, 1
 1x mSATA (shared by 1x Mini PCIe), 1x CFast (shared by 1x mSATA), 2x SIM socket
 2x full-size mini PCIe for communication or expansion modules
 2x LAN, 1x VGA, 1x DisplayPort, 1x Dual Channel 24 bit LVDS
 4x RS-232/422/485, 4x USB 3.0, Audio
 8x DI + 8x DO with isolation
 1x Universal I/O Bracket for Expansion (PC410 Only)
 9 to 50VDC wide range power input
 -40°C to 70°C extended operating temperature

C&T PC400 Series Specifications

General

Brand	C&T
Model	PC400 Series
Category	Control Unit
Language	English
