PC400 / PC410 l User’s Manual
Switch Definition
1-2 (Right)
ATX Power Mode
Default
2-3 (Left)
AT Power Mode
22

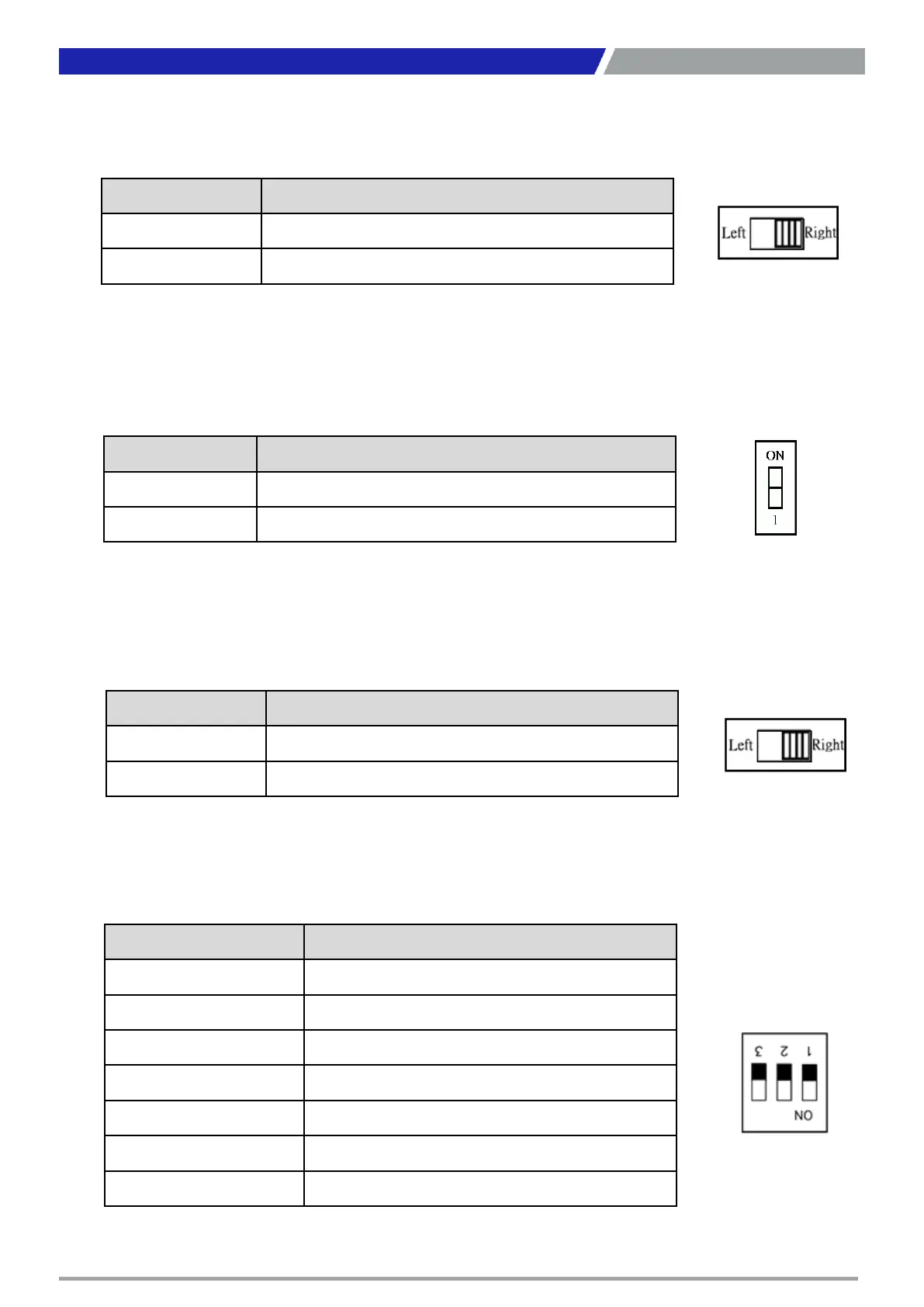

2.3 Switches Definitions
AT_ATX1: AT / ATX Power Mode Switch
CLR_CMOS1: Clear BIOS Switch
Switch Definition
Off Normal Status (Default)
ON Clear BIOS
Chapter 2: Switches and Connectors
Switch Definition
1-2 (Left)
PC
Power ModeDefault
2-3 (Right)
Power Ignition Mode
CAR_PWR2: PC / Car Mode Switch
Switch 1 / 2 / 3 Definition
ON / ON / ON
3 sec.
Default Shutdown Timer by O.S
ON / ON / OFF
1 min.
ON / OFF / ON
5 min.
ON / OFF / OFF
10 min.
OFF / ON / ON
30 min.
OFF / ON / OFF
1 hour
OFF / OFF / ON
2 hour
DELAY_TIME1: Power off delay time setup Switch
