Canon 40D Digital Camera Overview Manual
July 10, 2008 © 2008 Consumer Programs Incorporated Page 31
PROPRIETARY & CONFIDENTIAL

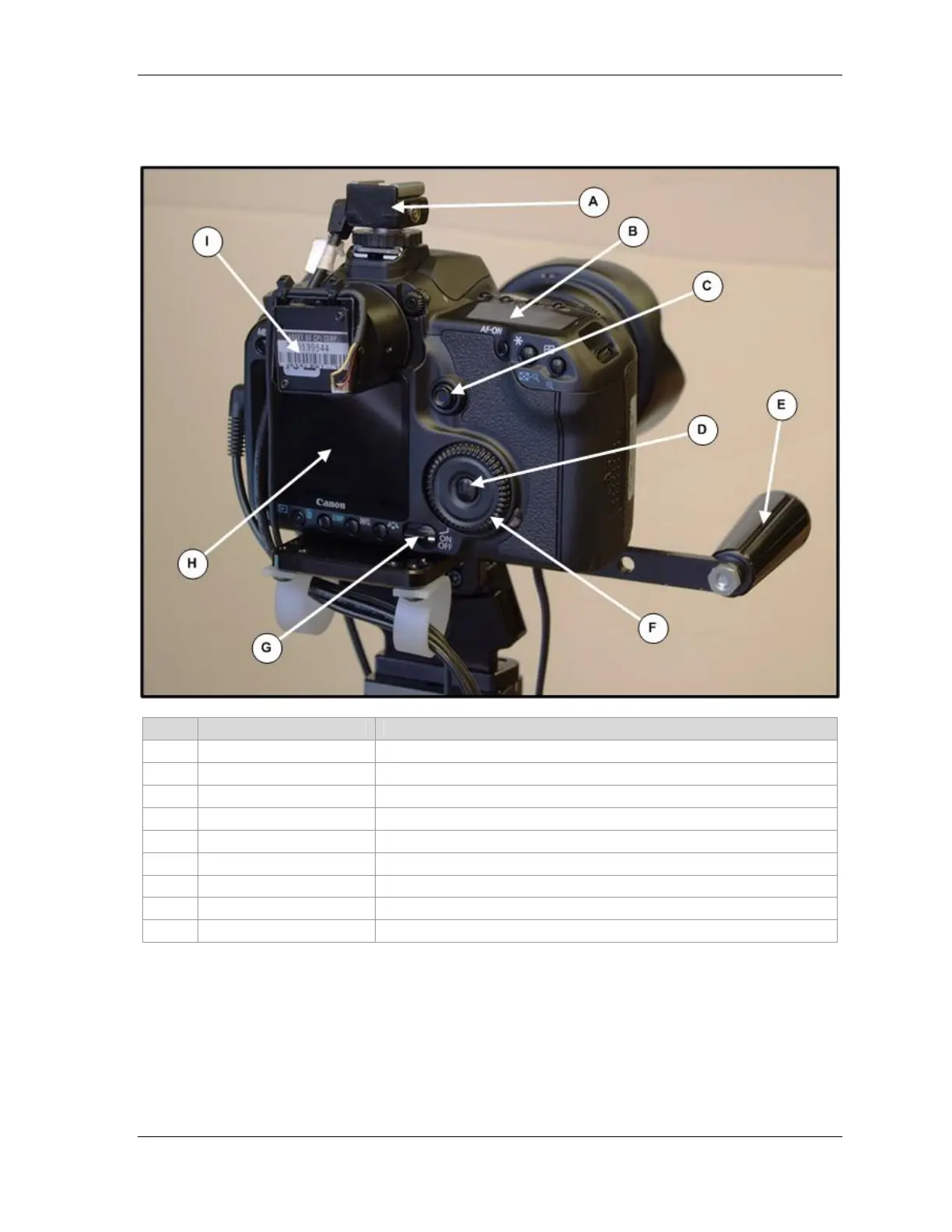

CANON 40D DIGITAL CAMERA – BACK
LABEL NAME PURPOSE
A Flash-Sync Adapter Connects Flash-Sync Cable to camera
B Control Panel Displays camera settings
C Multi-Controller Used to navigate camera menus
D Set Button Used to select options in internal camera menus
E Versaflip handle Rotates the camera
F Quick Control Dial Used to navigate camera menus
G Power Switch Turns camera on and off
H LCD Monitor Not used
I Eye Piece Camera Sends a live video feed from the camera viewfinder to the Live View Monitor
