Other useful settings

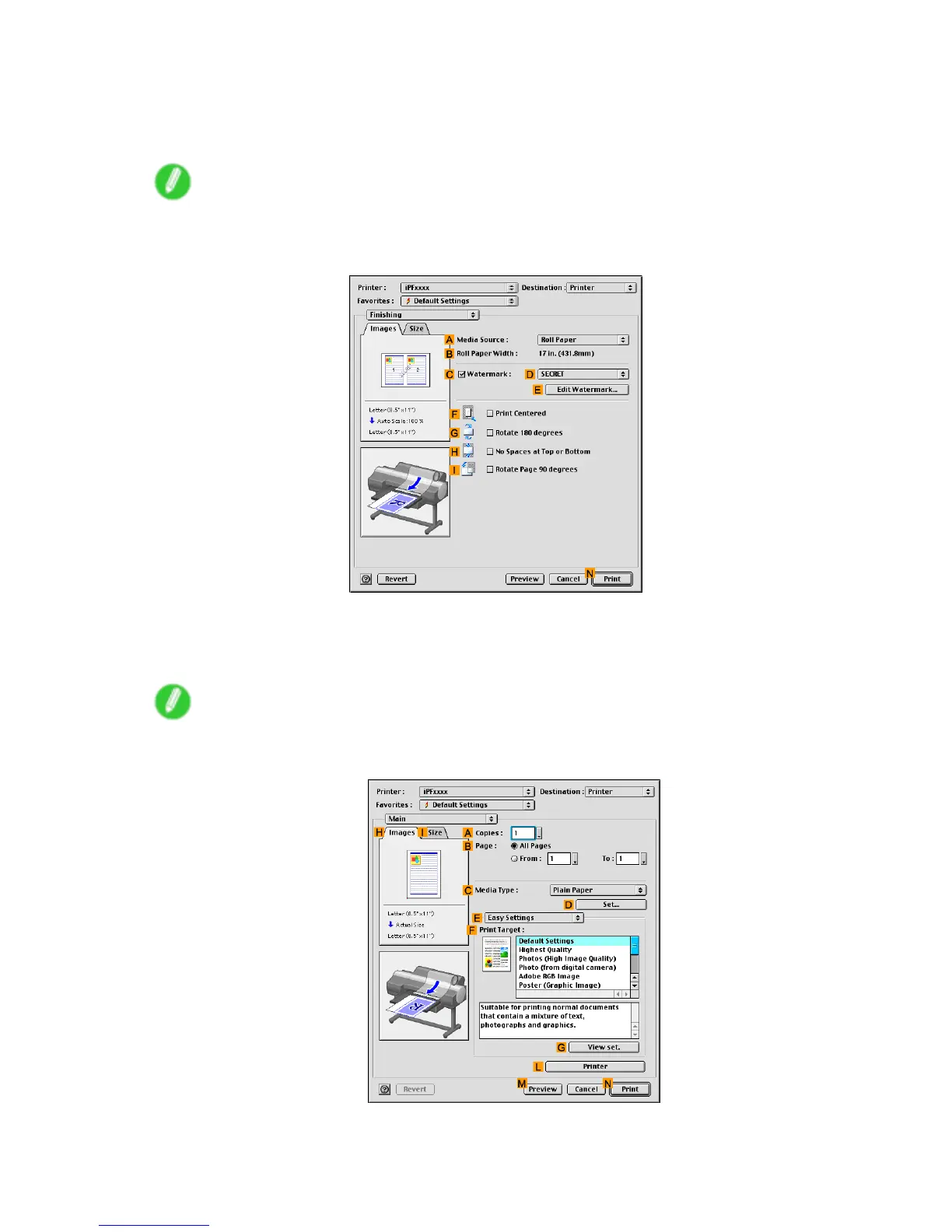

7. In the C Media T ype list, select the type of paper that is loaded. In this case, click Plain Paper .
8. After conrming that E Easy Settings is selected, click CAD (Line Drawing) in the F Print
T arget list.
Note
• Y ou can check the settings values selected in the F Print T arget list by clicking G V iew set. .
9. Access the Finishing pane.
10. Click Roll Paper in the A Media Source list.
1 1. Make sure the width of the loaded roll is displayed in the B Roll Paper W idth list-in this case,
ISO A2/A3 (420.0mm) .
Note
• If the width of the loaded roll is not displayed in B Roll Paper W idth , click L Printer on the Main
pane and update the printer information.
Enhanced Printing Options 439
