Canon imagePROGRAF iPF815 Service Manual

Chapter 3
3-12
d. Replacing consumable parts during transportation
During [MOVE PRINTER], if a message to replace consumable parts appear, check the consumable parts counter from service mode and replace the necessary
consumable parts that is over the threshold value of counter in the following table.
See "Service mode" about how to check the counter.
The consumable parts to be replaced and counter to be reset depends on the [LEVEL].

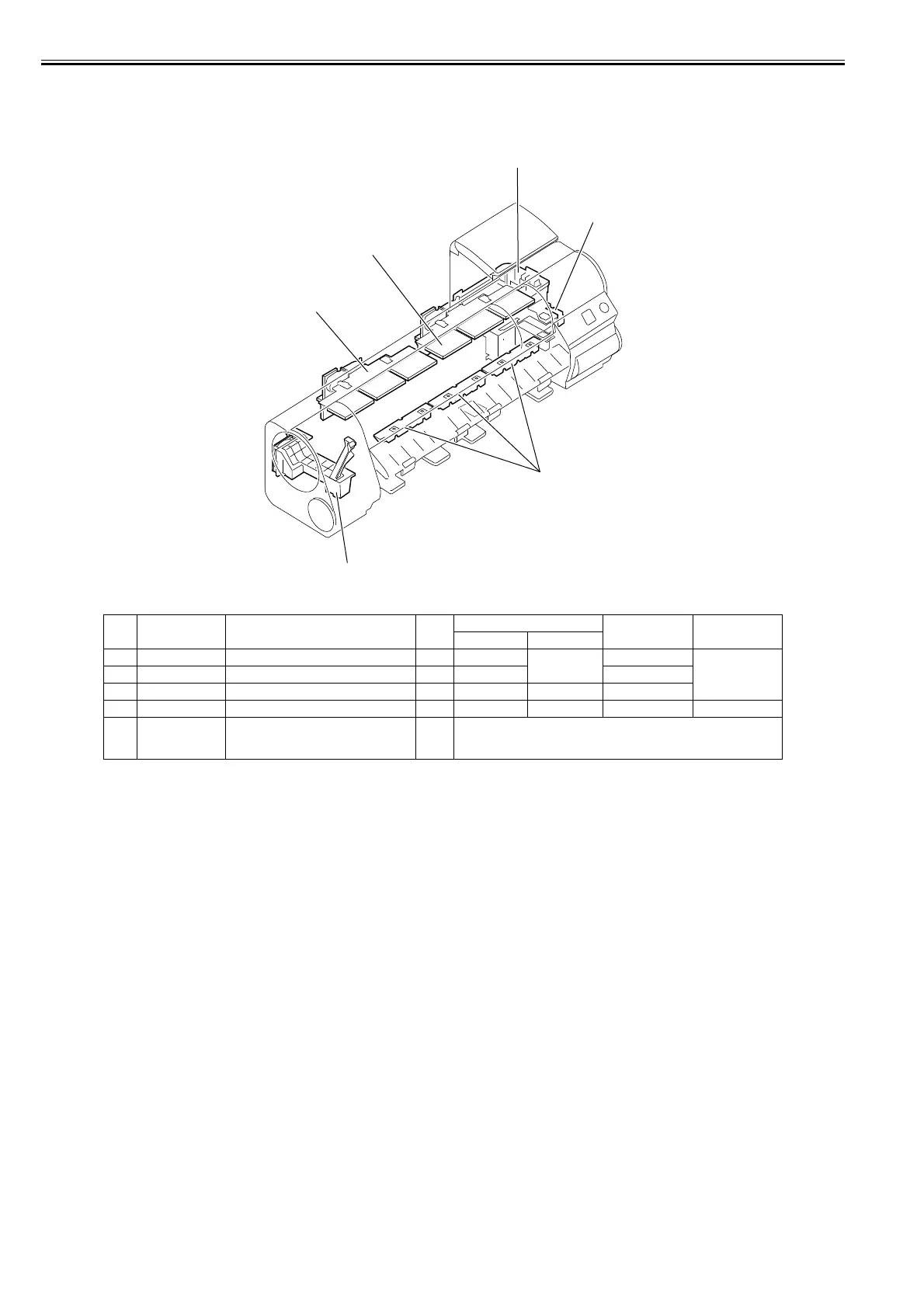

F-3-20
No Part number Name Q'ty
Service Mode
Threshold value of
counter (Unit: ml)
Level x (Main
menu)
PARTS xx COUNTER x
[1] QM3-4814 WASTE INK BOX UNIT (L) 1 A1 A 114 1, 2, 3
[2] QL2-2822 WASTE INK ABSORBER UNIT 3 A2/A3/A4 109
[3] QM3-4844 HEAD MANAGEMENT SENSOR UNIT 1 K1 K 56
[4] QM3-4846 MIST FAN UNIT 2 V1 V 241 2, 3
[5] QM3-4911 INK SUPPLY MOUNT UNIT 1 If there is waste ink, perform waste ink disposal or parts replacement. And
confirm that the ink leakage has not caused to the surrounding area of ink
supply mount unit.
[1]
[5]
[4]
[4]
[3]
[2]

Canon imagePROGRAF iPF815 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Pigment matte black, Yellow
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Package weight	301200 g
Bundled software	Printer Driver Extra Kit for Windows/Mac (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Print Plug-in for Microsoft Word/Excel/PowerPoint for Windows, Digital Photo Front-Access for Windows, PosterArtist Lite for Windows
Media thickness	0.07 - 0.8 mm
Roll top margin	3 mm
Maximum print size	-
Maximum roll length	18 m
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1
ISO B-series sizes (B0...B9)	B0, B2
Electromagnetic compatibility	RoHS Directive, WEEE, Executive Order (USA)
Power requirements	AC 100 - 240V, 50/60Hz
Power consumption (off)	1 W
Power consumption (standby)	6 W
Power consumption (typical)	190 W
Certification	UL (USA), C-UL (Canada), S mark (Argentina), CE mark (EN60950, EN55022 classB, EN61000-3-2, EN-61000-3-3, EN55024) (EU), CB certification (Others), FCC Class B (USA), IC Class B (Canada)
Storage media	HDD
Internal storage capacity	160 GB
Sound power level (standby)	35 dB
Sound pressure level (printing)	52 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10/100Base-T/TX Mbit/s
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows XP (32/64 bit), Server 2003 (32/64 bit), Server 2008 (32/64 bit), Windows Vista (32/64 bit), Windows 7 (32/64 bit); Macintosh OS X 10.3.9 - 10.6 (32 bit), OS X 10.5 - 10.6 (64 bit)

Weight and Dimensions

Dimensions (WxDxH)	1892 x 975.4 x 1143 mm
