Canon imagePROGRAF iPF815 - Cutter

Chapter 4
4-19
4.3.6 Cutter
0020-5669
a) Removing the cutter
1) Remove the ejection guides.

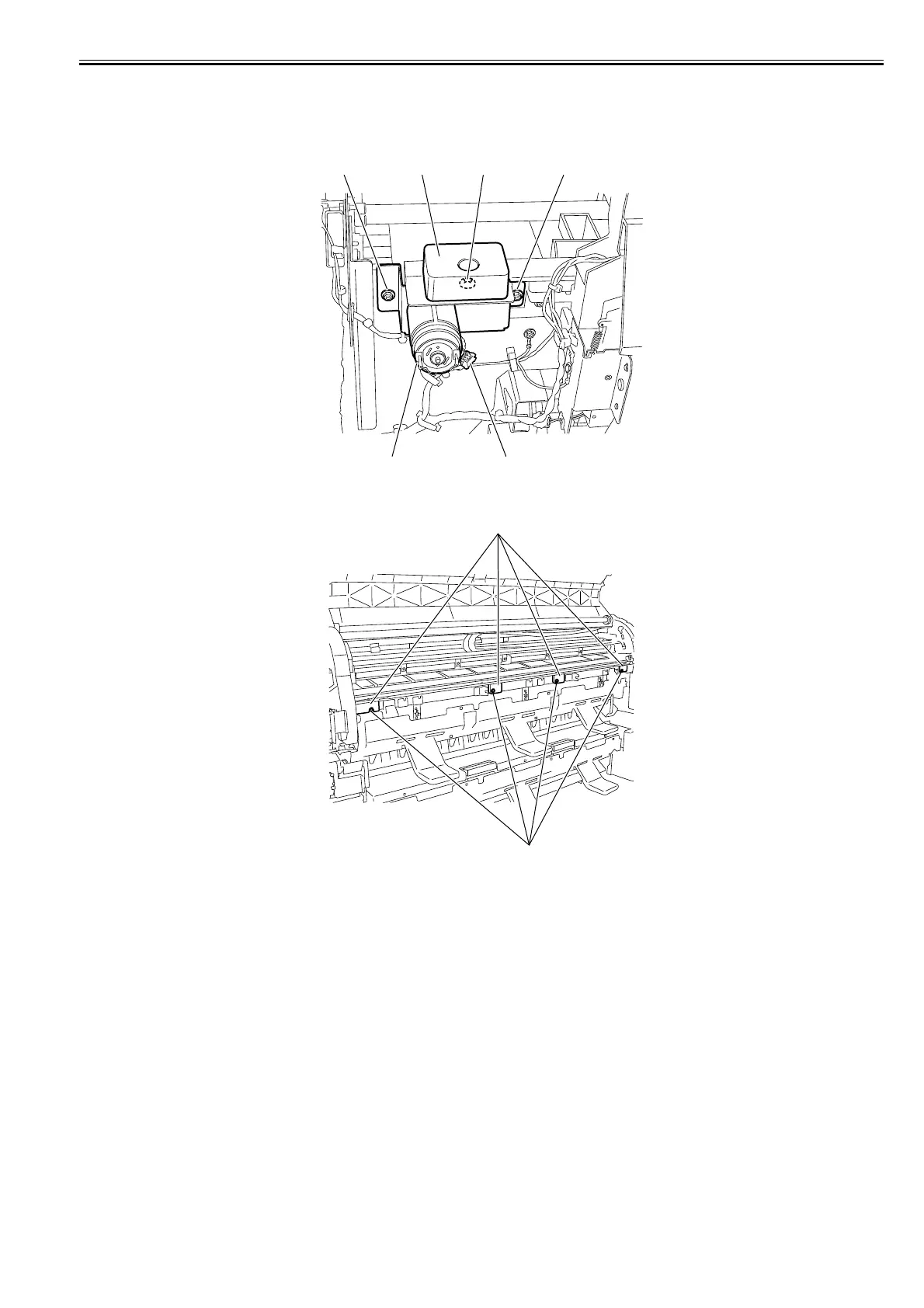

2) Remove screw [1] to remove gear cover [2]. Then, remove two screws [3] and connector [4] to remove cutter motor unit [5].
F-4-37
3) Remove four screws [4] to remove four guides [2].
F-4-38
[2]
[4][5]
[1][3] [3]
[1]
[2]
