Canon imagePROGRAF iPF815 - External Covers

Chapter 4
4-4
4.3.4 External Covers
0020-5646
a) Left circle cover (L)/Right circle cover (L)
Removing left circle cover (L)/right circle cover (L)

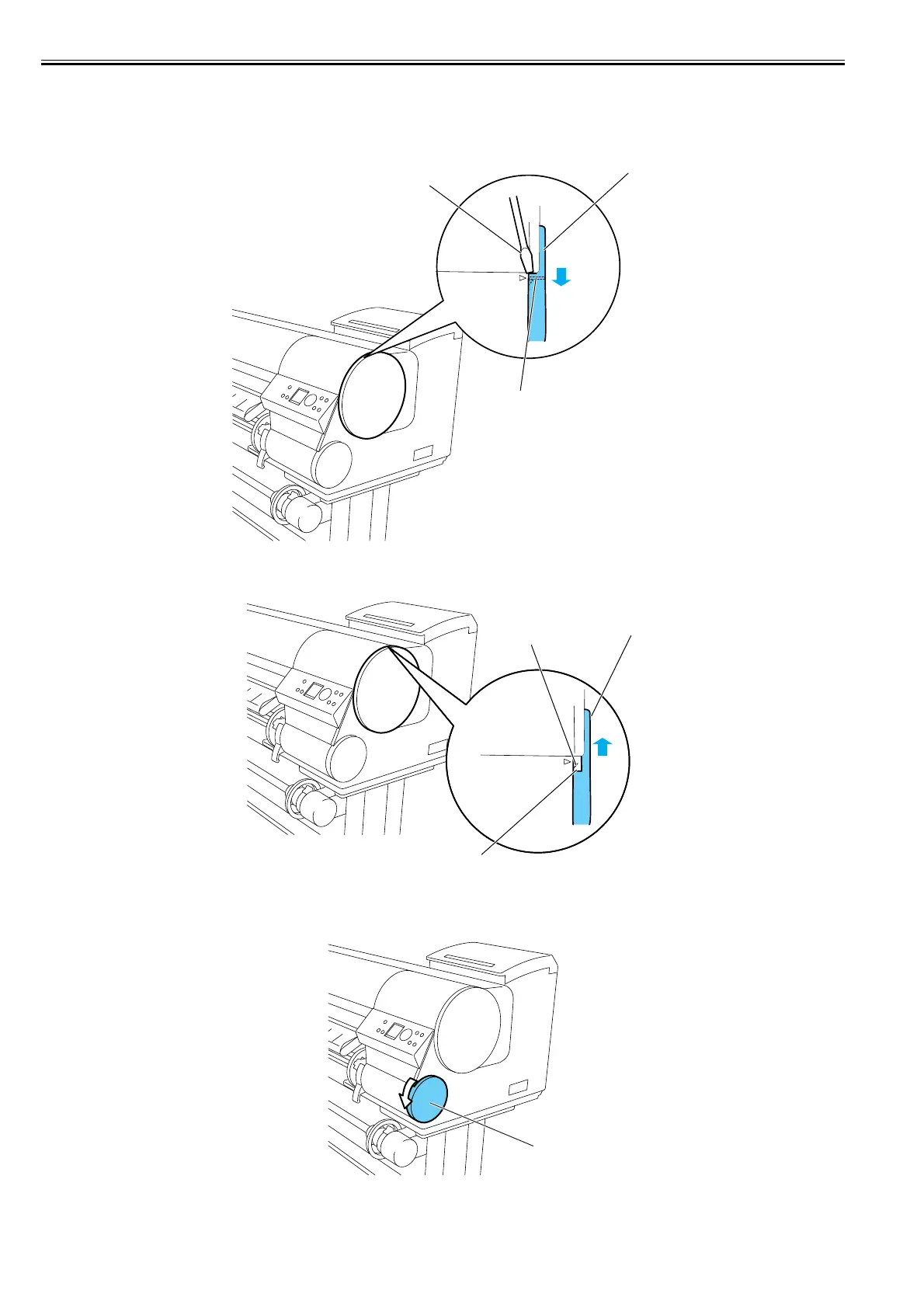

1) To remove circle cover (L) [1], insert flathead screwdriver [2] at the position shown in the figure to remove claw [3] and turn the cover forward to remove.
F-4-4
Installing left circle cover (L)/right circle cover (L)
1) Install circle cover (L) [1] with its part [2] inserted in arrow mark [3] of the right side cover and turn the cover backward to install.
F-4-5
b) Left circle cover (S)/Right circle cover (S)
Removing the left circle cover (S)/right circle cover (S)
1) Remove circle cover (S) [1] by turning it forward to remove the hook.
F-4-6
