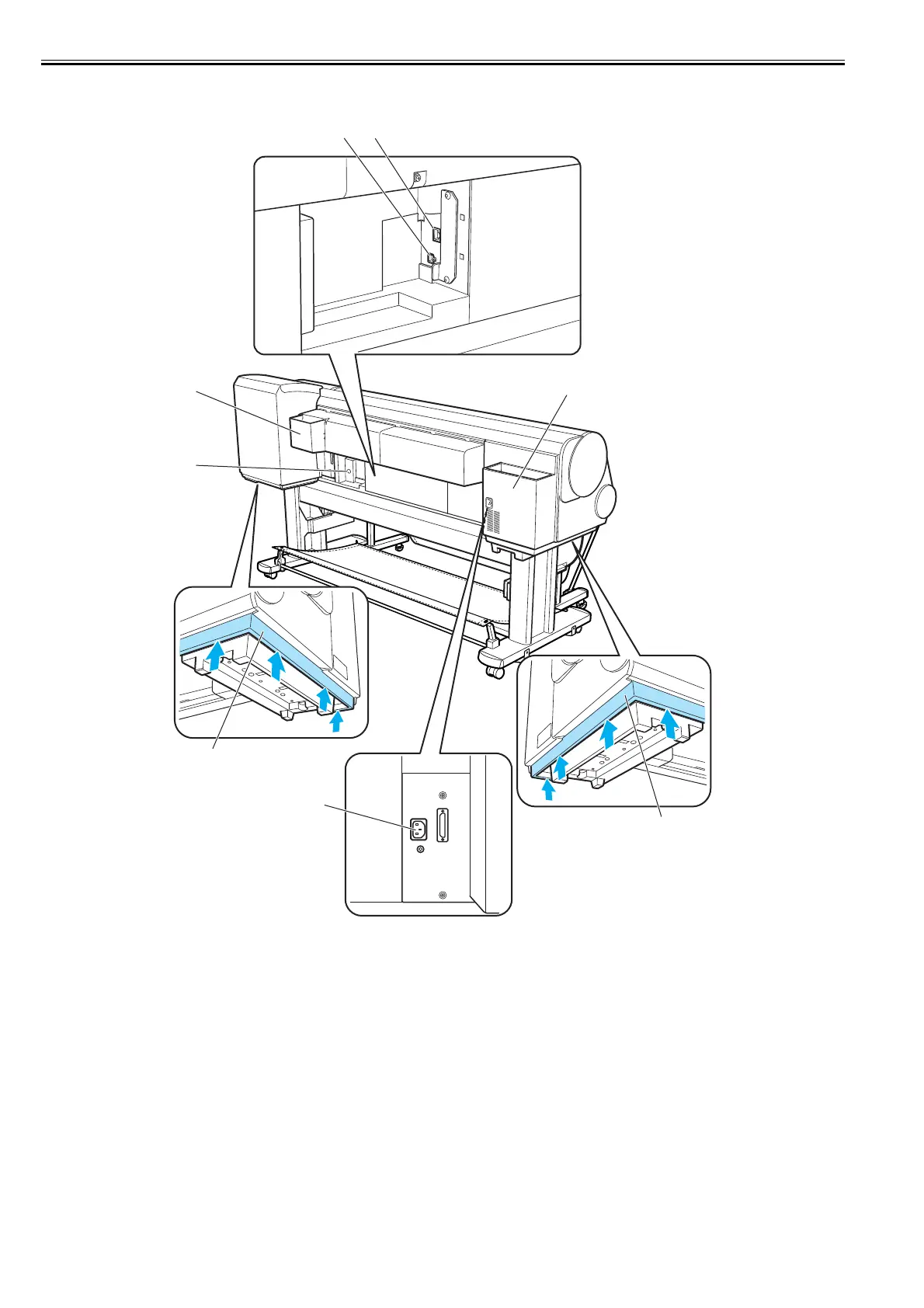

1.5.2 Rear
0025-9284
F-1-18
[1] Ethernet connector
Insert an Ethernet cable into this connector. A lamp will turn on if the Ethernet cable is connected properly and the printer is ready to communicate.
[2] USB port
Insert a USB cable into this port. Hi-Speed USB-ready.
[3] Manual pocket
Have the printer manual stowed in this pocket.
[4] Media take-up unit connector
Insert the cable a media take-up unit (option) into this connector.
[5] Power Supply Connector
Connect the power cord to this connector.
[6] Carrying handle
The carrying handle is located on both left and right sides of the bottom. Allow a team of six persons to carry the printer.
[7] Accessory pocket
Have assembly tools, roller holder attachments and so on stowed in this pocket.
[2] [1]
[3]
[4]
[5]
[7]
[6]
[6]
