Canon imagePROGRAF iPF815 Service Manual

Chapter 4
4-50

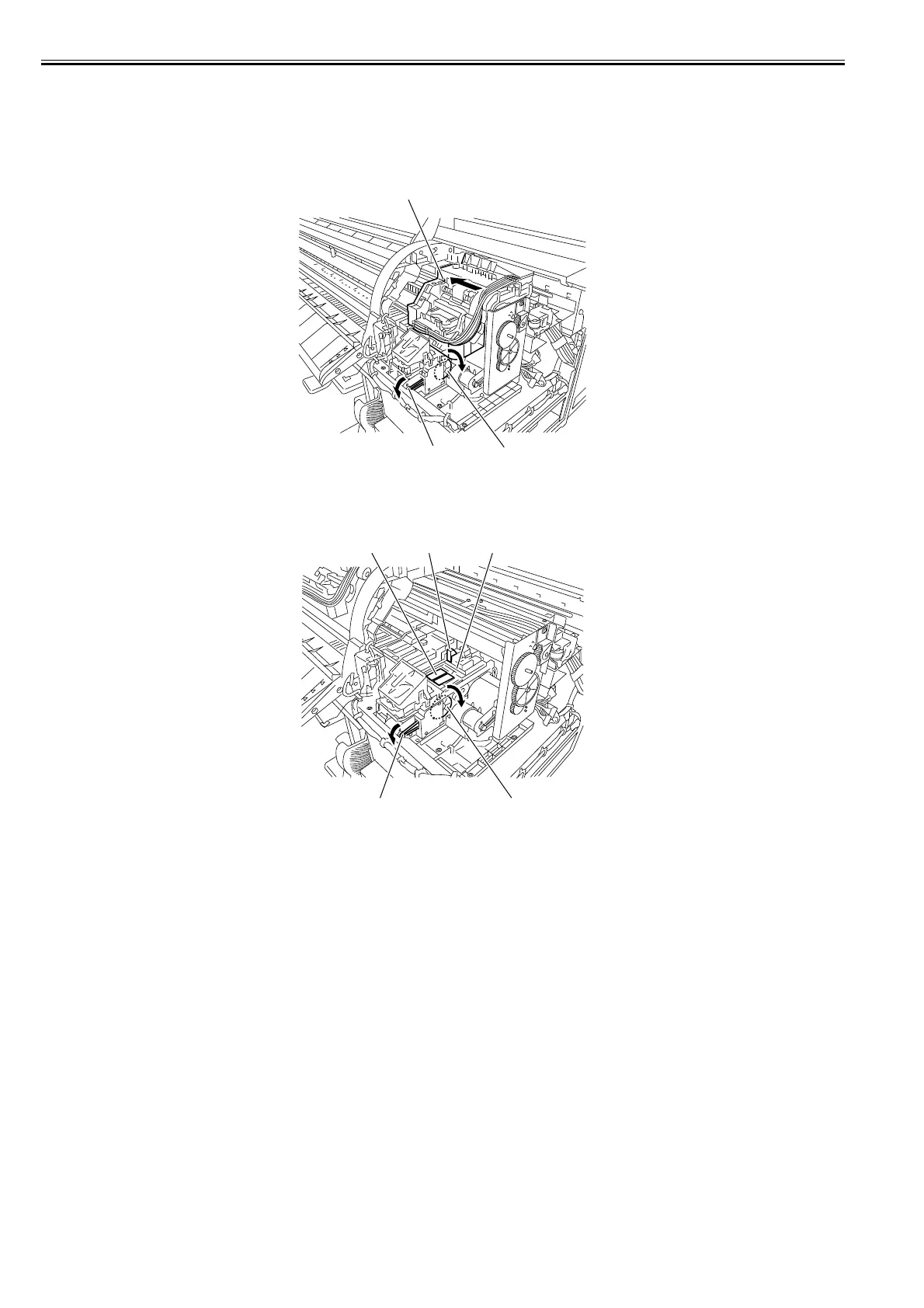

4.3.17 Opening the Cap/Moving the Wiper Unit
0020-5706
This section explains how to move the cap, carriage lock pin and wiper unit manually.
Moving carriage when the power of the printer is off, releasing carriage lock pin and uncapping must be done manually.
1. Uncapping, releasing the carriage lock pin
1) Open the upper cover and remove the right circle cover (L), right circle cover (S), right side cover, rear right cover and upper right cover.
2) Turn the gear [1] or motor pulley [2] of the purge unit toward the direction of the arrow. This will lower cap and lock pin, allowing the carriage [3] to be moved.
F-4-110
2. Moving the wiper unit
1) Open the upper cover and remove the right circle cover (L), right circle cover (S), right side cover, rear right cover and upper right cover.
2) To move the cap [3], lock pin [4] and wiper unit [5], turn the gear [1] or motor pulley [2] of the purge unit toward the direction of the arrow.
F-4-111
[2]
[3]
[1]
[4][3] [5]
[1][2]

Canon imagePROGRAF iPF815 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Pigment matte black, Yellow
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Package weight	301200 g
Bundled software	Printer Driver Extra Kit for Windows/Mac (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Print Plug-in for Microsoft Word/Excel/PowerPoint for Windows, Digital Photo Front-Access for Windows, PosterArtist Lite for Windows
Media thickness	0.07 - 0.8 mm
Roll top margin	3 mm
Maximum print size	-
Maximum roll length	18 m
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1
ISO B-series sizes (B0...B9)	B0, B2
Electromagnetic compatibility	RoHS Directive, WEEE, Executive Order (USA)
Power requirements	AC 100 - 240V, 50/60Hz
Power consumption (off)	1 W
Power consumption (standby)	6 W
Power consumption (typical)	190 W
Certification	UL (USA), C-UL (Canada), S mark (Argentina), CE mark (EN60950, EN55022 classB, EN61000-3-2, EN-61000-3-3, EN55024) (EU), CB certification (Others), FCC Class B (USA), IC Class B (Canada)
Storage media	HDD
Internal storage capacity	160 GB
Sound power level (standby)	35 dB
Sound pressure level (printing)	52 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10/100Base-T/TX Mbit/s
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows XP (32/64 bit), Server 2003 (32/64 bit), Server 2008 (32/64 bit), Windows Vista (32/64 bit), Windows 7 (32/64 bit); Macintosh OS X 10.3.9 - 10.6 (32 bit), OS X 10.5 - 10.6 (64 bit)

Weight and Dimensions

Dimensions (WxDxH)	1892 x 975.4 x 1143 mm
