Chapter 4

4-32

4.3.11 Waste Ink Collection Unit

0020-5682

In disassembling the waste ink collector, watch for ink leaks from the parts removed. When components are removed, put them in a PVC bag or the like to prevent

ink leaks from part [A] enclosed.

Expandable parts of the waste ink collector come bundled with PVC bags in which to package replaced parts in the service parts package.

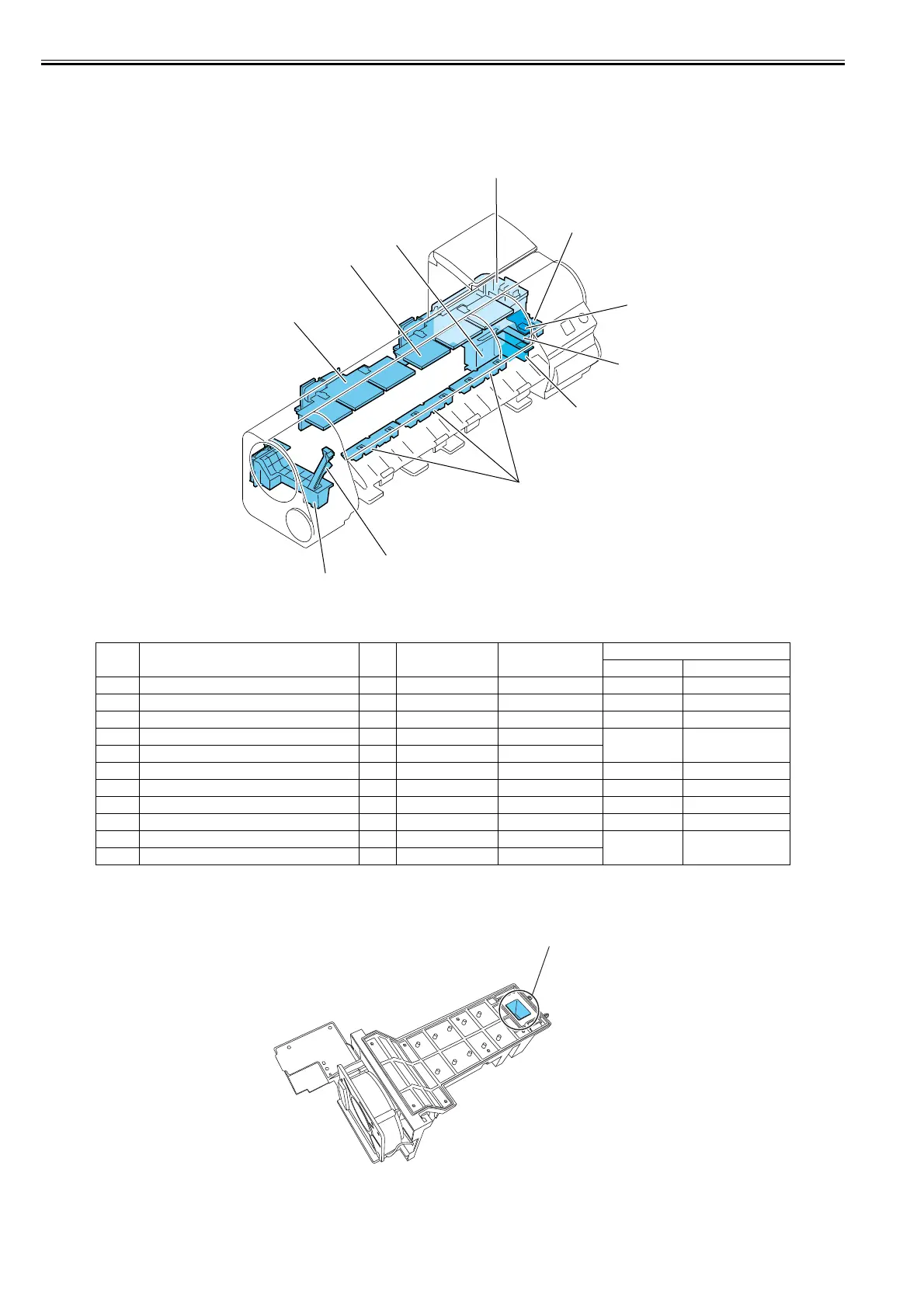

F-4-67

T-4-1

[1] BP maintenance jet ink BOX unit

F-4-68

No Name Q'ty Part number Consumables

Service Mode (Counter)

PARTS xx COUNTER x

[1] BP maintenance jet ink BOX unit 1 QM3-4814 Yes A1 A

[2] BP maintenance jet duct 1 QL2-2831 - -

[3] Platen ink BOX unit 3 QL2-2822 Yes A2/A3/A4 A

[4] Platen suction duct 1 QM3-4816 Yes A5 A

[5] Platen suction ink BOX unit 1 QM3-4828 Yes

[6] Head management sensor unit 2 QM3-4844 Yes K1 V

[7] HP maintenance jet tray unit 1 QM3-4912 Yes H2 H

[8] Ink tank unit waste ink tray 1 QM3-4911 - -

[9] Platen suction fan unit 1 QM3-4827 Yes A5 A

[10] Mist fan unit 1 QM3-4846 Yes V1 V

[11] Mist fan unit 1 QM3-4846 Yes

[1]

[2]

[4]

[8]

[5]

[9]

[10]

[7]

[11]

[6]

[3]

[A]
