Chapter 4
4-18

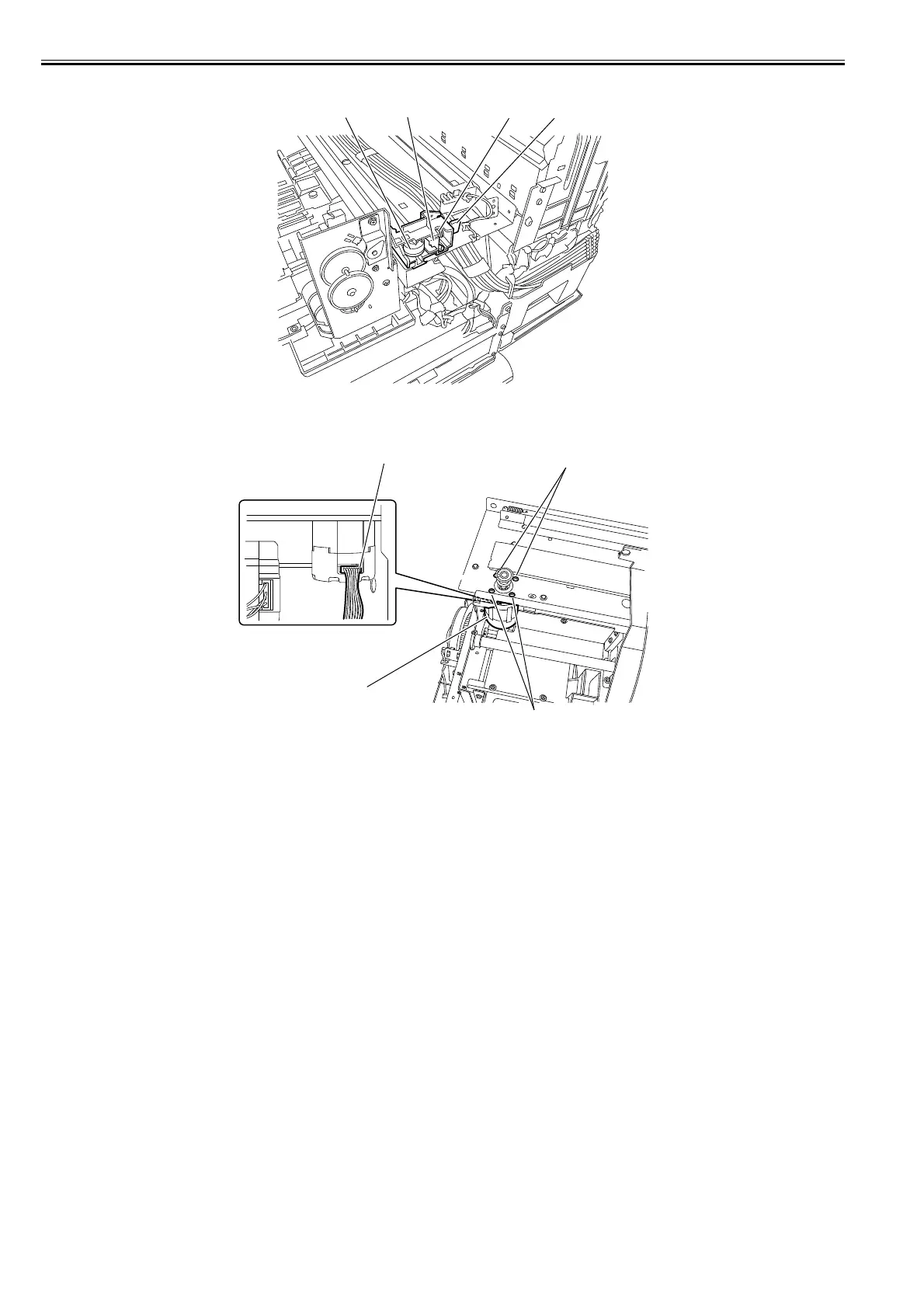

3) Twist off belt fixer knob [1] to loosen the carriage belt. Remove spring [2], guide [3] and pulley [4].
F-4-35
4) Release the carriage belt from the carriage motor pulley.
5) Remove connector [1] and four screws [2] to remove carriage motor [3].
F-4-36
[1][2]
[4]
[3]
[1]
[2]
[2]
[3]
