b) NOZZLE 1

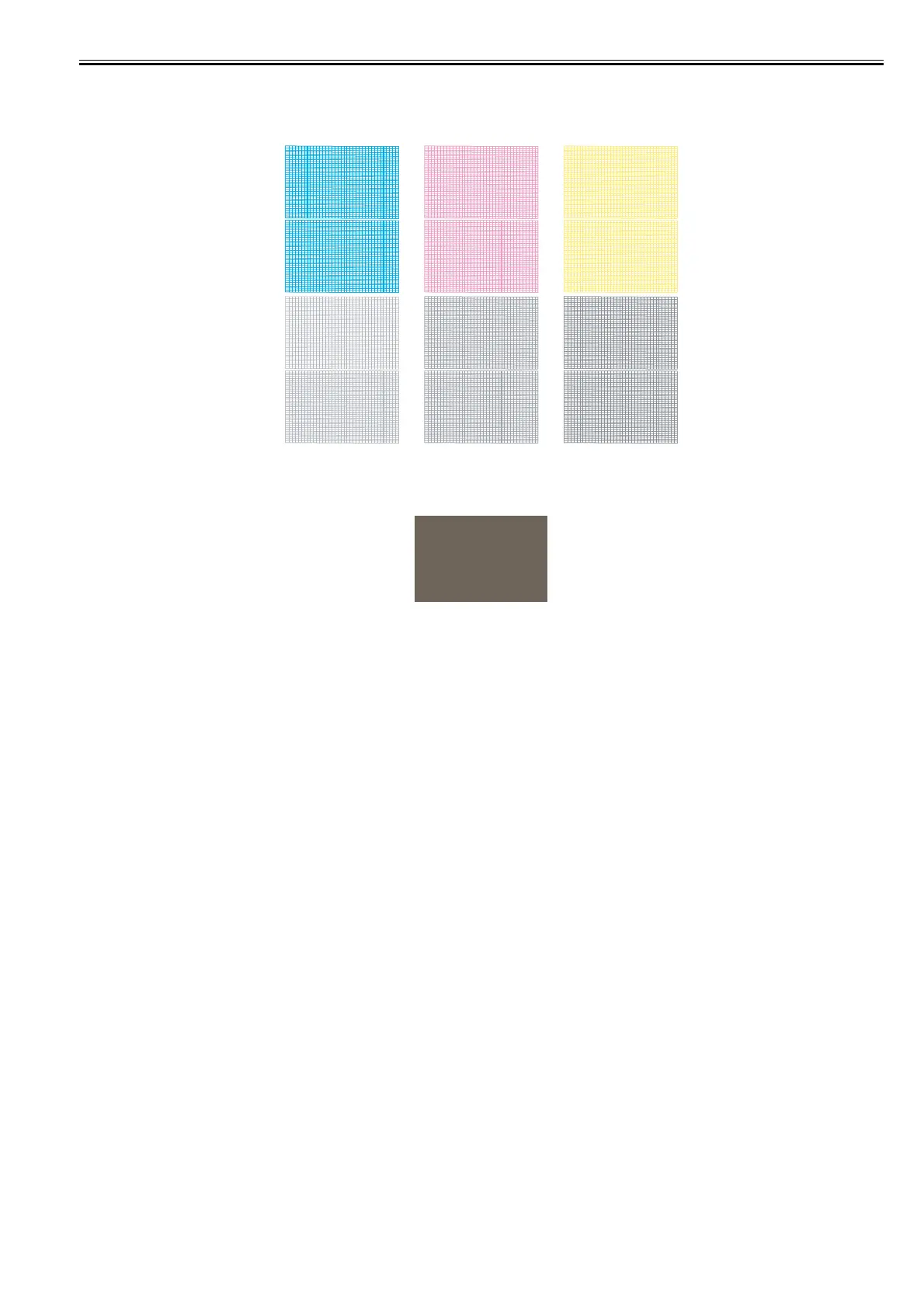

A sample printout that is produced by executing [SERVICE MODE]> [ADJUST]> [PRINT PATTERN]> [NOZZLE 1] is shown below.
F-7-2
c) OPTICAL AXIS
A sample printout that is produced by executing [SERVICE MODE]> [ADJUST]> [PRINT PATTERN]> [OPTICAL AXIS] is shown below.
F-7-3
Nozzle Check Pattern SERVICE
